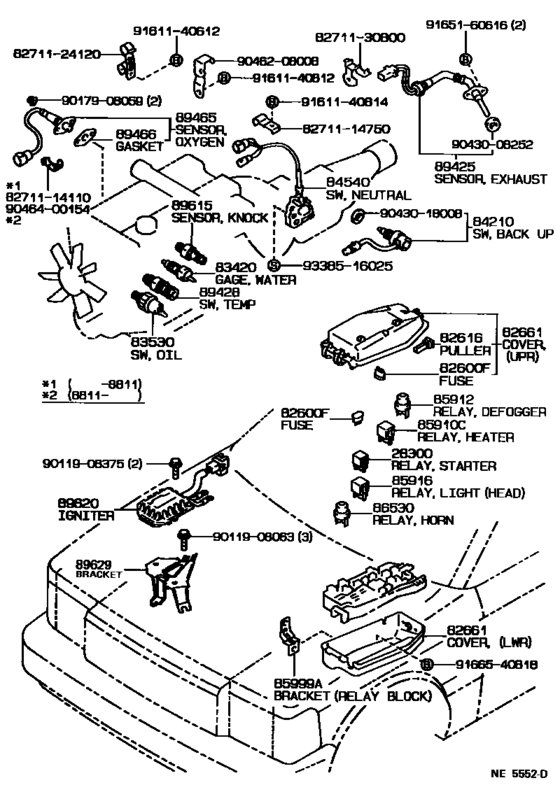

Switch & Relay & Computer ([09.1988 - ] (8809- )GS13#..HTWC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1988 - 1991
- Sales region
- Japan
- Frame
- GS130
- grade
- DLX
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.1988
- To
- 10.1991
- Gear Shift Type
- 4FC
- Body Shape
- NOB
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-16010
Relay Assy, Starter
[09.1987 - 08.1989] 1GE,1GFE..GS131;1GE,1GFE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SAL EX,SDX,SPE,STD |
28300-16010 |
— | ||
|
82600F
|
82600F
90982-09001 Fuse, Fuse Block[09.1988 - 08.1989] GS130,131..HTWC ５Ａ |
90982-09001 |
from US $1.05 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[09.1987 - 08.1989] GS13#,LS13#,MS13#,YS130 １５Ａ |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[09.1987 - 12.1989] GS13#,LS13#,MS13#,UZS131,YS130 ７．５Ａ |
90982-09005 |
from US $1.09 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
82616-12010 |
from US $3.04 |
||
|
82661
|
82661
82662-30050
Cover, Relay Block, No.1
[09.1987 - 08.1989] GS13#,MS135,137..EFI,HTWC,TWC UPPER |
82662-30050 |
— | ||
|
82661
|
82661
82662-30051 Cover, Relay Block, No.1[08.1989 - 10.1991] UZS131..4HC;GS13#,JZS13#,MS13#..HTWC,TWC UPPER |
82662-30051 |
US $62.17 |
||
|
82661
|
82661
82663-30020 Cover, Relay Block, No.1[09.1987 - 10.1991] UZS131..4HC;GS13#,JZS13#,LS13#,MS135,137..DSL,EFI,HTWC,SPC,TD,TDE,TWC LOWER |
82663-30020 |
US $115.02 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,YS130 |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-30050
Switch Assy, Oil Pressure (For Engine)
[09.1988 - 04.1991] GS13#,MS13# |
83530-30050 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[09.1988 - 04.1991] GS13#,MS13# |
83530-60050 |
from US $30.54 |
||
|
83530
|
83530
83530-30051
Switch Assy, Oil Pressure (For Engine)
[04.1991 - 10.1991] GS13#,MS13# |
83530-30051 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[04.1991 - 10.1991] GS13#,MS13# |
83530-60050 |
from US $30.54 |
||
|
84540
|
84540
84540-14130 Switch Assy, Neutral Start[09.1987 -] GS130,131,LS13#,MS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC,TWLPG) |
84540-14130 |
US $334.88 |
||
| replacement | |||||
|
84540
|
84540
84540-22171
Switch Assy, Neutral Start
[09.1987 -] GS130,131,LS13#,MS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC,TWLPG) |
84540-22171 |
— | ||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
90987-04002 |
from US $25.17 |
||
|
85912
|
85912
90987-02004 Relay Assy, Starter[09.1987 - 10.1991] GS136,LS136..DLX,SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
85912
|
85912
909870200483 [09.1987 - 10.1991] GS136,LS136..DLX,SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[09.1987 - 08.1989] GS13#,LS13#,MS13#,YS130 TAIL LAMP; GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL CORNERING; GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS13#..ROY ,ROYG,SALEX,SDX,SPE,SSL FRONT FOG LAMP |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
85916
|
85916
909870200483 [09.1987 - 08.1989] GS13#,LS13#,MS13#,YS130 TAIL LAMP; GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL CORNERING; GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS13#..ROY ,ROYG,SALEX,SDX,SPE,SSL FRONT FOG LAMP |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-02006 Relay[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
90987-02006 |
from US $30.99 |
||
|
85916
|
85916
90987-02008 Relay, Defogger[08.1989 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TAIL LAMP; GS130..SED..SDX;GS130..ROY,SALEX;GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL ,SALEX,SDX,SPE,SSL FRONT FOG LAMP |
90987-02008 |
US $57.08 |
||
|
85999A
|
85999A
85999-30250 Bracket, Relay, No.2[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE UPPER |
85999-30250 |
US $12.38 |
||
|
85999A
|
85999A
85999-30260 Bracket, Relay, No.2[09.1987 - 08.1989] GS13#,LS13#,MS13#,YS130 RH COWL SIDE LOWER |
85999-30260 |
US $12.52 |
||
|
85999A
|
85999A
85999-30261 Bracket, Relay, No.2[08.1989 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE LOWER |
85999-30261 |
US $6.99 |
||
|
85999A
|
85999A
85999-30280 Bracket, Relay, No.2[09.1987 - 03.1990] GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
85999-30280 |
US $68.72 |
||
| replacement | |||||
|
85999A
|
85999A
85999-30281 Bracket, Relay, No.2[09.1987 - 03.1990] GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
85999-30281 |
US $68.43 |
||
|
85999A
|
85999A
85999-30281 Bracket, Relay, No.2[03.1990 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
85999-30281 |
US $68.43 |
||
|
85999A
|
85999A
85999-30290 Bracket, Relay, No.2[08.1988 - 10.1991] GS13#,JZS13#,LS130,131,MS13#,YS130..DSL,EFI,HTWC,LPEFI,LPG,SPC,TD,TDE,TWC E/G RELAY BLOCK |
85999-30290 |
US $5.24 |
||
|
86530
|
86530
90987-02004 Relay Assy, Starter[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
86530
|
86530
909870200483 [09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
909870200483 |
US $53.75 |
||
|
89425
|
89425
89425-39135 Sensor, Exhaust Gas Temperature[09.1987 - 08.1989] GS130,131,MS135,137 |
89425-39135 |
US $299.94 |
||
| replacement | |||||
|
89425
|
89425
89425-39285 Sensor, Exhaust Gas Temperature[09.1987 - 08.1989] GS130,131,MS135,137 |
89425-39285 |
US $301.39 |
||
|
89425
|
89425
89425-39285 Sensor, Exhaust Gas Temperature[08.1989 - 10.1991] GS13#,JZS13#,MS13#,UZS131 |
89425-39285 |
US $301.39 |
||
|
89428
|
89428
89428-22050 Switch, Temperature[09.1988 - 10.1991] GS130,131..ATM..HTWC |
89428-22050 |
US $70.18 |
||
|
89465
|
89465
89465-29175 Sensor, Oxygen[09.1987 - 07.1989] GS130,131..HTWC,TWC |
89465-29175 |
US $136.86 |
||
| replacement | |||||
|
89465
|
89465
89465-29176
Sensor, Oxygen
[09.1987 - 07.1989] GS130,131..HTWC,TWC |
89465-29176 |
— | ||
|
89465
|
89465
89465-29176
Sensor, Oxygen
[07.1989 - 10.1991] GS13#..HTWC,TWC |
89465-29176 |
— | ||
|
89466
|
89466
89466-30030 Gasket, Oxygen Sensor[07.1989 - 10.1991] GS13#..EFI,HTWC,TWC |
89466-30030 |
US $13.10 |
||
|
89466
|
89466
89466-32010 Gasket, Oxygen Sensor[09.1987 - 07.1989] GS13#..EFI,HTWC,TWC |
89466-32010 |
US $10.48 |
||
| replacement | |||||
|
89466
|
89466
89466-30030 Gasket, Oxygen Sensor[09.1987 - 07.1989] GS13#..EFI,HTWC,TWC |
89466-30030 |
US $13.10 |
||
|
89615
|
89615
89615-20030 Sensor, Knock Control[07.1991 - 10.1991] GS13#..HTWC ＴＯＹＯＴＡ |
89615-20030 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[07.1991 - 10.1991] GS13#..HTWC ＴＯＹＯＴＡ |
89615-32030 |
from US $198.14 |
||
|
89615
|
89615
89615-30020 Sensor, Knock Control[09.1987 - 03.1989] GS130,131,MS135,137..HTWC,TWC |
89615-30020 |
US $212.16 |
||
|
89615
|
89615
89615-33010 Sensor, Knock Control[07.1991 - 10.1991] GS13#..HTWC ＭＡＴＳＵＳＨＩＴＡ |
89615-33010 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[07.1991 - 10.1991] GS13#..HTWC ＭＡＴＳＵＳＨＩＴＡ |
89615-32030 |
from US $198.14 |
||
|
89615
|
89615
89615-33020 Sensor, Knock Control[07.1991 - 08.1991] GS13#..HTWC ＮＩＰＰＯＮＤＥＮＳＯ |
89615-33020 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[07.1991 - 08.1991] GS13#..HTWC ＮＩＰＰＯＮＤＥＮＳＯ |
89615-32030 |
from US $198.14 |
||
|
89620
|
89620
89620-10100
Igniter Assy
[09.1988 - 10.1991] GS13#..HTWC |
89620-10100 |
— | ||
|
89629
|
89629
89629-30020 Bracket, Igniter Assy[09.1988 - 10.1991] GS13#..HTWC |
89629-30020 |
US $35.53 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
8271114750
|
8271114750
82711-14750 Wire, Fuse To Fuse(for Combustion Heater) |
82711-14750 |
US $5.10 |
||
|
8271124120
|
8271124120
82711-24120 Wire, Fuse To Fuse(for Combustion Heater) |
82711-24120 |
US $13.10 |
||
|
8271130800
|
8271130800
82711-30800 New Genuine Part |
82711-30800 |
US $5.97 |
||
| replacement | |||||
|
8271130800
|
8271130800
90461-08312 New Genuine Part |
90461-08312 |
US $4.89 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9011908375
|
9011908375
90119-08375 BOLT |
90119-08375 |
US $1.28 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9046400154
|
9046400154
90464-00154
New Genuine Part
|
90464-00154 |
— | ||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9166540818
|
9166540818
91665-40818 New Genuine Part |
91665-40818 |
US $2.18 |
||
| replacement | |||||
|
9166540818
|
9166540818
91661-60814 New Genuine Part |
91661-60814 |
US $1.02 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
