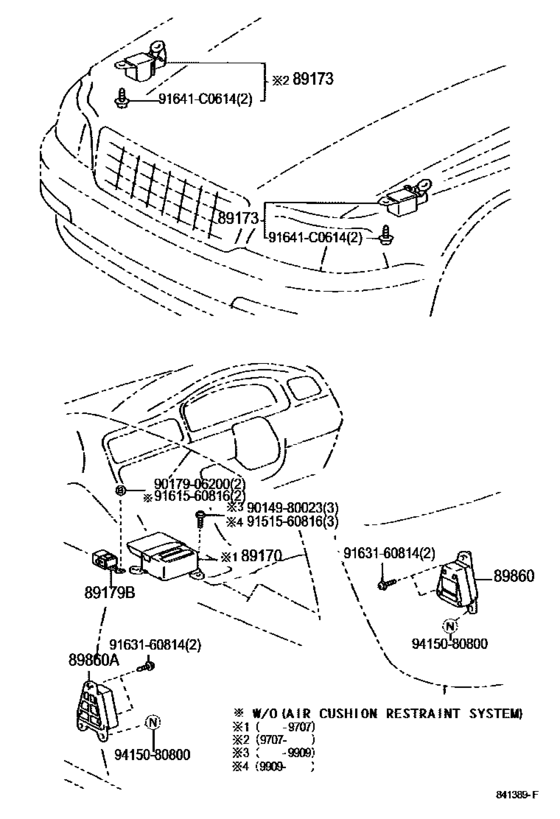

Air Bag ([08.1995 - ] (9508- )SED) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 2001
- Sales region
- Japan
- Frame
- GS151
- grade
- SPDLX
- body
- SED
- ENGINE
- 1GGPE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 02.2001
- Gear Shift Type
- 4FC
- Body Shape
- NOB
- Fuel Induction
- LPGTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89170
|
89170
89170-30100 Sensor Assy, Air Bag[12.1995 - 07.1997] GS151..LPGTE |
89170-30100 |
US $1,630.72 |
||
|
89170
|
89170
89170-30240 Sensor Assy, Air Bag[07.1997 - 09.1999] GS151..LPGTE |
89170-30240 |
US $1,514.24 |
||
|
89170
|
89170
89170-30320 Sensor Assy, Air Bag[09.1999 - 02.2001] GS151..LPGTE |
89170-30320 |
US $1,514.24 |
||
|
89173
|
89173
89173-39095 Sensor, Air Bag, Front[07.1997 - 08.2001] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 右側 |
89173-39095 |
US $179.09 |
||
|
89173
|
89173
89173-39105 Sensor, Air Bag, Front[07.1997 - 08.2001] GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 左側 |
89173-39105 |
US $179.09 |
||
|
89179B
|
89179B
89179-30010 Sensor, Collision Detection[08.1995 - 07.1997] GS151,JZS15#,LS151,UZS15# |
89179-30010 |
US $80.08 |
||
|
89860
|
89860
89860-30020 Sensor Assy, Side Air Bag, Rh[07.1997 - 09.1999] GS151,JZS151,153,155,LS151..SED |
89860-30020 |
US $872.14 |
||
|
89860A
|
89860A
89830-30020 Sensor Assy, Side Air Bag, Lh[07.1997 - 09.1999] GS151,JZS151,153,155,LS151..SED |
89830-30020 |
US $872.14 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.66 |
||
|
9014980023
|
9014980023
90149-80023 New Genuine Part |
90149-80023 |
US $1.60 |
||
|
9017906200
|
9017906200
90179-06200 New Genuine Part |
90179-06200 |
US $0.87 |
||
|
9151560816
|
9151560816
91515-60816 New Genuine Part |
91515-60816 |
US $1.89 |
||
| replacement | |||||
|
9151560816
|
9151560816
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
9161560816
|
9161560816
91615-60816 Bolt(For Oil Receiver Pipe) |
91615-60816 |
US $2.62 |
||
| replacement | |||||
|
9161560816
|
9161560816
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9163160814
|
9163160814
91631-60814 New Genuine Part |
91631-60814 |
US $1.43 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
||
