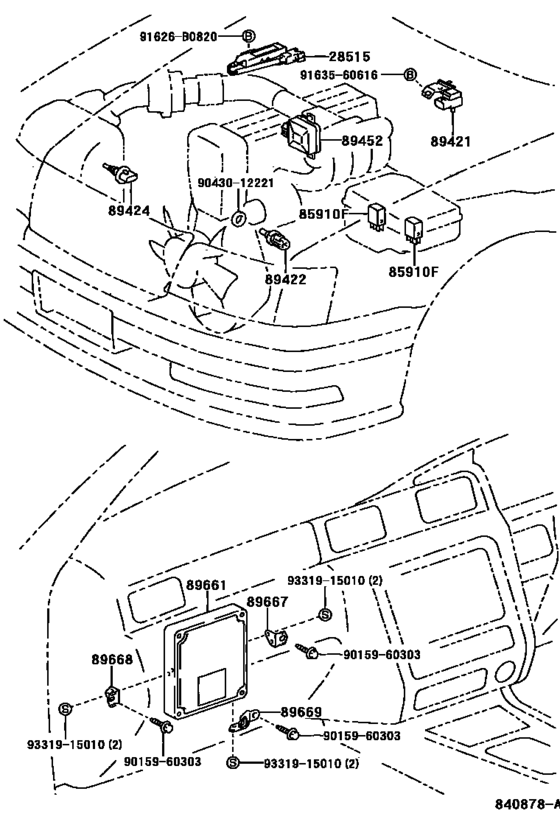

Electronic Fuel Injection System ([08.1995 - ] (9508- )GS151) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 2001
- Sales region
- Japan
- Frame
- GS151
- grade
- SPDLX
- body
- SED
- ENGINE
- 1GGPE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 02.2001
- Gear Shift Type
- 4FC
- Body Shape
- NOB
- Fuel Induction
- LPGTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515
|
28515
28515-73020 Resistor, Solenoid[12.1995 - 02.2001] 1GGPE..GS151 |
28515-73020 |
US $85.90 |
||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[08.1995 -] GS151,JZS151,155,157,UZS15# |
90987-02012 |
from US $24.99 |
||
|
89421
|
89421
89420-30120 Sensor Assy, Vacuum (For E.f.i.)[12.1995 - 02.2001] GS151..LPGTE |
89420-30120 |
US $126.67 |
||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1995 - 08.1998] GS151,JZS15#,UZS15# |
89422-20010 |
from US $29.03 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[08.1995 -] GS151,JZS15# |
89424-12010 |
from US $44.97 |
||
|
89452
|
89452
89452-30120 Sensor, Throttle Position (For E.f.i.)[12.1995 - 02.2001] GS151..LPGTE |
89452-30120 |
US $182 |
||
|
89661
|
89661
89661-3A100 Computer, Engine Control[12.1995 - 01.1998] GS151..LPGTE マーク ８９６６１−３Ａ１００ |
89661-3A100 |
US $1,572.48 |
||
|
89661
|
89661
89661-3A370 Computer, Engine Control[01.1998 - 02.2001] GS151..LPGTE マーク ８９６６１−３Ａ３７０ |
89661-3A370 |
US $1,587.04 |
||
|
89667
|
89667
89667-30200 Bracket, Engine Control Computer[08.1995 - 07.1997] GS151 |
89667-30200 |
US $4.08 |
||
|
89667
|
89667
89667-30220 Bracket, Engine Control Computer[07.1997 - 08.1998] GS151;JZS155..ROYT |
89667-30220 |
US $4.51 |
||
|
89668
|
89668
89668-30170 Bracket, Engine Control Computer, No.2[08.1995 -] GS151,JZS151,153 |
89668-30170 |
US $4.66 |
||
|
89669
|
89669
89669-30130 Bracket, Engine Control Computer, No.3[08.1995 - 07.1997] GS151 |
89669-30130 |
US $4.66 |
||
|
89669
|
89669
89669-30140 Bracket, Engine Control Computer, No.3[07.1997 - 08.1998] GS151 |
89669-30140 |
US $5.82 |
||
|
91626B0820
|
91626B0820
91626-B0820
New Genuine Part
|
91626-B0820 |
— | ||
| replacement | |||||
|
91626B0820
|
91626B0820
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.78 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $0.83 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.03 |
||
|
9163560616
|
9163560616
91635-60616
New Genuine Part
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.68 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
