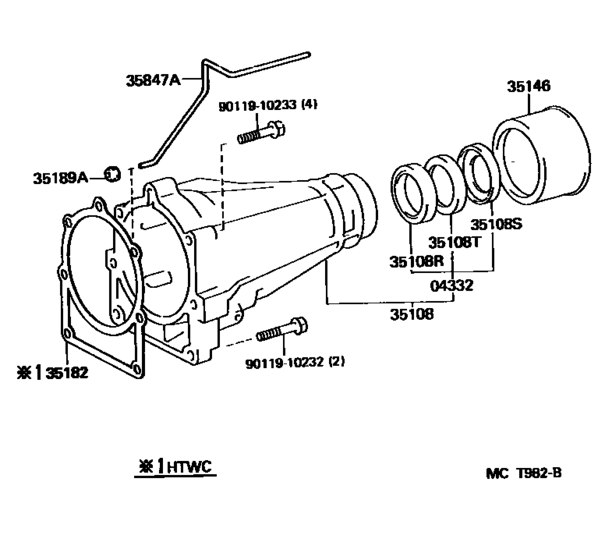

Extension Housing (Atm) ([08.1995 - 07.1997] A42DL,A43D (9508-9707)GS151..4FC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 2001
- Sales region
- Japan
- Frame
- GS151
- grade
- SPDLX
- body
- SED
- ENGINE
- 1GGPE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 02.2001
- Gear Shift Type
- 4FC
- Body Shape
- NOB
- Fuel Induction
- LPGTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04332
|
04332
04332-30030 Seal Kit, Oil(For Automatic Extention Housing)[08.1995 - 07.1997] GS151..4FC |
04332-30030 |
from US $13.08 |
||
|
35108
|
35108
35108-30200 Housing Sub-Assy, Extension (Atm)[09.1995 - 08.1998] GS151..4FC |
35108-30200 |
US $377.10 |
||
|
35108R
|
35108R
90311-38032 Seal, Oil(For Manual Transmission Extension Housing)[08.1995 -] GS151..4FC |
90311-38032 |
from US $7.17 |
||
|
35108S
|
35108S
33145-30010 Retainer, Extension Housing Dust Seal(Mtm)[08.1995 - 08.1998] GS151..4FC |
33145-30010 |
from US $2.30 |
||
|
35108T
|
35108T
90303-38010 Seal, Dust(For Manual Transmission Extension Housing)[08.1995 -] GS151..4FC |
90303-38010 |
from US $1.91 |
||
|
35146
|
35146
33146-30020 Deflector, Extension Housing Dust(Mtm)[08.1995 - 08.1998] GS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
33146-30020 |
from US $17.74 |
||
|
35189A
|
35189A
35189-30010 Gasket, Extension Housing Bush Apply Tube[08.1995 - 07.1997] GS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
35189-30010 |
US $5.77 |
||
|
35847A
|
35847A
35847-30020 Tube, Extension Housing Bush Apply[08.1995 - 07.1997] GS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
35847-30020 |
US $5.42 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910233
|
9011910233
90119-10233 New Genuine Part |
90119-10233 |
US $1.05 |
