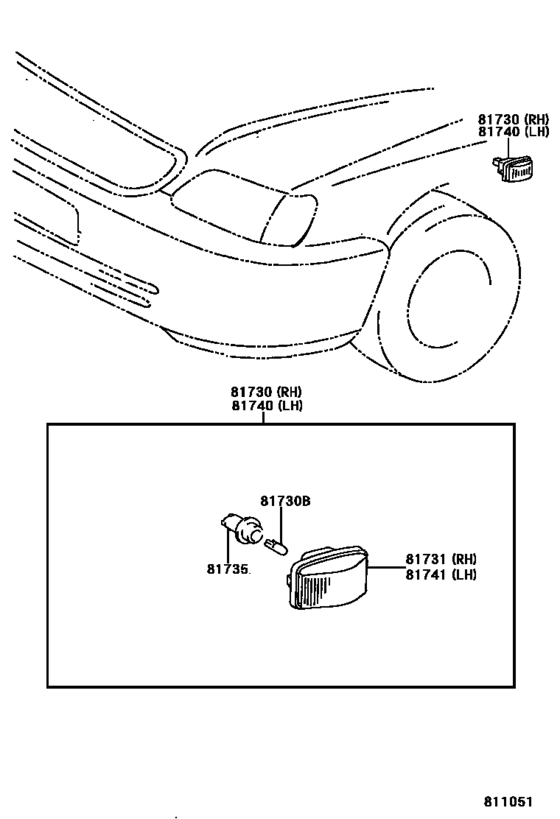

Side Turn Signal Lamp & Outer Mirror Lamp ([08.1999 - ] (9908- )SED) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 2001
- Sales region
- Japan
- Frame
- GS151
- grade
- SPDLX
- body
- SED
- ENGINE
- 1GGPE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 02.2001
- Gear Shift Type
- 4FC
- Body Shape
- NOB
- Fuel Induction
- LPGTE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81730
|
81730
81730-50090 Lamp Assy, Side Turn Signal, Rh[09.1999 -] GS151,JZS15# |
81730-50090 |
US $29.94 |
||
|
81730B
|
81730B
99132-12050 Bulb (12V 5W)[09.1999 -] GS151,JZS15# １２Ｖ ５Ｗ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81730B
|
81730B
90080-81053 Bulb(For Clearance Lamp)[09.1999 -] GS151,JZS15# １２Ｖ ５Ｗ |
90080-81053 |
US $1.01 |
||
|
81731
|
81731
81731-50090 Lens, Side Turn Signal Lamp, Rh[09.1999 -] GS151,JZS15# |
81731-50090 |
from US $18.93 |
||
|
81735
|
81735
90075-99012 Socket And Wire, License Plate Lamp[09.1999 -] GS151,JZS15# |
90075-99012 |
from US $5.73 |
||
|
81740
|
81740
81730-50090 Lamp Assy, Side Turn Signal, Rh[09.1999 -] GS151,JZS15# |
81730-50090 |
US $29.94 |
||
|
81741
|
81741
81731-50090 Lens, Side Turn Signal Lamp, Rh[09.1999 -] GS151,JZS15# |
81731-50090 |
from US $18.93 |
||
