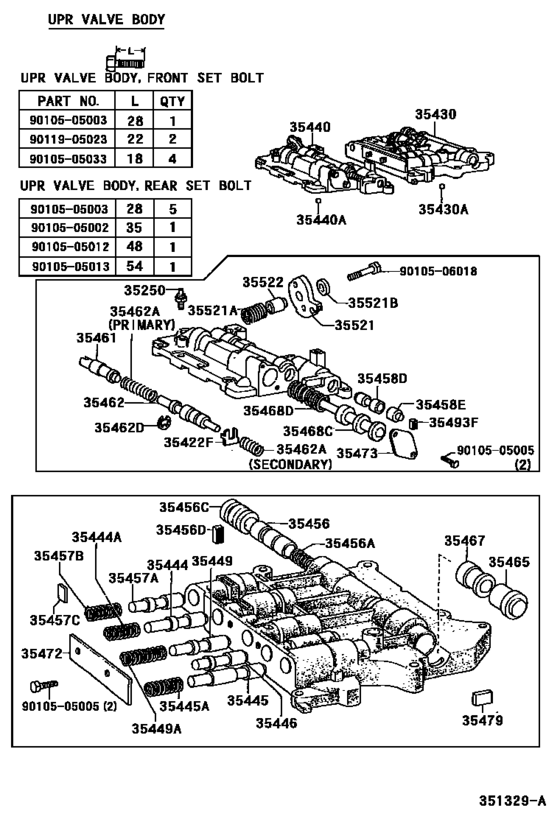

Valve Body & Oil Strainer (Atm) ([12.1995 - ] A43D (9512- )LPGTE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 2001
- Sales region
- Japan
- Frame
- GS151
- grade
- SPDLX
- body
- SED
- ENGINE
- 1GGPE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 02.2001
- Gear Shift Type
- 4FC
- Body Shape
- NOB
- Fuel Induction
- LPGTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35250
|
35250
35250-30010 Body Assy, Check Ball[12.1995 - 01.2001] GS151..LPGTE |
35250-30010 |
US $16.45 |
||
|
35422F
|
35422F
35422-22010 Stopper, Valve Vibrating[08.1995 - 08.1998] GS151..4FC |
35422-22010 |
US $3.49 |
||
|
35430
|
35430
35430-30190 Body Assy, Rear Upper Valve[12.1995 - 02.2001] GS151..LPGTE |
35430-30190 |
US $422.24 |
||
|
35430A
|
35430A
35495-22020 Ball (For Transfer Upper Valve Body)[08.1995 - 07.1997] GS151..4FC 外径＝５．５３５，ラバー |
35495-22020 |
US $4.66 |
||
|
35430A
|
35430A
90360-06023 Ball (For Rear Upper Valve Body)[08.1995 - 07.1997] GS151..4FC 外径＝５．５６，ＳＴＥＥＬ |
90360-06023 |
US $2.18 |
||
|
35440
|
35440
35440-30150 Body Assy, Front Upper Valve[12.1995 - 02.2001] GS151..LPGTE |
35440-30150 |
US $310.13 |
||
|
35440A
|
35440A
35495-22020 Ball (For Transfer Upper Valve Body)[12.1995 - 01.2001] GS151..LPGTE 外径＝５．５３５，ラバー |
35495-22020 |
US $4.66 |
||
|
35444
|
35444
35444-22010 Valve, Intermediate Modulator[08.1995 - 07.1997] GS151..4FC |
35444-22010 |
US $11.36 |
||
|
35444A
|
35444A
90501-11009 Spring, Compression (For Intermediate Modulator Valve)[08.1995 - 07.1997] GS151..4FC |
90501-11009 |
US $2.91 |
||
|
35445
|
35445
35445-22010 Valve, Low Modulator[08.1995 - 07.1997] GS151..4FC |
35445-22010 |
US $12.67 |
||
|
35445A
|
35445A
90501-08725
Spring, Compression (For Intermediate Modulator Valve)
[08.1995 - 07.1997] GS151..4FC |
90501-08725 |
— | ||
|
35446
|
35446
35446-20010 Valve, Governor Modulator[08.1995 - 07.1997] GS151..4FC |
35446-20010 |
US $9.46 |
||
|
35449
|
35449
35447-22010 Valve, Reverse Clutch Sequence[08.1995 - 07.1997] GS151..4FC |
35447-22010 |
US $9.61 |
||
|
35449A
|
35449A
90501-12726
Spring, Compression (For Reverse Clutch Sequence Valve)
[12.1995 - 01.2001] GS151..LPGTE |
90501-12726 |
— | ||
|
35456
|
35456
35456-22010
Valve, 2-3 Shift
[08.1995 - 07.1997] GS151..4FC |
35456-22010 |
— | ||
|
35456A
|
35456A
90501-08724
Spring, Compression (For 2-3 Shift Valve)
[08.1995 - 07.1997] GS151..4FC |
90501-08724 |
— | ||
|
35456C
|
35456C
35452-22010
Plug (For 2-3 Shift Valve)
[08.1995 - 07.1997] GS151..4FC |
35452-22010 |
— | ||
|
35456D
|
35456D
35493-22020 Seat, Plug (For Lock Up Relay Valve)[08.1995 - 07.1997] GS151..4FC |
35493-22020 |
US $2.48 |
||
|
35457A
|
35457A
35457-22010 Valve, Detent Regulator[08.1995 - 07.1997] GS151..4FC |
35457-22010 |
US $12.67 |
||
|
35457B
|
35457B
90501-09739 Spring, Compression (For Detent Regulator Valve)[08.1995 - 07.1997] GS151..4FC |
90501-09739 |
US $3.06 |
||
|
35457C
|
35457C
35438-22020 Seat (For Direct Clutch Modulator Valve Plug)[08.1995 - 07.1997] GS151..4FC |
35438-22020 |
US $2.48 |
||
|
35458D
|
35458D
35458-22010 Valve, Cut Back[08.1995 - 07.1997] GS151..4FC |
35458-22010 |
US $13.54 |
||
|
35458E
|
35458E
35459-22010 Plug (For Cut Back Valve)[08.1995 - 08.1998] GS151..4FC |
35459-22010 |
US $6.41 |
||
|
35461
|
35461
35408-30010 Plug Sub-Assy, Primary Down Shift[12.1995 - 01.2001] GS151..LPGTE |
35408-30010 |
US $26.50 |
||
|
35462
|
35462
35462-22011 Valve, Throttle[08.1995 - 08.1998] GS151..4FC |
35462-22011 |
US $34.80 |
||
|
35462A
|
35462A
90501-07680
Spring, Compression (For Throttle Valve)
[08.1995 - 07.1997] GS151..4FC 長さ＝１９．２４,SECONDARY |
90501-07680 |
— | ||
|
35462A
|
35462A
90501-12077 Spring, Compression (For Primary Down Shift Plug)[08.1995 - 07.1997] GS151..4FC 長さ＝３９．７６,PRIMARY |
90501-12077 |
US $13.40 |
||
|
35462D
|
35462D
90523-06023 Ring, E (For Throttle Valve)[08.1995 - 08.1998] GS151..4FC |
90523-06023 |
US $1.46 |
||
|
35465
|
35465
35465-22010 Plug, Intermediate Shift Valve[08.1995 - 07.1997] GS151..4FC |
35465-22010 |
US $21.99 |
||
|
35467
|
35467
35467-22010 Valve, Intermediate Shift[08.1995 - 07.1997] GS151..4FC |
35467-22010 |
US $12.96 |
||
|
35468C
|
35468C
35468-30030 Valve, Secondary Regulator[12.1995 - 01.2001] GS151..LPGTE |
35468-30030 |
US $41.50 |
||
|
35468D
|
35468D
90501-18095 Spring, Compression (For Secondary Regulator Valve)[12.1995 - 01.2001] GS151..LPGTE |
90501-18095 |
US $5.82 |
||
|
35472
|
35472
35472-22010 Cover, Valve Body, No.2[08.1995 - 07.1997] GS151..4FC |
35472-22010 |
US $4.80 |
||
|
35473
|
35473
35473-22010 Cover, Transmission Valve Body[08.1995 - 08.1998] GS151..4FC |
35473-22010 |
US $9.61 |
||
|
35479
|
35479
35479-22010 Seat, Intermediate Shift Valve[08.1995 - 07.1997] GS151..4FC |
35479-22010 |
US $3.49 |
||
|
35493F
|
35493F
35493-22010 Seat (For Cut Back Valve)[12.1995 - 07.1997] GS151..LPGTE |
35493-22010 |
US $3.49 |
||
|
35521
|
35521
35521-30010 Cam, Throttle Valve[12.1995 - 02.2001] GS151..LPGTE |
35521-30010 |
US $26.21 |
||
|
35521A
|
35521A
90508-12331
Spring (For Throttle Valve Cam Return)
[08.1995 - 08.1998] GS151..4FC |
90508-12331 |
— | ||
|
35521B
|
35521B
90201-06472 Washer (For Throttle Valve Cam Set)[08.1995 - 07.1997] UZS15#;GS151,JZS15#,LS151..4FC..(LPGTE,TDE,TWC) |
90201-06472 |
US $1.46 |
||
|
35522
|
35522
35522-22010 Pin, Throttle Valve Cam[08.1995 - 09.1996] GS151,JZS15#,LS151,UZS15#..4FC |
35522-22010 |
US $10.34 |
||
|
9010505002
|
9010505002
90105-05002 New Genuine Part |
90105-05002 |
US $1.31 |
||
|
9010505003
|
9010505003
90105-05003 Bolt (For Pressure Regulator Valve No.2) |
90105-05003 |
US $1.75 |
||
| replacement | |||||
|
9010505003
|
9010505003
90119-05035
Bolt (For Pressure Regulator Valve No.2)
|
90119-05035 |
— | ||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010505012
|
9010505012
90105-05012 New Genuine Part |
90105-05012 |
US $1.60 |
||
|
9010505013
|
9010505013
90105-05013 New Genuine Part |
90105-05013 |
US $1.60 |
||
|
9010505033
|
9010505033
90105-05033
New Genuine Part
|
90105-05033 |
— | ||
|
9010506018
|
9010506018
90105-06018 Bolt (For Throttle Valve Cam Set) |
90105-06018 |
US $0.96 |
||
|
9011905023
|
9011905023
90119-05023 New Genuine Part |
90119-05023 |
US $1.02 |
||
