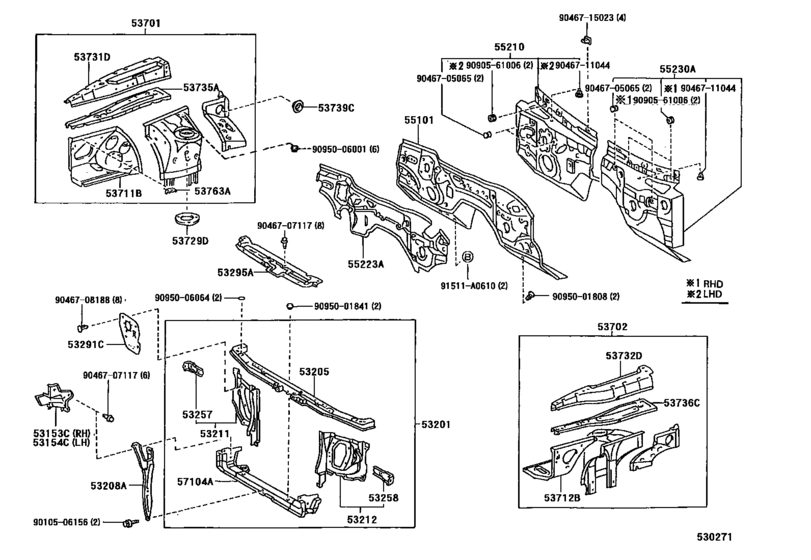

Front Fender Apron & Dash Panel ([12.1995 - ] (9512- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1997 - 1998
- Sales region
- General
- Frame
- GS151
- grade
- ROYEX
- body
- HT
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 07.1997
- To
- 08.1998
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53153C
|
53153C
53153-30080 Guide, Radiator Grille Side Air, Rh[12.1995 -] GS151,JZS155 |
53153-30080 |
US $10.63 |
||
|
53154C
|
53154C
53154-30070
Guide, Radiator Grille Side Air, Lh
[12.1995 -] GS151,JZS155 |
53154-30070 |
— | ||
|
53201
|
53201
53201-30470
Support Sub-Assy, Radiator
[07.1997 -] GS151,JZS155..HT |
53201-30470 |
— | ||
|
53205
|
53205
53216-30908
Support Sub-Assy, Radiator, Upper
[12.1995 -] GS151,JZS155 |
53216-30908 |
— | ||
|
53208A
|
53208A
53209-30200 Support Sub-Assy, Hood Lock[12.1995 -] GS151,JZS155 |
53209-30200 |
US $35.38 |
||
|
53211
|
53211
53211-30904 Support, Radiator, Rh[07.1997 -] GS151,JZS155..HT |
53211-30904 |
US $75.71 |
||
|
53212
|
53212
53212-30902
Support, Radiator, Lh
[07.1997 -] GS151,JZS155..HT |
53212-30902 |
— | ||
|
53257
|
53257
53257-30020
Bracket, Front End Panel Mounting, Rh
[12.1995 -] GS151,JZS155 |
53257-30020 |
— | ||
|
53258
|
53258
53257-30020
Bracket, Front End Panel Mounting, Rh
[12.1995 -] GS151,JZS155 |
53257-30020 |
— | ||
|
53291C
|
53291C
53291-30090
Seal, Radiator Support To Frame
[07.1997 -] GS151,JZS155..HT |
53291-30090 |
— | ||
|
53295A
|
53295A
53293-30090
Deflector, Radiator Upper Air
[12.1995 -] GS151,JZS155 |
53293-30090 |
— | ||
|
53701
|
53701
53701-30881 Apron Sub-Assy, Front Fender, Rh[07.1997 -] GS151,JZS155 |
53701-30881 |
US $588.22 |
||
|
53702
|
53702
53702-30651 Apron Sub-Assy, Front Fender, Lh[07.1997 - 08.2001] GS151,JZS155 |
53702-30651 |
US $588.22 |
||
|
53711B
|
53711B
53711-30800 Apron, Front Fender, Front Rh[12.1995 -] GS151,JZS155 |
53711-30800 |
US $82.99 |
||
|
53712B
|
53712B
53712-30912
Apron, Front Fender, Front Lh
[12.1995 - 08.2001] GS151,JZS155 |
53712-30912 |
— | ||
|
53729D
|
53729D
53729-30040
Reinforcement, Front Spring Support, No.3
[07.1997 -] GS151,JZS155 |
53729-30040 |
— | ||
|
53731D
|
53731D
53731-30904 Member, Front Apron To Cowl Side, Upper Rh[07.1997 -] GS151,JZS155 |
53731-30904 |
US $88.82 |
||
|
53732D
|
53732D
53732-30903 Member, Front Apron To Cowl Side, Upper Lh[12.1995 - 08.2001] GS151,JZS155 |
53732-30903 |
US $88.82 |
||
|
53735A
|
53735A
53735-30060 Member, Front Apron To Cowl Side, Lower Rh[12.1995 -] GS151,JZS155 |
53735-30060 |
US $60.13 |
||
|
53736C
|
53736C
53736-30060 Member, Front Apron To Cowl Side, Lower Lh[12.1995 - 08.2001] GS151,JZS155 |
53736-30060 |
US $60.42 |
||
|
53739C
|
53739C
53739-30060 Seal, Front Fender Apron To Frame, Rear[12.1995 -] GS151,JZS155 |
53739-30060 |
US $4.66 |
||
|
53763A
|
53763A
53763-22020 Bracket, Air Cleaner Inlet Mounting[12.1995 -] GS151,JZS155 |
53763-22020 |
US $4.66 |
||
|
55101
|
55101
55101-3A210 Panel Sub-Assy, Dash[12.1995 -] GS151,JZS155..RHD |
55101-3A210 |
US $531.44 |
||
| replacement | |||||
|
55101
|
55101
55101-3A230 Panel Sub-Assy, Dash[12.1995 -] GS151,JZS155..RHD |
55101-3A230 |
US $532.90 |
||
|
55210
|
55210
55210-30230 Insulator Assy, Dash Panel[12.1995 - 08.1998] GS151,JZS155..RHD |
55210-30230 |
US $276.64 |
||
| replacement | |||||
|
55210
|
55210
55210-30330 Insulator Assy, Dash Panel[12.1995 - 08.1998] GS151,JZS155..RHD |
55210-30330 |
US $276.64 |
||
|
55223A
|
55223A
55223-30110 Insulator, Dash Panel, Outer[12.1995 -] GS151,JZS155..RHD |
55223-30110 |
US $94.64 |
||
|
55230A
|
55230A
55230-30010 Insulator Assy, Dash Panel, No.4[12.1995 - 08.1998] GS151,JZS155..RHD |
55230-30010 |
US $276.64 |
||
| replacement | |||||
|
55230A
|
55230A
55230-30100 Insulator Assy, Dash Panel, No.4[12.1995 - 08.1998] GS151,JZS155..RHD |
55230-30100 |
US $276.64 |
||
|
57104A
|
57104A
57104-30030
Member Sub-Assy, Front Cross
[12.1995 -] GS151,JZS155 |
57104-30030 |
— | ||
|
91511A0610
|
91511A0610
91511-A0610
Bolt (For Propeller Shaft Heat Insulator)
|
91511-A0610 |
— | ||
| replacement | |||||
|
91511A0610
|
91511A0610
91531-A0610 Bolt (For Propeller Shaft Heat Insulator) |
91531-A0610 |
US $0.96 |
||
|
9010506156
|
9010506156
90105-06156
New Genuine Part
|
90105-06156 |
— | ||
| replacement | |||||
|
9010506156
|
9010506156
91511-40608 New Genuine Part |
91511-40608 |
US $1.05 |
||
|
9046705065
|
9046705065
90467-05065 New Genuine Part |
90467-05065 |
US $2.62 |
||
|
9046707117
|
9046707117
90467-07117 Clip, Radiator Support To Frame |
90467-07117 |
from US $0.92 |
||
|
9046708188
|
9046708188
90467-08188 Clip, Radiator Support To Frame |
90467-08188 |
US $1.28 |
||
|
9046711044
|
9046711044
90467-11044 New Genuine Part |
90467-11044 |
US $3.20 |
||
|
9046715023
|
9046715023
90467-15023
CLIP
|
90467-15023 |
— | ||
|
9090561006
|
9090561006
90905-61006 New Genuine Part |
90905-61006 |
US $3.49 |
||
|
9095001808
|
9095001808
90950-01808 PLUG HOLE |
90950-01808 |
from US $1.76 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.76 |
||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
|
9095006064
|
9095006064
90950-06064 TAPESEAL |
90950-06064 |
from US $1.76 |
||
