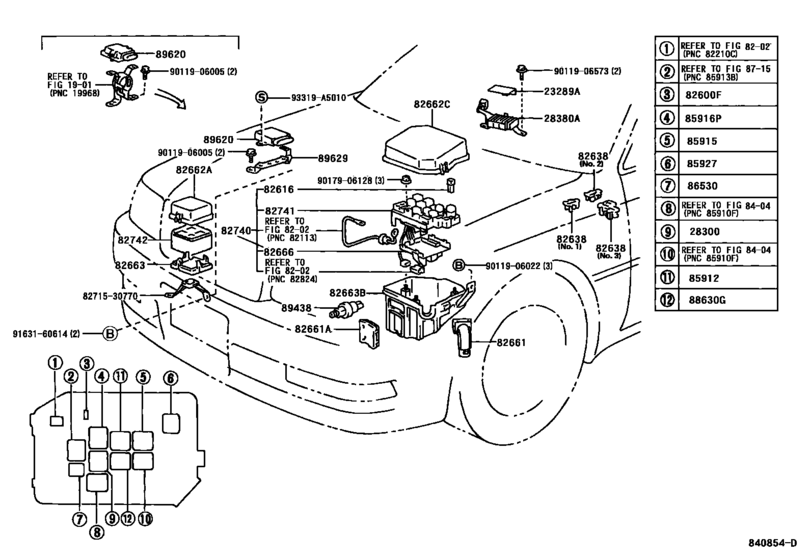

Switch & Relay & Computer ([12.1995 - ] ENGINE ROOM (9512- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1997 - 1998
- Sales region
- General
- Frame
- GS151
- grade
- ROYEX
- body
- HT
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 07.1997
- To
- 08.1998
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-46010 Relay Assy, Starter[12.1995 -] 1GFE,2JZGE..GS151,JZS155 |
28300-46010 |
from US $57.15 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[12.1995 -] GS151,JZS155 30A |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[12.1995 -] GS151,JZS155 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[12.1995 -] GS151,JZS155 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[12.1995 -] GS151,JZS155 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[12.1995 -] GS151,JZS155 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[12.1995 -] GS151,JZS155 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[12.1995 -] GS151,JZS155 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[12.1995 -] GS151,JZS155 |
82616-20010 |
from US $2.38 |
||
|
82638
|
82638
82638-30010 Retainer, Relay Block[12.1995 -] GS151,JZS155 NO.1 & NO.2 |
82638-30010 |
US $2.33 |
||
|
82638
|
82638
82638-30020 Retainer, Relay Block[12.1995 -] GS151,JZS155 NO.3 |
82638-30020 |
US $2.33 |
||
|
82661
|
82661
82661-30420 Cover, Relay Block, No.1[12.1995 -] GS151,JZS155 |
82661-30420 |
US $11.50 |
||
|
82661A
|
82661A
82661-30410 Cover, Relay Block, No.2[12.1995 -] GS151,JZS155 |
82661-30410 |
US $15.58 |
||
|
82662A
|
82662A
82662-30400 Cover, Relay Block, Upper, No.1[07.1997 -] GS151,JZS155 |
82662-30400 |
US $15.14 |
||
|
82662C
|
82662C
82662-30370 Cover, Relay Block, Upper, No.3[07.1997 - 09.1999] GS151,JZS155 |
82662-30370 |
US $74.26 |
||
| replacement | |||||
|
82662C
|
82662C
82662-30371 Cover, Relay Block, Upper, No.3[07.1997 - 09.1999] GS151,JZS155 |
82662-30371 |
US $39.31 |
||
|
82663
|
82663
82663-30110 Cover, Relay Block, Lower[12.1995 -] GS151,JZS155 |
82663-30110 |
US $20.82 |
||
|
82663B
|
82663B
82663-30100 Cover, Relay Block, Lower, No.3[12.1995 -] GS151,JZS155 |
82663-30100 |
US $125.22 |
||
|
82666
|
82666
82666-30410 Holder, Connector[12.1995 -] GS151,JZS155 |
82666-30410 |
US $27.37 |
||
|
82740
|
82740
82740-30121 Block Assy, Engine Room Relay[07.1997 - 08.1998] GS151 |
82740-30121 |
US $346.53 |
||
|
82742
|
82742
82742-30020 Block, Engine Room Relay, No.2[07.1997 -] GS151,JZS155 |
82742-30020 |
US $38.44 |
||
|
85912
|
85912
90987-02012 Relay, Ignition, No.1[07.1997 -] GS151,JZS155 |
90987-02012 |
from US $27.85 |
||
|
85916P
|
85916P
85916-30060 Relay, Light Control[07.1997 -] GS151,JZS155 |
85916-30060 |
from US $86.89 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[12.1995 -] GS151,JZS155 |
86530-20070 |
from US $12.54 |
||
|
88630G
|
88630G
90987-02012 Relay, Ignition, No.1[12.1995 -] GS151,JZS155 |
90987-02012 |
from US $27.85 |
||
|
89620
|
89620
89621-22040
Igniter Assy
[07.1997 - 08.1998] GS151 |
89621-22040 |
— | ||
|
93319A5010
|
93319A5010
93319-A5010 New Genuine Part |
93319-A5010 |
US $0.73 |
||
|
8271530770
|
8271530770
82715-30770 Bracket,wiring Harness Clamp |
82715-30770 |
US $9.61 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.08 |
||
| replacement | |||||
|
9011906022
|
9011906022
90080-11127 New Genuine Part |
90080-11127 |
US $2.73 |
||
|
9011906573
|
9011906573
90119-06573 New Genuine Part |
90119-06573 |
US $2.62 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.12 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
