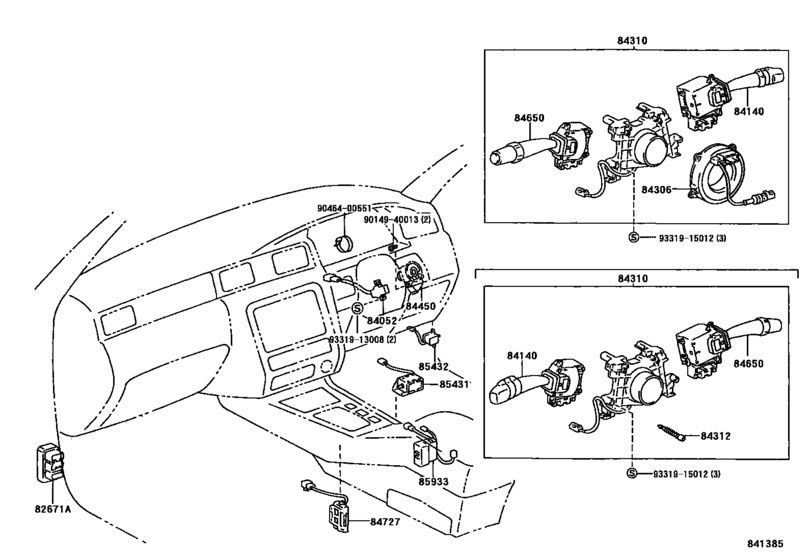

Switch & Relay & Computer ([12.1995 - ] IGNITION & COMBINATION SW (9512- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1997 - 1998
- Sales region
- General
- Frame
- GS151
- grade
- ROYEX
- body
- HT
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 07.1997
- To
- 08.1998
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82671A
|
82671A
82671-30330 Block, Junction[07.1997 - 09.1999] GS151,JZS155 |
82671-30330 |
US $43.83 |
||
|
84052
|
84052
84052-22040 Switch Assy, Un-Lock Warning[12.1995 -] GS151,JZS155..RHD |
84052-22040 |
US $28.97 |
||
| replacement | |||||
|
84052
|
84052
84052-35020 Switch Assy, Un-Lock Warning[12.1995 -] GS151,JZS155..RHD |
84052-35020 |
US $27.96 |
||
|
84140
|
84140
84140-30200 Switch Assy, Headlamp Dimmer[07.1997 - 08.1998] GS151 |
84140-30200 |
US $131.04 |
||
|
84306
|
84306
84306-30100 Cable Sub-Assy, Spiral[07.1997 -] GS151,JZS155..RHD |
84306-30100 |
US $281.01 |
||
| replacement | |||||
|
84306
|
84306
84306-60050 Cable Sub-Assy, Spiral[07.1997 -] GS151,JZS155..RHD |
84306-60050 |
from US $230.10 |
||
|
84310
|
84310
84310-3F070 Switch Assy, Turn Signal[07.1997 - 08.1998] GS151 |
84310-3F070 |
US $522.70 |
||
| replacements | |||||
|
84310
|
84310
84652-43021 Switch Assy, Windshield Wiper[07.1997 - 08.1998] GS151 |
84652-43021 |
US $131.72 |
||
|
84310
|
84310
84140-30200 Switch Assy, Headlamp Dimmer[07.1997 - 08.1998] GS151 |
84140-30200 |
US $131.04 |
||
|
84310
|
84310
84306-60050 Cable Sub-Assy, Spiral[07.1997 - 08.1998] GS151 |
84306-60050 |
from US $230.10 |
||
|
84310
|
84310
84319-30040 Housing, Steering Wheel Switch[07.1997 - 08.1998] GS151 |
84319-30040 |
US $38.29 |
||
|
84450
|
84450
84450-41010 Switch Assy, Ignition Or Starter[12.1995 -] GS151,JZS155..RHD |
84450-41010 |
US $76.96 |
||
|
84650
|
84650
84652-30300 Switch Assy, Windshield Wiper[12.1995 -] GS151,JZS155..RHD |
84652-30300 |
US $132.50 |
||
| replacement | |||||
|
84650
|
84650
84652-43021 Switch Assy, Windshield Wiper[12.1995 -] GS151,JZS155..RHD |
84652-43021 |
US $131.72 |
||
|
84727
|
84727
84727-30070 Switch, Shift Lock Control[07.1997 -] GS151,JZS155..HT |
84727-30070 |
US $48.48 |
||
| replacement | |||||
|
84727
|
84727
84727-30080 Switch, Shift Lock Control[07.1997 -] GS151,JZS155..HT |
84727-30080 |
US $48.48 |
||
|
85431
|
85431
85431-30050 Solenoid, Shift Lock[07.1997 - 08.1997] GS151,JZS155..HT |
85431-30050 |
US $64.06 |
||
|
85431
|
85431
85431-30070 Solenoid, Shift Lock[08.1997 -] GS151,JZS155..HT |
85431-30070 |
US $64.06 |
||
| replacement | |||||
|
85431
|
85431
85431-30050 Solenoid, Shift Lock[08.1997 -] GS151,JZS155..HT |
85431-30050 |
US $64.06 |
||
|
85432
|
85432
85432-22030 Solenoid, Key Inter Lock[07.1997 -] GS151,JZS155..HT |
85432-22030 |
US $53.29 |
||
| replacement | |||||
|
85432
|
85432
85432-40010 Solenoid, Key Inter Lock[07.1997 -] GS151,JZS155..HT |
85432-40010 |
US $67.44 |
||
|
85933
|
85933
85933-30100 Computer, Shift Lock Control[07.1997 -] GS151,JZS155..HT |
85933-30100 |
US $126.67 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.12 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
