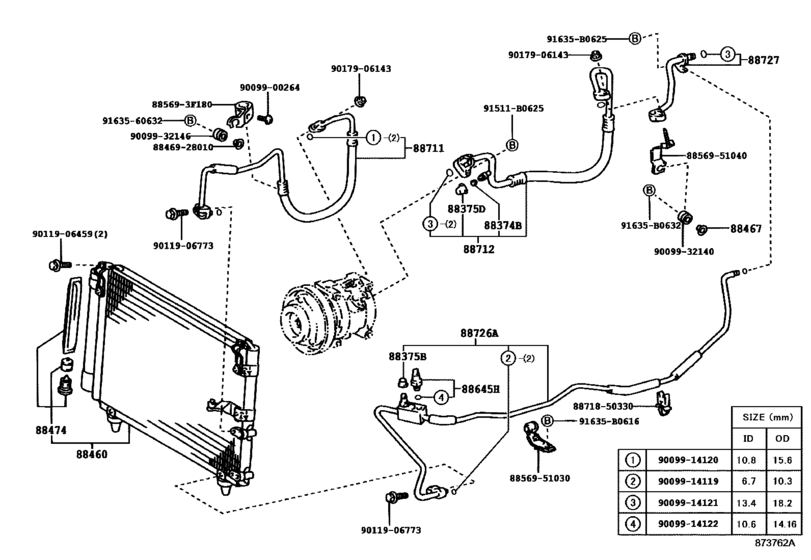

Heating & Air Conditioning - Cooler Piping ([04.2000 - 08.2001] ﾌﾛﾝﾄ (0004-0108)GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ROYEX
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 04.2000
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
88374-30010 |
from US $3.12 |
||
|
88375B
|
88375B
88375-30280 Cap, Service Valve (For Cooler Pipe)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
88375-30280 |
from US $0.98 |
||
|
88375D
|
88375D
88375-30290 Cap, Service Valve (For Cooler Pipe)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
88375-30290 |
from US $0.88 |
||
|
88460
|
88460
88460-30830 Condenser Assy, Cooler[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
88460-30830 |
US $693.06 |
||
|
88467
|
88467
88467-14070
Insulator (For Power Take-Off Cable Bracket)
[09.1999 - 08.2001] GS171,JZS17# |
88467-14070 |
— | ||
|
88474
|
88474
88474-47010 Dryer, Cooler[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
88474-47010 |
from US $34.85 |
||
|
88645H
|
88645H
88645-22080 Switch, Pressure No.1[04.2000 - 08.2001] GS171 |
88645-22080 |
US $53.46 |
||
|
88711
|
88711
88711-3A490 Hose, Cooler Refrigerant Discharge, No.1[04.2000 - 08.2001] GS171 |
88711-3A490 |
US $179.09 |
||
| replacement | |||||
|
88711
|
88711
88703-30840 Hose Sub-Assy, Discharge[04.2000 - 08.2001] GS171 |
88703-30840 |
US $206.75 |
||
|
88712
|
88712
88712-3A890 Hose, Cooler Refrigerant Suction, No.1[04.2000 - 08.2001] GS171 |
88712-3A890 |
US $231.50 |
||
|
88726A
|
88726A
88726-3K530 Pipe, Cooler Refrigerant Liquid, A[04.2000 - 08.2001] GS171 ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
88726-3K530 |
US $225.68 |
||
|
88726A
|
88726A
88726-3K550 Pipe, Cooler Refrigerant Liquid, A[04.2000 - 08.2001] GS171 |
88726-3K550 |
US $154.34 |
||
|
88727
|
88727
88727-3F200 Tube, Suction, No.2[09.1999 - 08.2001] GS171,JZS171,175..SED ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
88727-3F200 |
US $198.02 |
||
| replacement | |||||
|
88727
|
88727
88707-30630 Pipe Sub-Assy, Suction[09.1999 - 08.2001] GS171,JZS171,175..SED ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
88707-30630 |
US $218.40 |
||
|
88727
|
88727
88727-51020 Pipe, Cooler Refrigerant Suction, A[09.1999 - 08.2001] GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
88727-51020 |
US $80.08 |
||
|
91511B0625
|
91511B0625
91511-B0625
Bolt(For Cylinder Head Cover)
|
91511-B0625 |
— | ||
| replacement | |||||
|
91511B0625
|
91511B0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.78 |
||
|
91635B0616
|
91635B0616
91635-B0616 New Genuine Part |
91635-B0616 |
US $1.46 |
||
| replacement | |||||
|
91635B0616
|
91635B0616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
91635B0625
|
91635B0625
91635-B0625 New Genuine Part |
91635-B0625 |
US $1.46 |
||
| replacement | |||||
|
91635B0625
|
91635B0625
91631-B0625 BOLT W-WASHER |
91631-B0625 |
from US $0.66 |
||
|
91635B0632
|
91635B0632
91635-B0632 New Genuine Part |
91635-B0632 |
US $1.75 |
||
| replacement | |||||
|
91635B0632
|
91635B0632
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
885693F180
|
885693F180
88569-3F180
Clamp (for Cooler Relay)
|
88569-3F180 |
— | ||
|
8846928010
|
8846928010
88469-28010
Collar, Condenser Bracket, No.1
|
88469-28010 |
— | ||
|
8856951030
|
8856951030
88569-51030
Clamp (for Cooler Relay)
|
88569-51030 |
— | ||
|
8856951040
|
8856951040
88569-51040
Clamp (for Cooler Relay)
|
88569-51040 |
— | ||
|
8871850330
|
8871850330
88718-50330
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-50330 |
— | ||
|
9009900264
|
9009900264
90099-00264
SCREW
|
90099-00264 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9009914122
|
9009914122
90099-14122 O-RING |
90099-14122 |
from US $1.21 |
||
|
9009932140
|
9009932140
90099-32140
New Genuine Part
|
90099-32140 |
— | ||
|
9009932146
|
9009932146
90099-32146
New Genuine Part
|
90099-32146 |
— | ||
|
9011906459
|
9011906459
90119-06459 New Genuine Part |
90119-06459 |
US $1.51 |
||
|
9011906773
|
9011906773
90119-06773 Bolt |
90119-06773 |
US $1.08 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.80 |
||
|
9163560632
|
9163560632
91635-60632 New Genuine Part |
91635-60632 |
US $1.75 |
||
| replacement | |||||
|
9163560632
|
9163560632
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
