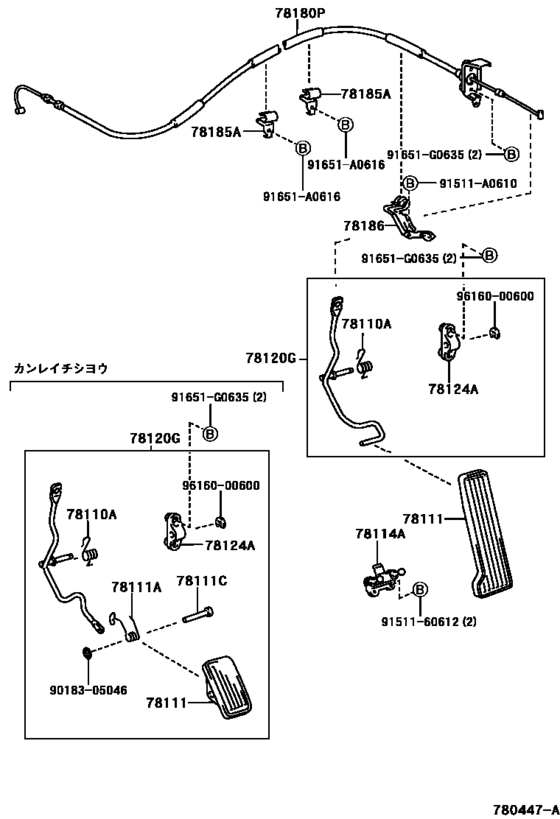

Accelerator Link ([09.1999 - ] (9909- )GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
78214-50010 Spring (For Accelerator Pedal Rod)[08.2001 -] GS171,JZS173,179,UZS17# |
78214-50010 |
US $3.35 |
||
|
78110A
|
78110A
90959-03204 Spring, Torsion (For Accelerator Link)[08.2001 -] GS171,JZS171,173,179,UZS17#..HTWC,TWC,TWT ｶﾝﾚｲﾁ ｼﾖｳ |
90959-03204 |
US $3.93 |
||
|
78111
|
78111
78111-22020 Pedal, Accelerator[08.2001 -] GS171,JKS175,JZS17#,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
78111-22020 |
US $12.93 |
||
|
78111
|
78111
78111-30081 Pedal, Accelerator[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
78111-30081 |
US $10.13 |
||
|
78111A
|
78111A
90905-08002 Spring (For Accelerator Pedal)[08.2001 -] GS171,JKS175,JZS17# |
90905-08002 |
US $2.06 |
||
|
78111C
|
78111C
90241-05022 Pin (For Accelerator Pedal)[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90241-05022 |
US $2.87 |
||
|
78114A
|
78114A
78114-30070 Bracket, Accelerator Pedal Support[08.2001 -] GS171,JKS175,JZS171,173,175,179 |
78114-30070 |
US $7.72 |
||
|
78120G
|
78120G
78120-3A170 Rod Assy, Accelerator Pedal[08.2001 -] GS171,JZS171,173,179..HTWC,TWC,TWT ｶﾝﾚｲﾁ ｼﾖｳ |
78120-3A170 |
US $61.99 |
||
|
78120G
|
78120G
78120-3A201 Rod Assy, Accelerator Pedal[08.2001 -] GS171,JZS173,179 |
78120-3A201 |
US $49.65 |
||
|
78124A
|
78124A
78124-50020 Bracket, Accelerator Pedal Rod[08.2001 -] GS171,JZS171,173,179,UZS17#..HTWC,TWC,TWT |
78124-50020 |
US $17.91 |
||
|
78180P
|
78180P
78180-3A750 Cable Assy, Accelerator Control[08.2001 - 12.2003] GS171 |
78180-3A750 |
US $77.17 |
||
|
78185A
|
78185A
78185-22080 Clamp, Accelerator Control Cable, No.2[08.2001 - 12.2003] GS171 |
78185-22080 |
US $4.80 |
||
|
78186
|
78186
78186-30160 Support, Accelerator Control Cable, No.1[08.2001 -] GS171,JZS171,173,179..HTWC,TWC,TWT |
78186-30160 |
US $8.44 |
||
|
91511A0610
|
91511A0610
91511-A0610
Bolt (For Propeller Shaft Heat Insulator)
|
91511-A0610 |
— | ||
| replacement | |||||
|
91511A0610
|
91511A0610
91531-A0610 Bolt (For Propeller Shaft Heat Insulator) |
91531-A0610 |
US $0.96 |
||
|
91651A0616
|
91651A0616
91651-A0616 BOLTWWASHER |
91651-A0616 |
from US $0.78 |
||
|
91651G0635
|
91651G0635
91651-G0635 New Genuine Part |
91651-G0635 |
US $2.04 |
||
|
9018305046
|
9018305046
90183-05046 New Genuine Part |
90183-05046 |
US $1.25 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
