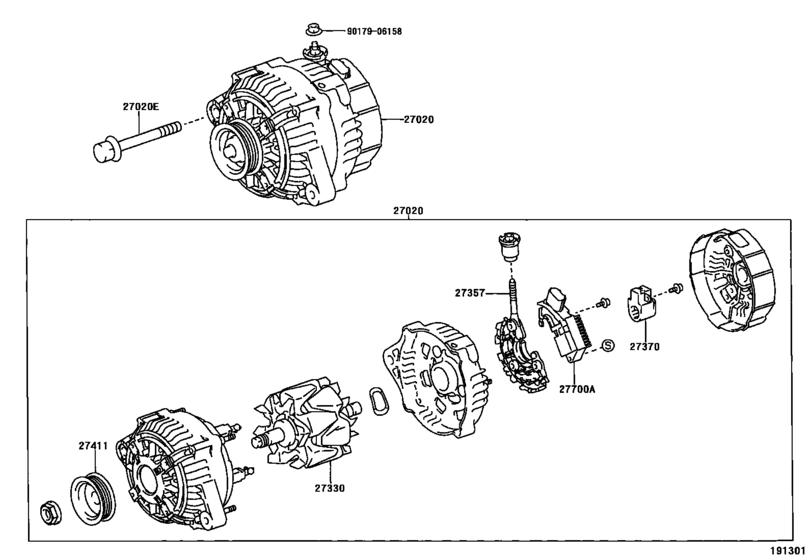

Alternator ([08.2001 - ] 12V 80A (0108- )1GFE) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-70520 Alternator Assy[08.2001 - 12.2003] 1GFE..GS171 １２Ｖ ８０Ａ |
27060-70520 |
US $1,659.84 |
||
| replacement | |||||
|
27020
|
27020
27060-70510 Alternator Assy[08.2001 - 12.2003] 1GFE..GS171 １２Ｖ ８０Ａ |
27060-70510 |
US $1,659.84 |
||
|
27020E
|
27020E
90105-10499 Bolt(For Alternator)[08.2001 - 12.2003] 1GFE..GS171 |
90105-10499 |
US $4.08 |
||
|
27330
|
27330
27330-70470
Rotor Assy, Alternator
[08.2001 - 12.2003] 1GFE..GS171 |
27330-70470 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-74550 Rotor Assy, Alternator[08.2001 - 12.2003] 1GFE..GS171 |
27330-74550 |
from US $176.47 |
||
|
27357
|
27357
27357-55080 Holder, Alternator, W/rectifier[08.2001 - 12.2003] 1GFE..GS171 |
27357-55080 |
from US $74.08 |
||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[08.2001 -] 1GFE,1JZGE,1JZGTE,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
27370-75060 |
from US $15.22 |
||
|
27411
|
27411
27411-70330
Pulley, Alternator
[08.2001 - 12.2003] 1GFE..GS171 |
27411-70330 |
— | ||
|
27700A
|
27700A
27700-46050 Regulator Assy, Generator[08.2001 - 12.2003] 1GFE..GS171 |
27700-46050 |
US $264.99 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
