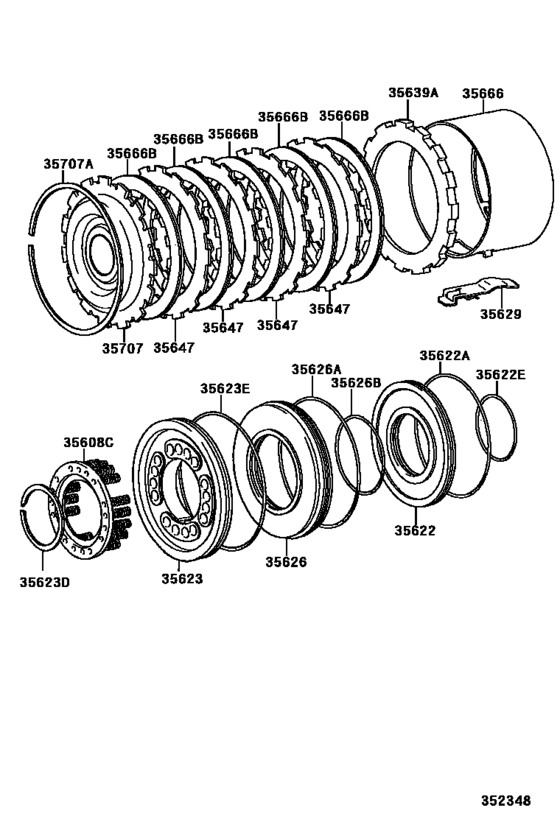

Brake No.3, 1St & Reverse Brake (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35608C
|
35608C
35608-20020 Spring Sub-Assy, 2Nd Brake Piston Return[08.2001 - 12.2003] GS171 |
35608-20020 |
US $12.96 |
||
|
35622
|
35622
35622-22010 Piston, Brake, No.2[08.2001 - 12.2003] GS171 |
35622-22010 |
US $22.57 |
||
|
35622A
|
35622A
90301-99084 Ring, O (For Underdrive Brake Piston)[08.2001 - 12.2003] GS171 |
90301-99084 |
from US $2.62 |
||
|
35622E
|
35622E
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.2001 - 12.2003] GS171 |
90301-56007 |
US $3.05 |
||
|
35623
|
35623
35623-22010 Piston, Brake, No.3[08.2001 - 12.2003] GS171 |
35623-22010 |
US $28.39 |
||
|
35623D
|
35623D
90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)[08.2001 - 12.2003] GS171 |
90520-52262 |
US $2.80 |
||
|
35623E
|
35623E
90301-99110 Ring, O (For Brake Piston Outer)[08.2001 - 12.2003] GS171 |
90301-99110 |
US $2.62 |
||
|
35626
|
35626
35626-22010 Sleeve, Brake Reaction[08.2001 - 12.2003] GS171 |
35626-22010 |
US $25.63 |
||
|
35626A
|
35626A
90301-99109 Ring (For Brake Reaction Sleeve Outer)[08.2001 - 12.2003] GS171 |
90301-99109 |
US $4.12 |
||
|
35626B
|
35626B
90301-67005 Ring (For Brake Reaction Sleeve Inner)[08.2001 -] GS171 |
90301-67005 |
US $1.49 |
||
|
35629
|
35629
35629-22010 Spring (1St & Revs Brake Plate Stopper)[08.2001 - 12.2003] GS171 |
35629-22010 |
US $3.20 |
||
|
35639A
|
35639A
35639-22010 Plate, Clutch Pressure (For Brake)[08.2001 - 12.2003] GS171 厚さ＝３．０５ |
35639-22010 |
US $39.75 |
||
|
35639A
|
35639A
35639-22020 Plate, Clutch Pressure (For Brake)[08.2001 - 12.2003] GS171 厚さ＝３．２５ |
35639-22020 |
US $39.75 |
||
|
35639A
|
35639A
35639-22030 Plate, Clutch Pressure (For Brake)[08.2001 - 12.2003] GS171 厚さ＝３．５ |
35639-22030 |
US $39.75 |
||
|
35639A
|
35639A
35639-22040 Plate, Clutch Pressure (For Brake)[08.2001 - 12.2003] GS171 厚さ＝３．７５ |
35639-22040 |
US $39.75 |
||
|
35639A
|
35639A
35639-22050 Plate, Clutch Pressure (For Brake)[08.2001 - 12.2003] GS171 厚さ＝４．０ |
35639-22050 |
US $39.75 |
||
|
35639A
|
35639A
35639-22060 Plate, Clutch Pressure (For Brake)[08.2001 - 12.2003] GS171 厚さ＝４．２５ |
35639-22060 |
US $39.75 |
||
|
35647
|
35647
35647-22010 Plate, Clutch, No.2[08.2001 - 12.2003] GS171 |
35647-22010 |
US $20.38 |
||
|
35666
|
35666
35666-30010 Tube, Brake Apply[08.2001 - 12.2003] GS171 |
35666-30010 |
US $20.68 |
||
|
35666B
|
35666B
35633-22060 Disc, Clutch (For Brake)[08.2001 - 12.2003] GS171 |
35633-22060 |
US $25.19 |
||
|
35707
|
35707
35707-30020 Race Sub-Assy, 1 Way Clutch, Inner[08.2001 - 12.2003] GS171 |
35707-30020 |
US $97.55 |
||
|
35707A
|
35707A
90521-99140 Ring (For Rear Brake)[08.2001 - 12.2003] GS171 |
90521-99140 |
US $6.26 |
