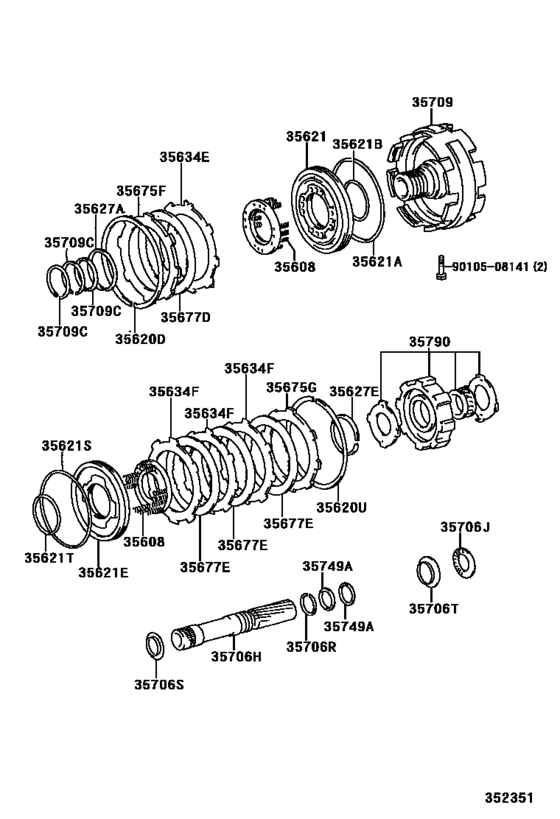

Center Support & Planetary Sun Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35608
|
35608
35608-20010
Spring Sub-Assy, 2Nd Brake Piston Return
[08.2001 - 12.2003] GS171 フロント |
35608-20010 |
— | ||
|
35608
|
35608
35608-22010 Spring Sub-Assy, 2Nd Brake Piston Return[08.2001 - 12.2003] GS171 リヤ |
35608-22010 |
US $29.41 |
||
|
35620D
|
35620D
90521-99139
Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
[08.2001 - 12.2003] GS171 |
90521-99139 |
— | ||
|
35620U
|
35620U
90521-99139
Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
[08.2001 - 12.2003] GS171 |
90521-99139 |
— | ||
|
35621
|
35621
35624-22010
Piston, Brake, No.1
[08.2001 - 12.2003] GS171 |
35624-22010 |
— | ||
|
35621A
|
35621A
90301-99110 Ring, O (For Brake Piston Outer)[08.2001 - 12.2003] GS171 |
90301-99110 |
US $2.62 |
||
|
35621B
|
35621B
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.2001 - 12.2003] GS171 |
90301-56007 |
US $3.05 |
||
|
35621E
|
35621E
35621-30010
Piston, Brake, No.1
[08.2001 - 12.2003] GS171 |
35621-30010 |
— | ||
|
35621S
|
35621S
90301-99107 Ring (For Rear Brake Piston Outer)[08.2001 - 12.2003] GS171 |
90301-99107 |
US $2.62 |
||
|
35621T
|
35621T
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.2001 - 12.2003] GS171 |
90301-56007 |
US $3.05 |
||
|
35627A
|
35627A
90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)[08.2001 - 12.2003] GS171 |
90520-52262 |
US $2.80 |
||
|
35627E
|
35627E
90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)[08.2001 - 12.2003] GS171 |
90520-52262 |
US $2.80 |
||
|
35634E
|
35634E
35634-22060 Plate, Clutch (For Overdrive)[08.2001 - 12.2003] GS171 |
35634-22060 |
US $34.42 |
||
|
35634F
|
35634F
35634-22100 Plate, Clutch (For Rear Brake)[08.2001 - 12.2003] GS171 厚さ＝２．０ |
35634-22100 |
US $29.41 |
||
|
35634F
|
35634F
35648-30020 Plate, Clutch (For Rear Brake)[08.2001 - 12.2003] GS171 厚さ＝２．３ |
35648-30020 |
US $22.13 |
||
|
35675F
|
35675F
35675-22140
Flange, Overdrive Clutch
[08.2001 - 12.2003] GS171 |
35675-22140 |
— | ||
|
35675G
|
35675G
35675-22140
Flange, Overdrive Clutch
[08.2001 - 12.2003] GS171 |
35675-22140 |
— | ||
|
35677D
|
35677D
35677-30140 Disc, Clutch (For Overdrive)[08.2001 - 12.2003] GS171 |
35677-30140 |
US $28.65 |
||
|
35677E
|
35677E
35677-22090 Disc, Clutch (For Rear Brake)[08.2001 - 12.2003] GS171 |
35677-22090 |
US $36.25 |
||
|
35706H
|
35706H
35706-22020 Gear Sub-Assy, Planetary Sun[08.2001 - 12.2003] GS171 |
35706-22020 |
US $240.24 |
||
|
35706J
|
35706J
90374-23003 Bearing, Thrust Needle Roller (For Planetary Sun Gear)[08.2001 - 12.2003] GS171 |
90374-23003 |
US $8.30 |
||
|
35706R
|
35706R
90520-34260 Ring, Shaft Snap (For Sun Gear Front)[08.2001 - 12.2003] GS171 |
90520-34260 |
US $3.20 |
||
|
35706S
|
35706S
35789-43020 Race, Thrust Bearing (For Planetary Sun Gear Front)[08.2001 - 12.2003] GS171 |
35789-43020 |
US $9.46 |
||
|
35706T
|
35706T
35789-22070 Race, Thrust Bearing (For Planetary Sun Gear Rear)[08.2001 - 12.2003] GS171 |
35789-22070 |
US $13.83 |
||
|
35709
|
35709
35709-28010 Support Sub-Assy, Center[08.2001 - 12.2003] GS171 |
35709-28010 |
US $331.97 |
||
|
35709C
|
35709C
35617-28010 Ring, Clutch Drum Oil Seal[08.2001 - 12.2003] GS171 |
35617-28010 |
US $5.02 |
||
|
35749A
|
35749A
35749-22010 Ring, Sun Gear Shaft Oil Seal[08.2001 - 12.2003] GS171 |
35749-22010 |
US $12.75 |
||
|
35790
|
35790
35790-22040 Clutch Assy, 1 Way[08.2001 - 12.2003] GS171 |
35790-22040 |
US $165.98 |
||
|
9010508141
|
9010508141
90105-08141 New Genuine Part |
90105-08141 |
US $1.16 |
