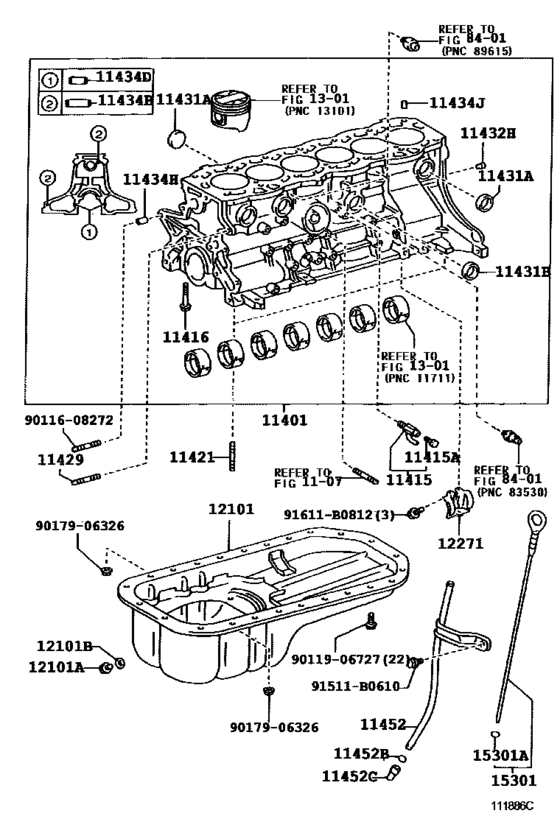

Cylinder Block ([04.2000 - ] (0004- )1GFE) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-80017 Block Sub-Assy, Cylinder[08.2001 - 12.2003] 1GFE..GS171 |
11401-80017 |
US $3,261.44 |
||
| replacement | |||||
|
11401
|
11401
11401-80711 Block Sub-Assy, Cylinder[08.2001 - 12.2003] 1GFE..GS171 |
11401-80711 |
US $2,708.16 |
||
|
11415
|
11415
90910-09075
Cock Sub-Assy, Water Drain(For Cylinder Block)
[08.2001 - 12.2003] 1GFE..GS171 |
90910-09075 |
— | ||
| replacement | |||||
|
11415
|
11415
90910-09129 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.2001 - 12.2003] 1GFE..GS171 |
90910-09129 |
from US $6.63 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[08.2001 - 12.2003] 1GFE..GS171 |
90910-09087 |
from US $2.95 |
||
|
11416
|
11416
90105-10028 Bolt(For Crankshaft Bearing Cap Set)[08.2001 - 12.2003] 1GFE..GS171 |
90105-10028 |
US $4.30 |
||
|
11421
|
11421
90116-06014 Bolt, Stud(For Oil Pan)[08.2001 - 12.2003] 1GFE..GS171 |
90116-06014 |
US $1.05 |
||
|
11429
|
11429
90116-10051 Bolt, Stud(For Alternator Bracket)[08.2001 - 12.2003] 1GFE..GS171 |
90116-10051 |
US $2.91 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[08.2001 - 12.2003] 1GFE..GS171 |
96411-43500 |
from US $3.50 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[08.2001 - 12.2003] 1GFE..GS171 |
96411-44000 |
from US $3.84 |
||
|
11432H
|
11432H
90344-53015 Plug, W/head Taper Screw, No.1[08.2001 - 12.2003] 1GFE..GS171 |
90344-53015 |
US $5.38 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.2001 - 12.2003] 1GFE..GS171 長さ＝２２，外径＝１０ |
90250-10113 |
from US $1.14 |
||
|
11434D
|
11434D
90250-06015 Pin, Straight(For Clutch Housing Set)[08.2001 - 12.2003] 1GFE..GS171 長さ＝１１，外径＝６; 1JZGTE..JZS171 長さ＝１１，外径＝６ |
90250-06015 |
US $2.15 |
||
|
11434H
|
11434H
90253-11021 Pin, Ring[08.2001 - 12.2003] 1GFE..GS171 |
90253-11021 |
from US $1.41 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[08.2001 - 12.2003] 1GFE..GS171 |
90253-13017 |
from US $1.31 |
||
|
11452
|
11452
11452-70060 Guide, Oil Level Gage[08.2001 - 12.2003] 1GFE..GS171 |
11452-70060 |
US $28.48 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[08.2001 - 12.2003] 1GFE..GS171 |
96721-19010 |
from US $1.56 |
||
|
11452C
|
11452C
11459-70010 Union(For Oil Level Gage Guide)[08.2001 - 12.2003] 1GFE..GS171 |
11459-70010 |
US $7.16 |
||
|
12101
|
12101
12101-70090 Pan Sub-Assy, Oil[08.2001 - 12.2003] 1GFE..GS171 |
12101-70090 |
US $269.36 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.2001 - 12.2003] 1GFE..GS171 |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[08.2001 - 12.2003] 1GFE..GS171 |
90341-T0004 |
US $3.50 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.2001 - 12.2003] 1GFE..GS171 |
90430-12031 |
from US $0.82 |
||
|
12271
|
12271
12271-70010 Screen, Oil Separator[08.2001 - 12.2003] 1GFE..GS171 |
12271-70010 |
US $19.80 |
||
|
15301
|
15301
15301-70100 Gage Sub-Assy, Oil Level[08.2001 - 12.2003] 1GFE..GS171 |
15301-70100 |
US $15.72 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[08.2001 - 12.2003] 1GFE..GS171 |
96741-19005 |
from US $2.36 |
||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
91611B0812
|
91611B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9011608272
|
9011608272
90116-08272 Bolt, Stud(For Water Outlet) |
90116-08272 |
US $3.06 |
||
|
9011906727
|
9011906727
90119-06727 BOLT W-WASHER |
90119-06727 |
US $2.15 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.65 |
||
