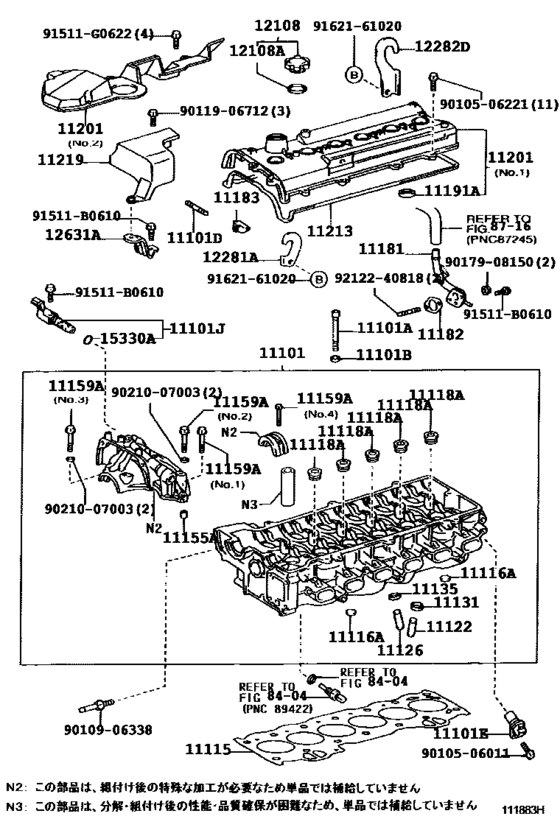

Cylinder Head ([04.2000 - ] (0004- )1GFE) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-79245 Head Sub-Assy, Cylinder[08.2001 - 12.2003] 1GFE..GS171 |
11101-79245 |
from US $1,855.48 |
||
|
11101A
|
11101A
90910-02133 Bolt(For Cylinder Head Set)[08.2001 - 12.2003] 1GFE..GS171 |
90910-02133 |
from US $4.45 |
||
|
11101B
|
11101B
90201-10050 Washer, Plate(For Cylinder Head Set)[08.2001 - 12.2003] 1GFE..GS171 |
90201-10050 |
US $3.05 |
||
|
11101D
|
11101D
90116-08304 Bolt, Stud(For Water Outlet)[08.2001 - 12.2003] 1GFE..GS171 |
90116-08304 |
US $2.48 |
||
|
11101E
|
11101E
90919-05026 Sensor, Position[08.2001 - 12.2003] 1GFE..GS171 |
90919-05026 |
from US $76.25 |
||
|
11101J
|
11101J
15330-70010
Valve Assy, Camshaft Timing Oil Control
[08.2001 - 12.2003] 1GFE..GS171 |
15330-70010 |
— | ||
| replacement | |||||
|
11101J
|
11101J
15330-70011 Valve Assy, Camshaft Timing Oil Control[08.2001 - 12.2003] 1GFE..GS171 |
15330-70011 |
from US $121.08 |
||
|
11115
|
11115
11115-70061
Gasket, Cylinder Head
[08.2001 - 03.2003] 1GFE..GS171 |
11115-70061 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-70062 Gasket, Cylinder Head[08.2001 - 03.2003] 1GFE..GS171 |
11115-70062 |
from US $46.92 |
||
|
11115
|
11115
11115-70062 Gasket, Cylinder Head[03.2003 - 12.2003] 1GFE..GS171 |
11115-70062 |
from US $46.92 |
||
|
11116A
|
11116A
96411-41800 Plug, Tight, No.1[08.2001 - 12.2003] 1GFE..GS171 |
96411-41800 |
from US $1.66 |
||
|
11118A
|
11118A
90341-27003 Plug, W/head Taper Screw, No.1[08.2001 - 12.2003] 1GFE..GS171 |
90341-27003 |
US $5.78 |
||
|
11122
|
11122
11122-21010 Bush, Intake Valve Guide[08.2001 - 12.2003] 1GFE..GS171 ＳＴＤ |
11122-21010 |
from US $8.60 |
||
|
11122
|
11122
11123-21010 Bush, Intake Valve Guide[08.2001 - 12.2003] 1GFE..GS171 Ｏ／Ｓ ０．０５ |
11123-21010 |
US $6.33 |
||
|
11126
|
11126
11122-21010 Bush, Intake Valve Guide[08.2001 - 12.2003] 1GFE..GS171 ＳＴＤ |
11122-21010 |
from US $8.60 |
||
|
11126
|
11126
11123-21010 Bush, Intake Valve Guide[08.2001 - 12.2003] 1GFE..GS171 Ｏ／Ｓ ０．０５ |
11123-21010 |
US $6.33 |
||
|
11131
|
11131
11131-70030
Seat, Intake Valve
[08.2001 - 12.2003] 1GFE..GS171 ＳＴＤ |
11131-70030 |
— | ||
|
11131
|
11131
11132-70030
Seat, Intake Valve
[08.2001 - 12.2003] 1GFE..GS171 Ｏ／Ｓ ０．０３ |
11132-70030 |
— | ||
|
11135
|
11135
11135-70040 Seat, Exhaust Valve[08.2001 - 12.2003] 1GFE..GS171 ＳＴＤ |
11135-70040 |
US $19.42 |
||
|
11135
|
11135
11136-70040
Seat, Exhaust Valve
[08.2001 - 12.2003] 1GFE..GS171 Ｏ／Ｓ ０．０３ |
11136-70040 |
— | ||
|
11155A
|
11155A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[08.2001 - 12.2003] 1GFE..GS171 |
90253-10006 |
US $0.79 |
||
|
11159A
|
11159A
90105-06221 Bolt(For Head To Camshaft Bearing Cap)[08.2001 - 12.2003] 1GFE..GS171 ＮＯ．１ |
90105-06221 |
US $2.15 |
||
|
11159A
|
11159A
90105-07004 Bolt(For Head To Camshaft Bearing Cap)[08.2001 - 12.2003] 1GFE..GS171 ＮＯ．２ |
90105-07004 |
US $1.31 |
||
|
11159A
|
11159A
90105-07006 Bolt(For Head To Camshaft Bearing Cap)[08.2001 - 12.2003] 1GFE..GS171 ＮＯ．３ |
90105-07006 |
US $1.75 |
||
|
11159A
|
11159A
90119-07009 Bolt(For Camshaft Housing Set)[08.2001 - 12.2003] 1GFE..GS171 ＮＯ．４ |
90119-07009 |
from US $0.84 |
||
|
11181
|
11181
11181-70050 Plate, Cylinder Head, Rear[08.2001 - 12.2003] 1GFE..GS171 |
11181-70050 |
US $30.43 |
||
|
11182
|
11182
11182-70021 Gasket, Cylinder Head Rear Plate[08.2001 - 12.2003] 1GFE..GS171 |
11182-70021 |
US $8.60 |
||
|
11183
|
11183
11183-70020 Plug, Semicircular[08.2001 - 12.2003] 1GFE..GS171 |
11183-70020 |
US $13.98 |
||
|
11191A
|
11191A
11193-70010 Gasket(For Spark Plug Tube)[08.2001 - 12.2003] 1GFE..GS171 |
11193-70010 |
from US $2.22 |
||
|
11201
|
11201
11201-70080 Cover Sub-Assy, Cylinder Head[08.2001 - 12.2003] 1GFE..GS171 ＮＯ．１ |
11201-70080 |
US $357.76 |
||
|
11201
|
11201
11202-70030 Cover Sub-Assy, Cylinder Head (Plastic)[08.2001 - 12.2003] 1GFE..GS171 ＮＯ．２ |
11202-70030 |
US $76.78 |
||
|
11213
|
11213
11213-70040 Gasket, Cylinder Head Cover[08.2001 - 12.2003] 1GFE..GS171 |
11213-70040 |
from US $23.85 |
||
|
11219
|
11219
11203-70010 Cover, Cylinder Head, No.3[08.2001 - 12.2003] 1GFE..GS171 |
11203-70010 |
US $77.11 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.2001 - 12.2003] 1GFE..GS171 |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.2001 - 12.2003] 1GFE..GS171 |
90430-37140 |
from US $1.17 |
||
|
12281A
|
12281A
12281-70050 Hanger, Engine, No.1[08.2001 - 12.2003] 1GFE..GS171 |
12281-70050 |
US $11.21 |
||
|
12282D
|
12282D
12282-70020 Hanger, Engine, No.2[08.2001 - 12.2003] 1GFE..GS171 |
12282-70020 |
US $17.76 |
||
|
12631A
|
12631A
12631-70010 Bracket, Engine Cover[08.2001 - 01.2002] 1GFE..GS171 |
12631-70010 |
US $10.92 |
||
| replacement | |||||
|
12631A
|
12631A
12631-70011 Bracket, Engine Cover[08.2001 - 01.2002] 1GFE..GS171 |
12631-70011 |
US $10.92 |
||
|
12631A
|
12631A
12631-70011 Bracket, Engine Cover[01.2002 - 12.2003] 1GFE..GS171 |
12631-70011 |
US $10.92 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[08.2001 - 12.2003] 1GFE..GS171 |
90099-14137 |
from US $2.16 |
||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
91511G0622
|
91511G0622
91511-G0622 BOLT, FLANGE |
91511-G0622 |
from US $0.94 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.74 |
||
|
9010506221
|
9010506221
90105-06221 Bolt(For Head To Camshaft Bearing Cap) |
90105-06221 |
US $2.15 |
||
|
9010906338
|
9010906338
90109-06338 New Genuine Part |
90109-06338 |
US $1.46 |
||
|
9011906712
|
9011906712
90119-06712 New Genuine Part |
90119-06712 |
US $2.33 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9021007003
|
9021007003
90210-07003 Washer, Seal(For Head To Camshaft Bearing Cap) |
90210-07003 |
from US $2.73 |
||
|
9162161020
|
9162161020
91621-61020
Bolt(For Transaxle & Engine Setting)
|
91621-61020 |
— | ||
| replacement | |||||
|
9162161020
|
9162161020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $2.15 |
||
|
9212240818
|
9212240818
92122-40818 Bolt, Stud(For Oil Pan) |
92122-40818 |
US $2.18 |
||
