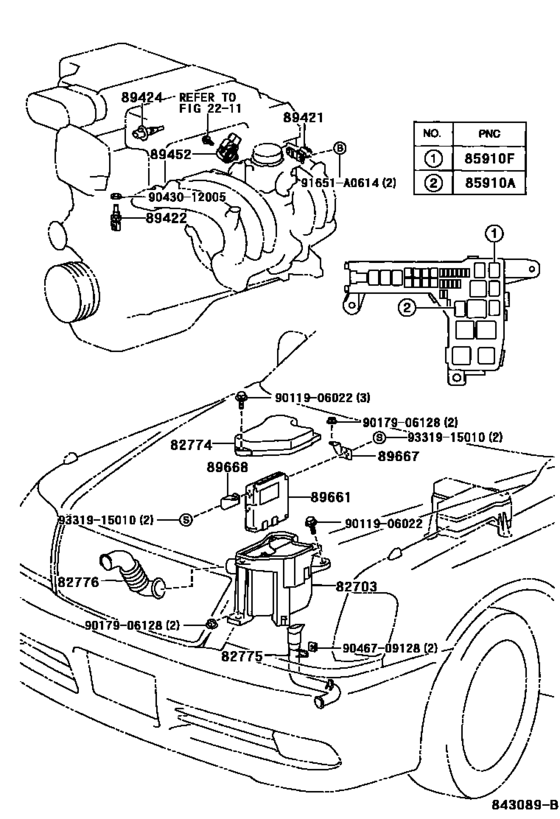

Electronic Fuel Injection System ([09.1999 - ] (9909- )GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82703
|
82703
82703-30020 Box Sub-Assy, Engine Room Ecu[08.2001 -] GS171,JKS175,JZS171,173,175,179 |
82703-30020 |
US $196.56 |
||
|
82774
|
82774
82774-30020 Cover, Engine Room Ecu[08.2001 - 12.2003] GS171,JZS171,179..HTWC,TWC,TWT |
82774-30020 |
US $74.26 |
||
|
82775
|
82775
82775-30020 Duct, Engine Room Ecu Inlet[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
82775-30020 |
from US $29.20 |
||
|
82776
|
82776
82776-30020 Duct, Engine Room Ecu Outlet[08.2001 -] GS171,JZS171,173,175,179..D4,HTWC,TWC |
82776-30020 |
US $16.89 |
||
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90987-02012 |
from US $25.86 |
||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90987-02012 |
from US $25.86 |
||
|
89421
|
89421
89421-20190 Sensor Assy, Vacuum[08.2001 -] GS171,JKS175,JZS171,173,175,177..D4,HTWC,TWC |
89421-20190 |
from US $127.92 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[08.2001 - 12.2003] GS171 |
89422-35010 |
from US $43.53 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[08.2001 -] GS171,JKS175,JZS171,173,175,177..D4,HTWC,TWC |
89424-12010 |
from US $56.49 |
||
|
89452
|
89452
89452-22070 Sensor, Throttle Position (For E.f.i.)[08.2001 - 12.2003] GS171 |
89452-22070 |
from US $75.73 |
||
|
89661
|
89661
89661-31060 Computer, Engine Control[08.2001 - 12.2003] GS171..ATHE |
89661-31060 |
US $1,718.08 |
||
|
89667
|
89667
89667-30250 Bracket, Engine Control Computer[08.2001 - 12.2003] GS171 |
89667-30250 |
US $9.32 |
||
|
89668
|
89668
89668-30210 Bracket, Engine Control Computer, No.2[08.2001 - 12.2003] GS171 |
89668-30210 |
US $12.08 |
||
|
91651A0614
|
91651A0614
91651-A0614
BOLT WWASHER
|
91651-A0614 |
— | ||
| replacement | |||||
|
91651A0614
|
91651A0614
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.33 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.25 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.67 |
||
|
9046709128
|
9046709128
90467-09128 CLIP |
90467-09128 |
US $4.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
