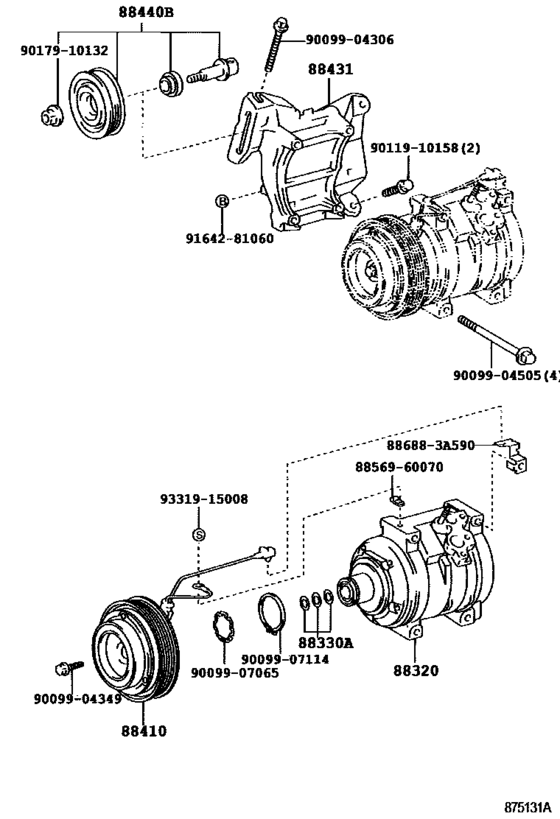

Heating & Air Conditioning - Compressor ([08.2001 - ] (0108- )GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-3A210
Compressor Assy, Cooler
[08.2001 - 12.2003] GS171 |
88320-3A210 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[08.2001 -] GS171,JKS175,JZS17# |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-2A090 Clutch Assy, Magnet[08.2001 - 12.2003] GS171 |
88410-2A090 |
US $556.19 |
||
|
88431
|
88431
88431-22350
Bracket, Compressor Mounting, No.1
[08.2001 - 12.2003] GS171 |
88431-22350 |
— | ||
|
88440B
|
88440B
88440-20170 Pulley Assy, Idle[08.2001 - 12.2003] GS171 |
88440-20170 |
US $100.04 |
||
|
886883A590
|
886883A590
88688-3A590
Bracket, Cooler Diaphragm
|
88688-3A590 |
— | ||
|
8856960070
|
8856960070
88569-60070
Bracket, Cooler Compressor
|
88569-60070 |
— | ||
|
9009904306
|
9009904306
90099-04306 Bolt, Idle Pulley |
90099-04306 |
US $1.92 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904505
|
9009904505
90099-04505
New Genuine Part
|
90099-04505 |
— | ||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.10 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9011910158
|
9011910158
90119-10158 New Genuine Part |
90119-10158 |
US $2.34 |
||
|
9017910132
|
9017910132
90179-10132 Nut |
90179-10132 |
from US $0.91 |
||
|
9164281060
|
9164281060
91642-81060 New Genuine Part |
91642-81060 |
US $1.40 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
