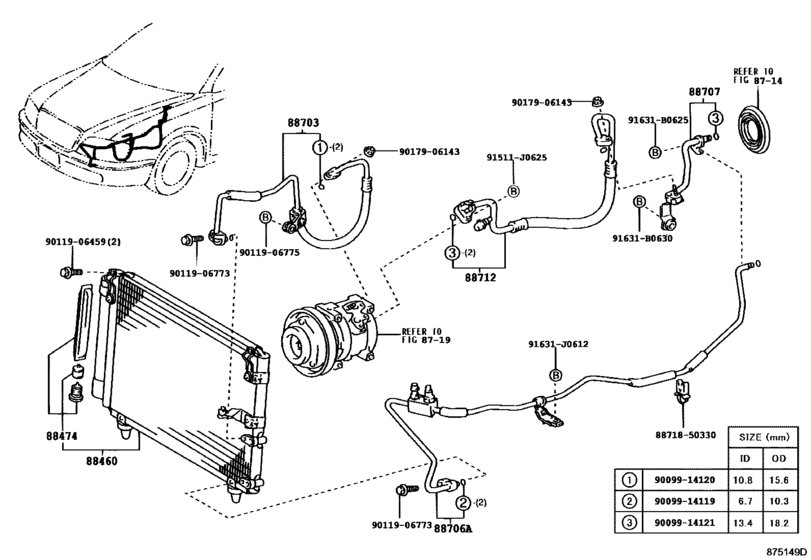

Heating & Air Conditioning - Cooler Piping ([08.2001 - ] ﾌﾛﾝﾄ (0108- )GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-30830 Condenser Assy, Cooler[08.2001 -] GS171,JKS175,JZS171,173,175,179 |
88460-30830 |
US $693.06 |
||
|
88474
|
88474
88474-47010 Dryer, Cooler[08.2001 - 11.2003] GS171,JKS175,JZS17#,UZS17# |
88474-47010 |
from US $33.95 |
||
|
88703
|
88703
88703-30840 Hose Sub-Assy, Discharge[08.2001 - 12.2003] GS171 |
88703-30840 |
US $206.75 |
||
|
88706A
|
88706A
88706-3A310 Tube Sub-Assy, Liquid, A[08.2001 - 12.2003] GS171 |
88706-3A310 |
US $260.62 |
||
| replacements | |||||
|
88706A
|
88706A
88569-51030
Clamp (for Cooler Relay)
[08.2001 - 12.2003] GS171 |
88569-51030 |
— | ||
|
88706A
|
88706A
88645-22080 Switch, Pressure No.1[08.2001 - 12.2003] GS171 |
88645-22080 |
US $53.46 |
||
|
88706A
|
88706A
88726-3K550 Pipe, Cooler Refrigerant Liquid, A[08.2001 - 12.2003] GS171 |
88726-3K550 |
US $154.34 |
||
|
88707
|
88707
88707-51010 Pipe Sub-Assy, Suction[08.2001 -] GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
88707-51010 |
US $117.94 |
||
| replacements | |||||
|
88707
|
88707
88467-14070
Insulator (For Power Take-Off Cable Bracket)
[08.2001 -] GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
88467-14070 |
— | ||
|
88707
|
88707
88569-51040
Clamp (for Cooler Relay)
[08.2001 -] GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
88569-51040 |
— | ||
|
88707
|
88707
88727-51020 Pipe, Cooler Refrigerant Suction, A[08.2001 -] GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
88727-51020 |
US $80.08 |
||
|
88707
|
88707
90099-32140
New Genuine Part
[08.2001 -] GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
90099-32140 |
— | ||
|
88712
|
88712
88712-3A890 Hose, Cooler Refrigerant Suction, No.1[08.2001 - 12.2003] GS171 |
88712-3A890 |
US $231.50 |
||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.76 |
||
|
91631B0625
|
91631B0625
91631-B0625 BOLT W-WASHER |
91631-B0625 |
from US $0.65 |
||
|
91631B0630
|
91631B0630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
8871850330
|
8871850330
88718-50330
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-50330 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.79 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.52 |
||
|
9011906459
|
9011906459
90119-06459 New Genuine Part |
90119-06459 |
US $1.51 |
||
|
9011906773
|
9011906773
90119-06773 Bolt |
90119-06773 |
US $1.08 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.78 |
||
