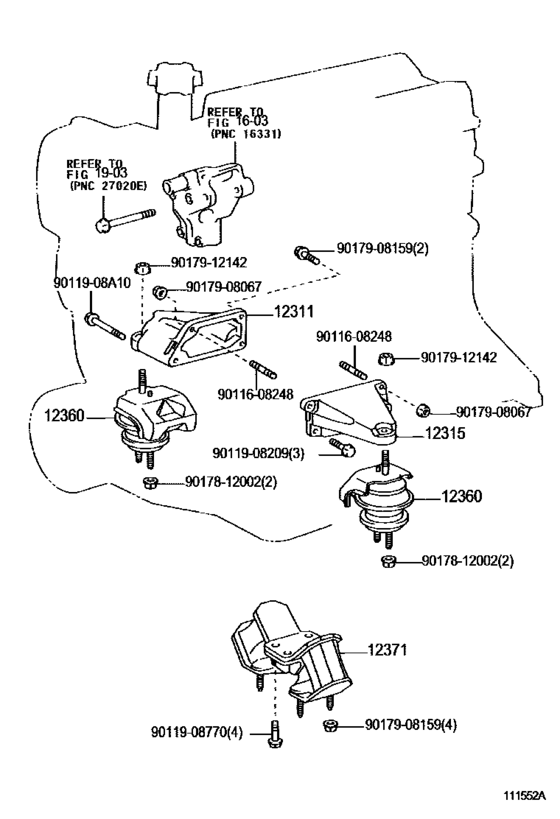

Mounting ([04.2000 - ] (0004- )1GFE) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-70150 Bracket, Engine Mounting, Front No.1 Rh[08.2001 - 12.2003] 1GFE..GS171 |
12311-70150 |
US $81.54 |
||
|
12315
|
12315
12315-70130 Bracket, Engine Mounting, Front No.1 Lh[08.2001 - 12.2003] 1GFE..GS171 |
12315-70130 |
US $81.54 |
||
|
12360
|
12360
12360-70040 Insulator Assy, Engine Mounting, Front[08.2001 - 12.2003] 1GFE..GS171 |
12360-70040 |
from US $206.40 |
||
|
12371
|
12371
12371-46050 Insulator, Engine Mounting, Rear No.1[08.2001 - 12.2003] 1GFE..GS171 |
12371-46050 |
from US $81.84 |
||
|
9011908A10
|
9011908A10
90119-08A10 New Genuine Part |
90119-08A10 |
US $3.49 |
||
|
9011608248
|
9011608248
90116-08248 Bolt(For Intake Manifold To Exhaust Manifold) |
90116-08248 |
US $0.79 |
||
|
9011908209
|
9011908209
90119-08209 New Genuine Part |
90119-08209 |
US $3.20 |
||
|
9011908770
|
9011908770
90119-08770 Bolt, W/washer(For Repair Actuator Set) |
90119-08770 |
US $2.69 |
||
|
9017812002
|
9017812002
90178-12002 New Genuine Part |
90178-12002 |
US $3.94 |
||
|
9017908067
|
9017908067
90179-08067 New Genuine Part |
90179-08067 |
US $1.75 |
||
|
9017908159
|
9017908159
90179-08159 Nut, Cap(For Cylinder Head Cover) |
90179-08159 |
US $2.69 |
||
|
9017912142
|
9017912142
90179-12142 New Genuine Part |
90179-12142 |
US $3.94 |
