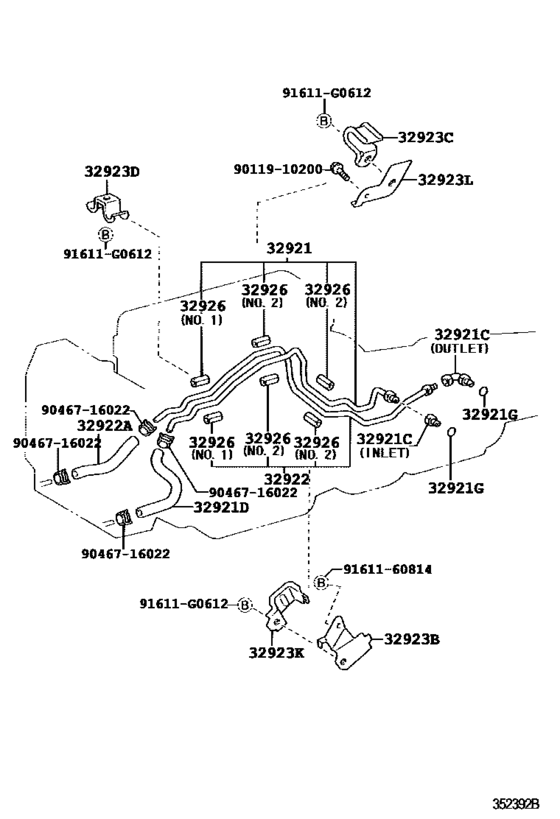

Oil Cooler & Tube (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-53020 Tube, Oil Cooler Inlet, No.1[08.2001 - 12.2003] GS171 |
32921-53020 |
US $27.26 |
||
| replacement | |||||
|
32921
|
32921
32921-53030 Tube, Oil Cooler Inlet, No.1OIL COOLER INLET, NO.1 [08.2001 - 12.2003] GS171 |
32921-53030 |
US $26.96 |
||
|
32921C
|
32921C
90404-16021 Union(For Oil Cooler Tube)[08.2001 - 12.2003] GS171 インレット |
90404-16021 |
US $7.34 |
||
|
32921C
|
32921C
90407-16010 Union(For Oil Cooler Tube)[08.2001 - 12.2003] GS171 アウトレット |
90407-16010 |
US $9.50 |
||
|
32921D
|
32921D
90445-17097 Hose, Oil Cooler Water Outlet[08.2001 - 12.2003] GS171 |
90445-17097 |
from US $18.24 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[08.2001 - 12.2003] GS171 |
90301-10189 |
from US $2.57 |
||
|
32922
|
32922
32922-30780 Tube, Oil Cooler Outlet, No.1[08.2001 - 12.2003] GS171 |
32922-30780 |
US $27.96 |
||
|
32922A
|
32922A
90445-17103 Hose, Oil Cooler Tube(For Inlet)[08.2001 - 12.2003] GS171 |
90445-17103 |
from US $9.67 |
||
|
32923B
|
32923B
32923-22080 Clamp, Automatic Transmission Oil Cooler Tube[08.2001 - 12.2003] GS171 |
32923-22080 |
US $7.28 |
||
|
32923C
|
32923C
90949-01B25 Clamp, Automatic Transmission Oil Cooler Tube[08.2001 - 12.2003] GS171 |
90949-01B25 |
US $4.80 |
||
|
32923D
|
32923D
90462-12047 Clamp, Automatic Transmission Oil Cooler Tube[08.2001 - 12.2003] GS171 |
90462-12047 |
US $2.71 |
||
|
32923K
|
32923K
32929-22050 Clamp, Automatic Transmission Oil Cooler Tube[08.2001 - 12.2003] GS171 |
32929-22050 |
US $5.74 |
||
|
32923L
|
32923L
32924-30260 Clamp, Automatic Transmission Oil Cooler Tube, No.3[08.2001 - 12.2003] GS171 |
32924-30260 |
US $5.24 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.2001 -] JZS175,177;GS171,JZS171,173,179..HTWC,TWC,TWT 長さ＝３５，内径＝１０,NO.1 |
32926-30020 |
US $3.05 |
||
|
32926
|
32926
32926-30030 Cushion, Oil Cooler Tube(Atm)[08.2001 -] GS171,JZS17# 長さ＝３５，内径＝１０ |
32926-30030 |
US $2.06 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9011910200
|
9011910200
90119-10200 New Genuine Part |
90119-10200 |
US $5.56 |
||
|
9046716022
|
9046716022
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.26 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
