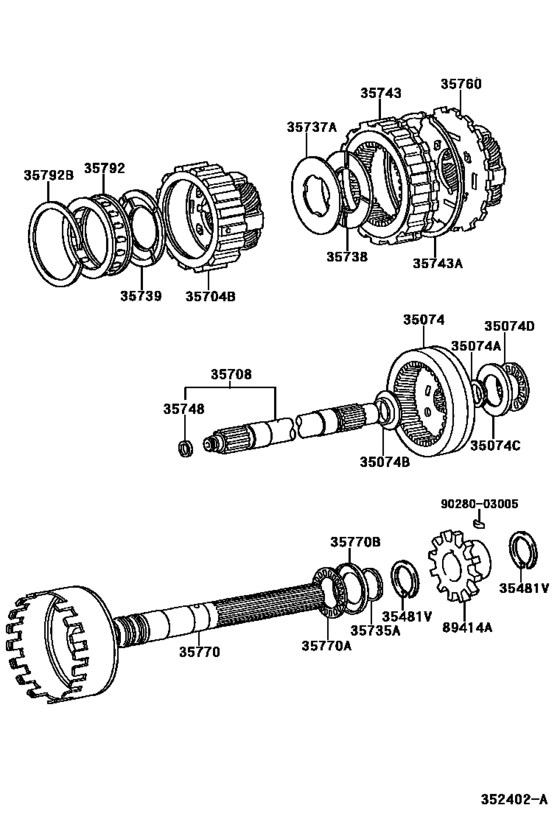

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35074
|
35074
35074-30010 Gear Sub-Assy, Rear Planetary Ring[08.2001 - 12.2003] GS171 |
35074-30010 |
US $147.06 |
||
|
35074A
|
35074A
90522-20037 Ring, Set (For Rear Planetary Ring Gear)[08.2001 - 12.2003] GS171 |
90522-20037 |
US $2.33 |
||
|
35074B
|
35074B
35789-22050 Race, Thrust Bearing (For Rear Planetary Ring Gear Front)[08.2001 - 12.2003] GS171 |
35789-22050 |
US $8.91 |
||
|
35074C
|
35074C
35789-22020 Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)[08.2001 - 12.2003] GS171 |
35789-22020 |
US $8.91 |
||
|
35074D
|
35074D
90374-28014 Bearing, Thrust Needle Roller(For Overdrive)[08.2001 - 12.2003] GS171 |
90374-28014 |
US $4.89 |
||
|
35481V
|
35481V
90520-28009 Ring Or Spacer (For Mtm Speedometer Drive Gear)[08.2001 -] GS171,JKS175,JZS171,173,175,179 厚さ＝１．５０，外径＝３３．８ |
90520-28009 |
from US $1.44 |
||
|
35481V
|
35481V
90520-29004 Ring, Shaft Snap (For Atm Speedmeter Drive Gear)[08.2001 - 12.2003] GS171 厚さ＝１．５０，外径＝３４．８ |
90520-29004 |
US $0.70 |
||
|
35704B
|
35704B
35704-22030 Carrier Sub-Assy, Planetary W/lock Gear[08.2001 - 12.2003] GS171 |
35704-22030 |
US $404.77 |
||
|
35708
|
35708
35708-30031 Shaft Sub-Assy, Planetary Intermediate[08.2001 - 12.2003] GS171 |
35708-30031 |
US $209.66 |
||
|
35735A
|
35735A
35735-22010 Ring, Planetary Output Snap[08.2001 - 12.2003] GS171 |
35735-22010 |
US $9.32 |
||
|
35737A
|
35737A
35737-22010 Washer, Planetary Carrier Thrust[08.2001 - 12.2003] GS171 |
35737-22010 |
US $7.57 |
||
|
35738
|
35738
35738-22010 Washer, Planetary Carrier Thrust, No.2[08.2001 - 12.2003] GS171 |
35738-22010 |
US $10.34 |
||
|
35739
|
35739
35739-14010 Washer, Planetary Carrier Thrust, No.3[08.2001 - 12.2003] GS171 |
35739-14010 |
US $9.61 |
||
|
35743
|
35743
35743-22010 Gear, Front Planetary Ring[08.2001 - 12.2003] GS171 |
35743-22010 |
US $91.73 |
||
|
35743A
|
35743A
90520-99121 Ring, Shaft Snap (For Front Planetary Ring Gear)[08.2001 - 12.2003] GS171 |
90520-99121 |
US $5.53 |
||
|
35748
|
35748
35748-30010 Ring, Intermediate Shaft Sleeve Oil Seal[08.2001 - 12.2003] GS171 |
35748-30010 |
US $6.41 |
||
|
35760
|
35760
35760-22030 Gear Assy, Rear Planetary[08.2001 - 12.2003] GS171 |
35760-22030 |
US $266.45 |
||
|
35770
|
35770
35770-22060 Shaft Assy, Output[08.2001 - 12.2003] GS171 |
35770-22060 |
US $725.09 |
||
|
35770A
|
35770A
90374-38013 Bearing, Thrust (For Output Shaft)[08.2001 - 12.2003] GS171 |
90374-38013 |
US $9.46 |
||
|
35770B
|
35770B
35789-22040 Race, Thrust Bearing (For Output Shaft)[08.2001 - 12.2003] GS171 |
35789-22040 |
US $8.15 |
||
|
35792
|
35792
35792-30011 Clutch, 1 Way, No.2[08.2001 - 12.2003] GS171 |
35792-30011 |
US $205.30 |
||
|
35792B
|
35792B
90521-79148 Ring, Hole Snap(For Overdrive Planetary Gear)[08.2001 - 12.2003] GS171 |
90521-79148 |
US $2.62 |
||
|
89414A
|
89414A
89414-22020 Rotor, Sensor[08.2001 - 12.2003] GS171 |
89414-22020 |
US $14.41 |
||
|
9028003005
|
9028003005
90280-03005 Key, Oil Pump Drive Shaft |
90280-03005 |
US $1.05 |
