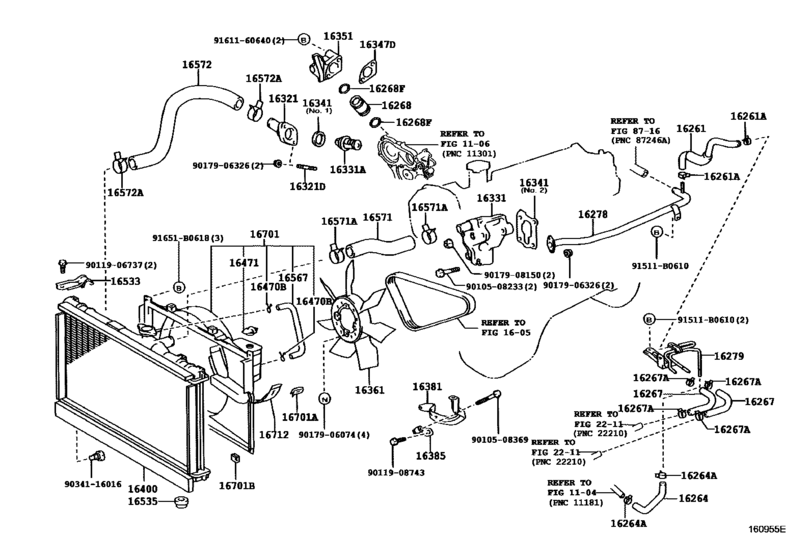

Radiator & Water Outlet ([04.2000 - ] (0004- )1GFE) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-70090 Hose, Water By-Pass[08.2001 - 12.2003] 1GFE..GS171 |
16261-70090 |
US $7.86 |
||
|
16261A
|
16261A
96135-51300 Clamp, Hose[08.2001 - 12.2003] 1GFE..GS171 |
96135-51300 |
from US $2.13 |
||
|
16264
|
16264
99555-10200 Hose, Water By-Pass[08.2001 - 12.2003] 1GFE..GS171 ＊Ｈ，Ｌ＝１４０ |
99555-10200 |
from US $5.13 |
||
|
16264A
|
16264A
96135-51300 Clamp, Hose[08.2001 - 12.2003] 1GFE..GS171 |
96135-51300 |
from US $2.13 |
||
|
16267
|
16267
16267-70060 Hose, Water By-Pass, No.3[08.2001 - 12.2003] 1GFE..GS171 |
16267-70060 |
US $10.57 |
||
|
16267A
|
16267A
96135-51300 Clamp, Hose[08.2001 - 12.2003] 1GFE..GS171 |
96135-51300 |
from US $2.13 |
||
|
16268
|
16268
16268-70031 Pipe, Water By-Pass, No.1[08.2001 - 12.2003] 1GFE..GS171 |
16268-70031 |
US $16.31 |
||
|
16268F
|
16268F
90301-17009 Ring, O(For Water By-Pass Pipe)[08.2001 - 08.2002] 1GFE..GS171 |
90301-17009 |
from US $6.06 |
||
|
16268F
|
16268F
90301-17016 Ring, O(For Water By-Pass Pipe)[08.2002 - 12.2003] 1GFE..GS171 |
90301-17016 |
US $4.30 |
||
|
16278
|
16278
16278-70080
Pipe, Water By-Pass, No.2
[08.2001 - 12.2003] 1GFE..GS171 |
16278-70080 |
— | ||
|
16279
|
16279
16279-70080 Pipe, Water By-Pass, No.3[08.2001 - 12.2003] 1GFE..GS171 |
16279-70080 |
US $40.48 |
||
|
16321
|
16321
16321-70030 Inlet, Water[08.2001 - 12.2003] 1GFE..GS171 |
16321-70030 |
US $46.70 |
||
|
16321D
|
16321D
16193-63010 Bolt, Stud(For Water Outlet Setting)[08.2001 - 12.2003] 1GFE..GS171 |
16193-63010 |
US $6.27 |
||
|
16331
|
16331
16304-70020 Outlet, Water[08.2001 - 12.2003] 1GFE..GS171 |
16304-70020 |
US $125.22 |
||
|
16331A
|
16331A
90916-03081 Thermostat[08.2001 - 12.2003] 1GFE..GS171 ＊ＷＡＸ ８２−９５ |
90916-03081 |
from US $25.41 |
||
|
16341
|
16341
16341-35010 Gasket, Water Outlet[08.2001 - 12.2003] 1GFE..GS171 ＮＯ．１ |
16341-35010 |
from US $1.89 |
||
|
16341
|
16341
16341-70040 Gasket, Water Outlet[08.2001 - 12.2003] 1GFE..GS171 ＮＯ．２ |
16341-70040 |
US $5.56 |
||
|
16347D
|
16347D
16347-70021 Gasket, Water By-Pass[08.2001 - 12.2003] 1GFE..GS171 |
16347-70021 |
from US $2.71 |
||
|
16351
|
16351
16351-70010
Outlet, Water By-Pass
[08.2001 - 07.2002] 1GFE..GS171 |
16351-70010 |
— | ||
| replacement | |||||
|
16351
|
16351
16351-70011 Outlet, Water By-Pass[08.2001 - 07.2002] 1GFE..GS171 |
16351-70011 |
US $42.34 |
||
|
16351
|
16351
16351-70011 Outlet, Water By-Pass[07.2002 - 12.2003] 1GFE..GS171 |
16351-70011 |
US $42.34 |
||
|
16361
|
16361
16361-70040 Fan[08.2001 - 12.2003] 1GFE..GS171 |
16361-70040 |
US $112.43 |
||
|
16381
|
16381
16381-70060 Bar, Fan Belt Adjusting[08.2001 - 12.2003] 1GFE..GS171 |
16381-70060 |
US $31.45 |
||
|
16385
|
16385
16385-70030 Slider, Fan Belt Adjusting[08.2001 - 12.2003] 1GFE..GS171 |
16385-70030 |
US $7.71 |
||
|
16400
|
16400
16400-46640 Radiator Assy[08.2001 - 12.2003] 1GFE..GS171 |
16400-46640 |
US $580.67 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.2001 - 12.2003] 1GFE..GS171; 1JZFSE,1JZGE,2JZ#..JZS171,173,175,179..SED |
90467-11085 |
from US $0.72 |
||
|
16471
|
16471
16471-70020 Cap Sub-Assy, Reserve Tank[08.2001 - 12.2003] 1GFE..GS171 |
16471-70020 |
US $9.46 |
||
|
16533
|
16533
16505-46080 Support, Radiator, Upper[08.2001 - 12.2003] 1GFE..GS171; 1JZGTE..JZS171;1JZFSE,1JZGE,2JZ#..JKS175,JZS171,173,175,179..SED |
16505-46080 |
US $19.49 |
||
|
16535
|
16535
90480-40010 Support, Radiator, Lower[08.2001 - 06.2002] 1GFE..GS171 |
90480-40010 |
US $14.52 |
||
|
16535
|
16535
90480-40022 Support, Radiator, Lower[06.2002 - 12.2003] 1GFE..GS171 |
90480-40022 |
from US $10.39 |
||
|
16567
|
16567
16565-70030 Hose(For Radiator Reserve Tank)[08.2001 - 12.2003] 1GFE..GS171 |
16565-70030 |
US $15.58 |
||
|
16571
|
16571
16571-70340 Hose, Radiator, Inlet[08.2001 - 12.2003] 1GFE..GS171 |
16571-70340 |
US $21.84 |
||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[08.2001 - 12.2003] 1GFE..GS171; 1JZGTE..JZS171 |
90467-37005 |
from US $3.98 |
||
|
16572
|
16572
16572-70270 Hose, Radiator, Outlet[08.2001 - 12.2003] 1GFE..GS171 |
16572-70270 |
US $35.24 |
||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[08.2001 - 12.2003] 1GFE..GS171 |
90467-37005 |
from US $3.98 |
||
|
16701
|
16701
16711-70210 Shroud Sub-Assy, Fan[08.2001 - 12.2003] 1GFE..GS171 |
16711-70210 |
US $154.34 |
||
|
16701A
|
16701A
90468-06013 Clip(For Fan Shroud)[08.2001 - 12.2003] 1GFE..GS171 |
90468-06013 |
from US $0.96 |
||
|
16701B
|
16701B
90541-11002 Cushion, Fan Shroud[08.2001 - 12.2003] 1GFE..GS171 |
90541-11002 |
US $4.12 |
||
|
16712
|
16712
16712-70070 Shroud, Fan, No.2[08.2001 - 12.2003] 1GFE..GS171 |
16712-70070 |
US $32.32 |
||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.79 |
||
|
9010508233
|
9010508233
90105-08233 Bolt (For Transaxle Housing & Transaxle Case Setting) |
90105-08233 |
US $0.87 |
||
| replacement | |||||
|
9010508233
|
9010508233
90080-10187 Bolt (For Transaxle Housing & Transaxle Case Setting) |
90080-10187 |
US $3.96 |
||
|
9010508369
|
9010508369
90105-08369 New Genuine Part |
90105-08369 |
US $4.66 |
||
|
9011906737
|
9011906737
90119-06737 BOLT WWASHER |
90119-06737 |
US $2.15 |
||
|
9011908743
|
9011908743
90119-08743 New Genuine Part |
90119-08743 |
US $1.61 |
||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.61 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.66 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9034116016
|
9034116016
90341-16016 Plug, Straight Screw W/head(For Radiator) |
90341-16016 |
US $3.35 |
||
|
9161160640
|
9161160640
91611-60640 New Genuine Part |
91611-60640 |
US $1.05 |
||
