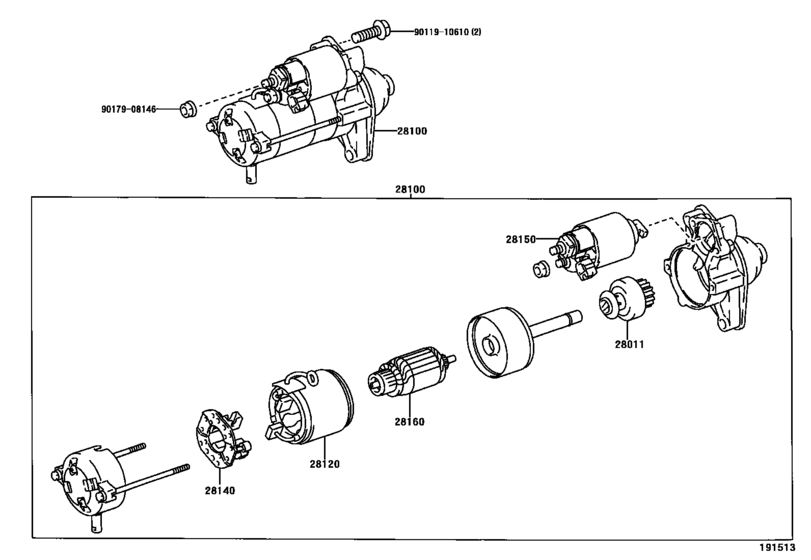

Starter ([08.2001 - ] 12V 0.8KW,1.0KW (0108- )1GFE) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[08.2001 - 12.2003] 1GFE..GS171 12V 0.8KW,1.0KW |
28011-70020 |
US $43.51 |
||
|
28100
|
28100
28100-70030 Starter Assy[08.2001 - 12.2003] 1GFE..GS171 １２Ｖ ０．８ＫＷ |
28100-70030 |
US $899.81 |
||
| replacement | |||||
|
28100
|
28100
28100-70050 Starter Assy[08.2001 - 12.2003] 1GFE..GS171 １２Ｖ ０．８ＫＷ |
28100-70050 |
US $1,090.54 |
||
|
28100
|
28100
28100-70050 Starter Assy[08.2001 - 12.2003] 1GFE..GS171 １２Ｖ １．０ＫＷ |
28100-70050 |
US $1,090.54 |
||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[08.2001 -] 1GFE,1JZ#..GS171,JZS171,173 12V 0.8KW |
28120-70020 |
from US $96.08 |
||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[08.2001 -] 1GFE,2JZ#..GS171,JKS175,JZS175,177,179 12V 1.0KW |
28120-70050 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[08.2001 -] 1GFE,1JZ#,2JZ#..GS171,JKS175,JZS17# 12V 0.8KW,1.0KW |
28140-70020 |
from US $20.09 |
||
|
28150
|
28150
28150-70030
Switch Assy, Magnet Starter
[08.2001 -] 1GFE,1JZ#,2JZ#..GS171,JKS175,JZS17# |
28150-70030 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-22100 Switch Assy, Magnet Starter[08.2001 -] 1GFE,1JZ#,2JZ#..GS171,JKS175,JZS17# |
28150-22100 |
from US $82.56 |
||
|
28160
|
28160
28160-70021 Armature Assy, Starter[08.2001 -] 1GFE,1JZ#..GS171,JZS171,173 12V 0.8KW |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[08.2001 -] 1GFE,2JZ#..GS171,JKS175,JZS175,177,179 12V 1.0KW |
28160-70050 |
US $161.62 |
||
|
9011910610
|
9011910610
90119-10610 Bolt (For Transfer Case) |
90119-10610 |
US $3.20 |
||
| replacement | |||||
|
9011910610
|
9011910610
91612-61055 Bolt (For Transfer Case) |
91612-61055 |
US $2.33 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
