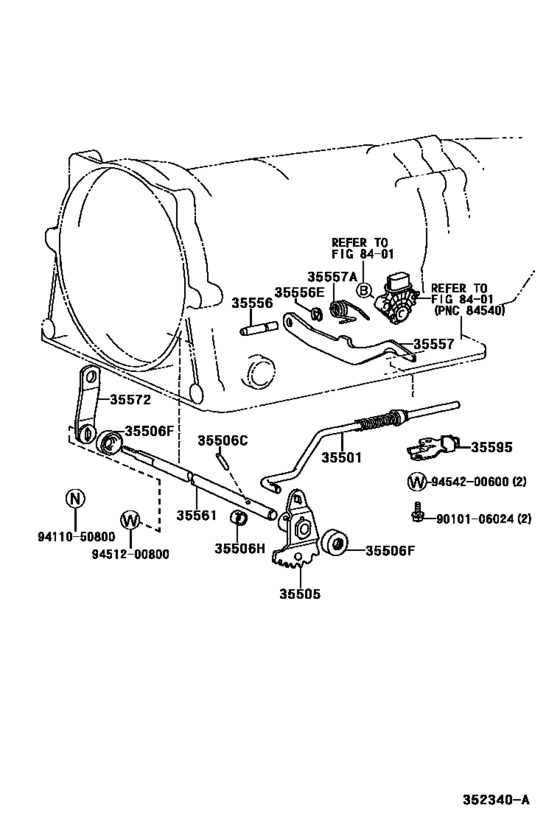

Throttle Link & Valve Lever (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-26020 Rod Sub-Assy, Parking Lock[08.2001 - 12.2003] GS171..ATHE |
35501-26020 |
US $16.02 |
||
|
35505
|
35505
35505-22070 Lever Sub-Assy, Manual Valve[08.2001 - 12.2003] GS171..ATHE |
35505-22070 |
US $31.01 |
||
|
35506C
|
35506C
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-11003 Seal, Oil (For Manual Valve Lever Shaft)[08.2001 - 12.2003] GS171 |
90311-11003 |
from US $4.66 |
||
|
35506H
|
35506H
90560-20003
Spacer (For Transfer Manual Valve Lever)
[08.2001 - 02.2003] GS171 |
90560-20003 |
— | ||
| replacement | |||||
|
35506H
|
35506H
90560-20025 Spacer (For Manual Valve Lever)[08.2001 - 02.2003] GS171 |
90560-20025 |
from US $1.62 |
||
|
35506H
|
35506H
90560-20025 Spacer (For Manual Valve Lever)[02.2003 -] GS171,JKS175,JZS17#,UZS17# |
90560-20025 |
from US $1.62 |
||
|
35556
|
35556
35556-26010 Shaft, Parking Lock Pawl[08.2001 - 12.2003] GS171 |
35556-26010 |
US $8.15 |
||
|
35556E
|
35556E
90523-08021 Ring, E (For Parking Lock Pawl Shaft)[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90523-08021 |
US $1.46 |
||
|
35557
|
35557
35557-35010 Pawl, Parking Lock[08.2001 - 12.2003] GS171 |
35557-35010 |
US $30.28 |
||
|
35557A
|
35557A
90508-25001 Spring, Torsion (For Parking Lock Pawl)[08.2001 - 12.2003] GS171 |
90508-25001 |
US $4.22 |
||
|
35561
|
35561
35561-22030
Shaft, Manual Valve Lever
[08.2001 - 12.2003] GS171 |
35561-22030 |
— | ||
|
35572
|
35572
35572-22050 Lever, Transmission Control Shaft, Rh[08.2001 - 12.2003] GS171 |
35572-22050 |
US $19.80 |
||
|
35595
|
35595
35595-40010 Bracket, Parking Lock Pawl[08.2001 - 12.2003] GS171 |
35595-40010 |
US $12.67 |
||
|
9010106024
|
9010106024
90101-06024 New Genuine Part |
90101-06024 |
US $0.87 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9454200600
|
9454200600
94542-00600 New Genuine Part |
94542-00600 |
US $3.20 |
||
