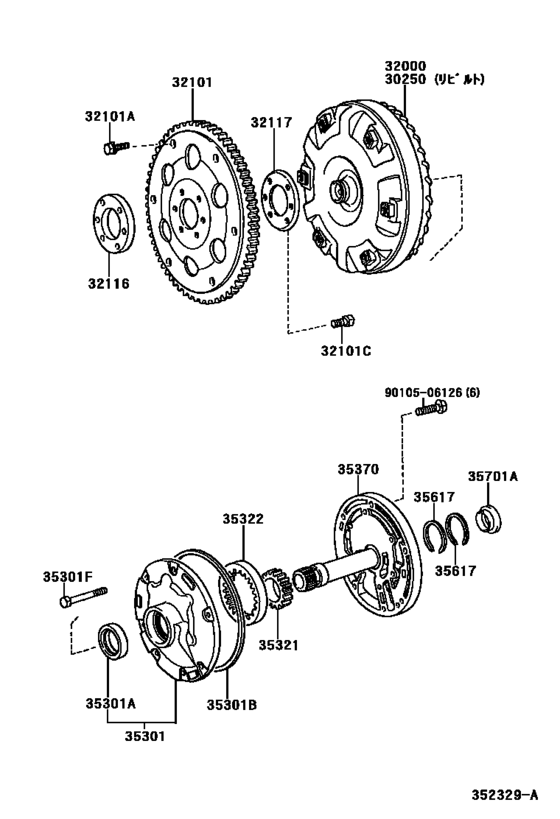

Torque Converter, Front Oil Pump & Chain (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30250
|
30250
30250-22220 Converter Assy, Torque, Rebuilt[08.2001 - 12.2003] GS171 |
30250-22220 |
US $1,036.67 |
||
|
32000
|
32000
32000-22220 Converter Assy, Torque[08.2001 - 11.2003] GS171 |
32000-22220 |
US $1,485.12 |
||
|
32101
|
32101
32101-24012 Gear Sub-Assy, Drive Plate & Ring[08.2001 - 12.2003] GS171 |
32101-24012 |
US $238.78 |
||
|
32101A
|
32101A
90105-09005 Bolt(For Drive Plate & Torque Converter Setting)[08.2001 -] GS171,JKS175,JZS17#,UZS17# ＊９−１．２５ＰＸ１１−８ |
90105-09005 |
from US $0.78 |
||
|
32101A
|
32101A
90105-09006 Bolt(For Drive Plate & Torque Converter Setting)[08.2001 -] GS171,JKS175,JZS17#,UZS17# ＊９−１．２５ＰＸ１１−８．５ |
90105-09006 |
from US $0.78 |
||
|
32101A
|
32101A
90119-09009 Bolt(For Drive Plate & Torque Converter Setting)[08.2001 - 11.2003] GS171,JKS175,JZS171,173,175,179 ＊９−１．２５ＰＸ１２．８−８．８ |
90119-09009 |
from US $1.15 |
||
|
32101A
|
32101A
90119-09010 Bolt(For Drive Plate & Torque Converter Setting)[08.2001 - 11.2003] GS171,JKS175,JZS171,173,175,179 ＊９−１．２５ＰＸ１２．８−９ |
90119-09010 |
from US $2.87 |
||
|
32101C
|
32101C
90105-10046 Bolt, Hexagon(For Drive Plate Setting)[08.2001 - 12.2003] GS171 ＊１０−１．２５ＰＸ２３−１５．５ |
90105-10046 |
US $4.30 |
||
|
32116
|
32116
32116-14011 Spacer, Drive Plate, Front[08.2001 - 12.2003] GS171 |
32116-14011 |
US $11.07 |
||
|
32117
|
32117
32117-14011 Spacer, Drive Plate, Rear[08.2001 - 12.2003] GS171 |
32117-14011 |
US $9.17 |
||
|
35301
|
35301
35301-22021 Body Sub-Assy, Front Oil Pump[08.2001 - 12.2003] GS171 |
35301-22021 |
US $186.37 |
||
|
35301A
|
35301A
90311-38064 Seal, Oil (For Front Oil Pump)[08.2001 - 12.2003] GS171 |
90311-38064 |
from US $5.20 |
||
|
35301B
|
35301B
90301-99010 Ring, O (For Front Oil Pump Body)[08.2001 - 12.2003] GS171 |
90301-99010 |
US $12.72 |
||
|
35301F
|
35301F
90105-08137 Bolt (For Front Oil Pump Setting)[08.2001 - 12.2003] GS171 |
90105-08137 |
US $2.48 |
||
|
35321
|
35321
35321-22020 Gear Sub-Assy, Front Oil Pump Drive[08.2001 - 12.2003] GS171 厚さ＝１７．２４４−１７．２３５ |
35321-22020 |
US $34.94 |
||
|
35321
|
35321
35321-22030
Gear Sub-Assy, Front Oil Pump Drive
[08.2001 - 12.2003] GS171 厚さ＝１７．２５４−１７．２４５ |
35321-22030 |
— | ||
|
35321
|
35321
35321-22040 Gear Sub-Assy, Front Oil Pump Drive[08.2001 - 12.2003] GS171 厚さ＝１７．２６５−１７．２５５ |
35321-22040 |
US $34.94 |
||
|
35321
|
35321
35321-22050 Gear Sub-Assy, Front Oil Pump Drive[08.2001 - 12.2003] GS171 厚さ＝１７．２７５−１７．２６６ |
35321-22050 |
US $34.94 |
||
|
35321
|
35321
35321-22060
Gear Sub-Assy, Front Oil Pump Drive
[08.2001 - 12.2003] GS171 厚さ＝１７．２８５−１７．２７６ |
35321-22060 |
— | ||
|
35322
|
35322
35322-22020
Gear, Front Oil Pump Driven
[08.2001 - 12.2003] GS171 厚さ＝１７．２４４−１７．２３５ |
35322-22020 |
— | ||
|
35322
|
35322
35322-22030 Gear, Front Oil Pump Driven[08.2001 - 12.2003] GS171 厚さ＝１７．２５４−１７．２４５ |
35322-22030 |
US $49.36 |
||
|
35322
|
35322
35322-22040 Gear, Front Oil Pump Driven[08.2001 - 12.2003] GS171 厚さ＝１７．２６５−１７．２５５ |
35322-22040 |
US $49.36 |
||
|
35322
|
35322
35322-22050 Gear, Front Oil Pump Driven[08.2001 - 12.2003] GS171 厚さ＝１７．２７５−１７．２６６ |
35322-22050 |
US $49.36 |
||
|
35322
|
35322
35322-22060 Gear, Front Oil Pump Driven[08.2001 - 12.2003] GS171 厚さ＝１７．２８５−１７．２７６ |
35322-22060 |
US $49.36 |
||
|
35370
|
35370
35370-22060 Shaft Assy, Stator[08.2001 - 12.2003] GS171 |
35370-22060 |
US $200.93 |
||
|
35617
|
35617
35617-32010 Ring, Clutch Drum Oil Seal[08.2001 - 12.2003] GS171 |
35617-32010 |
US $28.22 |
||
|
35701A
|
35701A
90374-25003 Bearing, Thrust (For Input Shaft Front)[08.2001 - 12.2003] GS171 |
90374-25003 |
US $12.06 |
||
|
9010506126
|
9010506126
90105-06126 Bolt (For Stator Shaft) |
90105-06126 |
US $0.87 |
