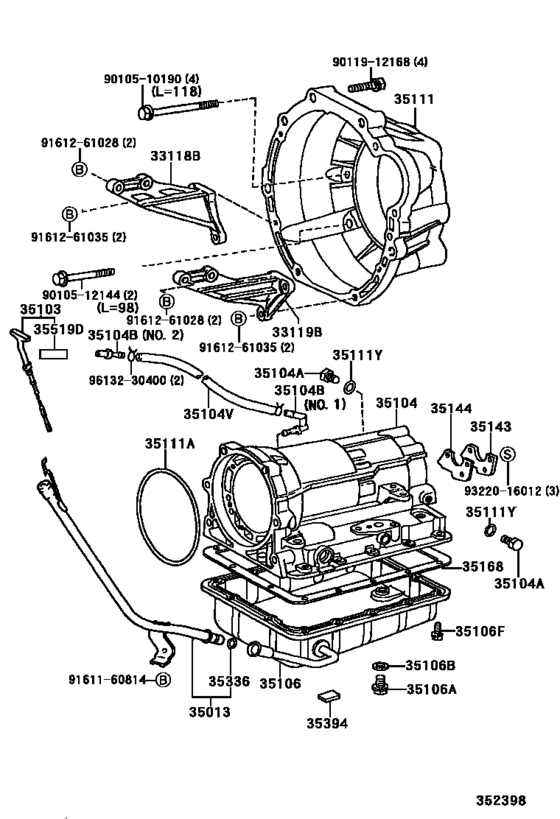

Transmission Case & Oil Pan (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118B
|
33118B
33118-22051 Plate, Stiffener, Rh(Mtm)[08.2001 - 12.2003] GS171 |
33118-22051 |
US $31.89 |
||
|
33119B
|
33119B
33119-22042 Plate, Stiffener, Lh(Mtm)[08.2001 - 12.2003] GS171 |
33119-22042 |
US $29.99 |
||
|
35013
|
35013
35013-30600 Tube Sub-Assy, Transmission Oil Filler[08.2001 - 12.2003] GS171 |
35013-30600 |
US $43.97 |
||
|
35103
|
35103
35103-30730 Gage Sub-Assy, Transmission Oil Level[08.2001 - 12.2003] GS171 |
35103-30730 |
US $15.58 |
||
|
35104
|
35104
35104-22060 Case Sub-Assy, Automatic Transmission[08.2001 - 12.2003] GS171 |
35104-22060 |
US $374.19 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[08.2001 -] JZS173,179 右側（リア） ＆左側; GS171,JKS175,JZS171,175,177,UZS17# |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03098 Plug, Breather, No.1 (Atm)[08.2001 -] GS171,JKS175,JZS171,173,175,179,UZS171,175 ＮＯ．１ |
90930-03098 |
from US $7.20 |
||
|
35104B
|
35104B
90930-03168 Plug, Breather, No.1 (Atm)[08.2001 -] GS171,JKS175,JZS171,173,175,179,UZS171,175 ＮＯ．２ |
90930-03168 |
US $6.45 |
||
|
35104V
|
35104V
90445-11145 Hose (For Breather Plug)[08.2001 - 12.2003] GS171 |
90445-11145 |
US $4.66 |
||
|
35106
|
35106
35106-53030 Pan Sub-Assy, Automatic Transmission Oil[08.2001 - 12.2003] GS171 |
35106-53030 |
US $81.54 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[04.2003 -] GS171,JKS175,JZS17#,UZS17# |
35178-30010 |
from US $1.77 |
||
|
35106B
|
35106B
35178-50010
Gasket, Drain Plug (Atm)
[08.2001 - 04.2003] GS171,JKS175,JZS17#,UZS17# |
35178-50010 |
— | ||
| replacement | |||||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.2001 - 04.2003] GS171,JKS175,JZS17#,UZS17# |
35178-30010 |
from US $1.77 |
||
|
35106F
|
35106F
90119-06117
Bolt (For Automatic Transmission Oil Pan)
[08.2001 - 12.2003] GS171 |
90119-06117 |
— | ||
| replacement | |||||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[08.2001 - 12.2003] GS171 |
90119-06173 |
from US $0.76 |
||
|
35111
|
35111
35111-53010 Housing, Automatic Transmission[08.2001 - 12.2003] GS171 |
35111-53010 |
US $608.61 |
||
|
35111A
|
35111A
90301-99054 Ring, O (For Automatic Transmission Housing)[08.2001 - 12.2003] GS171 |
90301-99054 |
US $13.63 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90301-06196 |
from US $2.24 |
||
|
35143
|
35143
35143-22010 Cover, Transmission Case, Rear[08.2001 - 12.2003] GS171 |
35143-22010 |
US $6.26 |
||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[08.2001 - 12.2003] GS171 |
35144-28010 |
US $2.62 |
||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[08.2001 - 12.2003] GS171 |
35168-22011 |
from US $9.79 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.2001 -] GS171,JKS175,JZS17# |
90301-09173 |
from US $2.01 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.2001 - 12.2003] GS171 |
35394-30011 |
from US $5.62 |
||
|
35519D
|
35519D
35519-20030 Label, Automatic Transmission Information[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
35519-20030 |
US $4.08 |
||
|
9010510190
|
9010510190
90105-10190 New Genuine Part |
90105-10190 |
US $3.20 |
||
|
9010512144
|
9010512144
90105-12144 New Genuine Part |
90105-12144 |
US $3.20 |
||
|
9011912168
|
9011912168
90119-12168 Bolt(For Transaxle & Engine Setting) |
90119-12168 |
from US $2.01 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161261028
|
9161261028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
