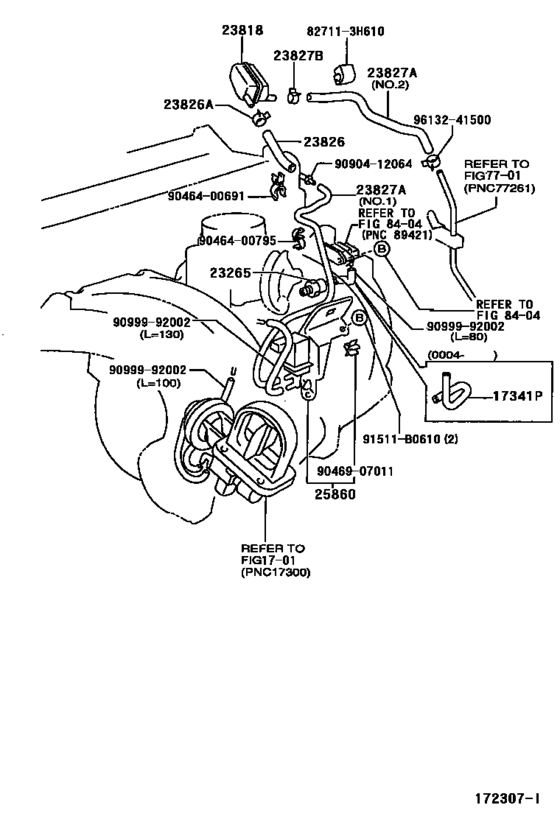

Vacuum Piping ([04.2000 - ] (0004- )1GFE) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- GS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341P
|
17341P
17341-70260
Hose, Air
[08.2001 - 12.2003] 1GFE..GS171 |
17341-70260 |
— | ||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[08.2001 - 12.2003] 1GFE..GS171 |
90917-11022 |
from US $17.14 |
||
|
23818
|
23818
23818-46110 Pipe, Fuel Vapor Feed[08.2001 - 12.2003] 1GFE..GS171; 2JZGE..JZS179 |
23818-46110 |
from US $8.02 |
||
|
23826
|
23826
23826-70030 Hose, Fuel Vapor Feed, No.1[08.2001 - 12.2003] 1GFE..GS171 |
23826-70030 |
US $13.10 |
||
|
23826A
|
23826A
96132-41300
Clip, No.4(For Idle-Up Hose)
[08.2001 - 12.2003] 1GFE..GS171 |
96132-41300 |
— | ||
| replacement | |||||
|
23826A
|
23826A
96132-51300 Clip(For Ventilation Hose No.2)[08.2001 - 12.2003] 1GFE..GS171 |
96132-51300 |
from US $1.44 |
||
|
23827A
|
23827A
23827-46060 Hose, Fuel Vapor Feed, No.2[08.2001 - 12.2003] 1GFE..GS171 ＮＯ．２ |
23827-46060 |
US $20.68 |
||
|
23827A
|
23827A
23827-70020 Hose, Fuel Vapor Feed, No.2[08.2001 - 12.2003] 1GFE..GS171 ＮＯ．１ |
23827-70020 |
US $16.89 |
||
|
23827B
|
23827B
96132-41300
Clip, No.4(For Idle-Up Hose)
[08.2001 - 12.2003] 1GFE..GS171 |
96132-41300 |
— | ||
| replacement | |||||
|
23827B
|
23827B
96132-51300 Clip(For Ventilation Hose No.2)[08.2001 - 12.2003] 1GFE..GS171 |
96132-51300 |
from US $1.44 |
||
|
25860
|
25860
25860-70020 Valve Assy, Vacuum Switching, No.1[08.2001 - 12.2003] 1GFE..GS171 |
25860-70020 |
US $155.79 |
||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
827113H610
|
827113H610
82711-3H610 Wire, Fuse To Fuse(for Combustion Heater) |
82711-3H610 |
US $4.22 |
||
|
9046400691
|
9046400691
90464-00691 New Genuine Part |
90464-00691 |
US $3.06 |
||
|
9046400795
|
9046400795
90464-00795 New Genuine Part |
90464-00795 |
US $1.46 |
||
|
9046907011
|
9046907011
90469-07011 Clamp No.1 (For Windseield Washer) |
90469-07011 |
from US $1.97 |
||
|
9090412064
|
9090412064
90904-12064 New Genuine Part |
90904-12064 |
US $1.75 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9613241500
|
9613241500
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
from US $1.44 |
||
