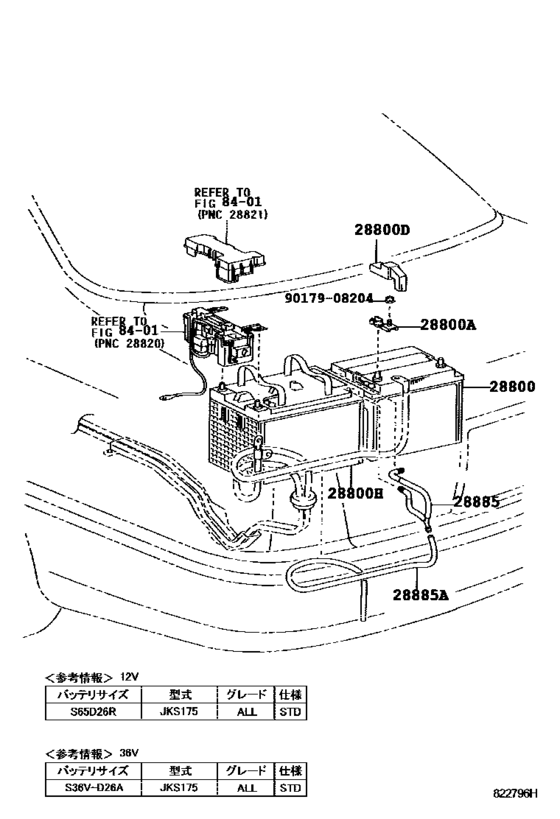

Battery & Battery Cable ([08.2001 - 12.2003] (0108-0312)JKS175) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- JKS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-46170
Battery
[08.2001 - 12.2003] 2JZFSE..JKS175 Ｓ６５Ｄ２６Ｒ |
28800-46170 |
— | ||
|
28800A
|
28800A
90982-05053 Terminal, Battery Positive[08.2001 -] 1GFE,2JZFSE..GS171,JKS175;1JZFSE,1JZGE,2JZFSE..JZS171,173,175..WG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
90982-05053 |
US $15.41 |
||
|
28800D
|
28800D
82821-24010 Cover, Connector(For Battery Terminal)[08.2001 -] 1JZFSE,1JZGE,2JZFSE..JZS171,173,175..WG;1GFE,2JZFSE,1UZFE..GS171,JKS175,JZS177,UZS 17# |
82821-24010 |
from US $5.56 |
||
|
28800H
|
28800H
28800-46180
Battery, No.2 (Cannot be supplied)
[08.2001 - 12.2003] 2JZFSE..JKS175 ３６Ｖ，Ｓ３６Ｖ−Ｄ２６Ａ |
28800-46180 |
— | ||
|
28885
|
28885
28885-46010 Hose, Battery Room Ventilation[08.2001 - 12.2003] 2JZFSE..JKS175 |
28885-46010 |
US $15.87 |
||
|
28885A
|
28885A
28885-46020 Hose, Battery Room Ventilation[08.2001 - 12.2003] 2JZFSE..JKS175 |
28885-46020 |
US $11.36 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
