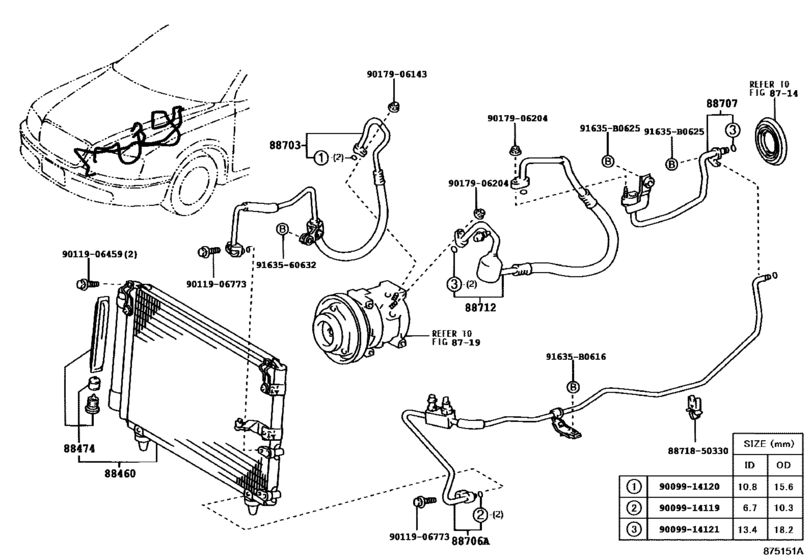

Heating & Air Conditioning - Cooler Piping ([08.2001 - ] ﾌﾛﾝﾄ (0108- )JKS175) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- JKS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-30830 Condenser Assy, Cooler[08.2001 -] GS171,JKS175,JZS171,173,175,179 |
88460-30830 |
US $693.06 |
||
|
88474
|
88474
88474-47010 Dryer, Cooler[08.2001 - 11.2003] GS171,JKS175,JZS17#,UZS17# |
88474-47010 |
from US $33.95 |
||
|
88703
|
88703
88703-3A110 Hose Sub-Assy, Discharge[08.2001 - 12.2003] JKS175 |
88703-3A110 |
US $196.56 |
||
|
88706A
|
88706A
88706-3A370 Tube Sub-Assy, Liquid, A[08.2001 - 12.2003] JKS175 |
88706-3A370 |
US $337.79 |
||
|
88707
|
88707
88707-30670 Pipe Sub-Assy, Suction[08.2001 - 12.2003] JKS175 |
88707-30670 |
US $142.69 |
||
|
88712
|
88712
88712-30150 Hose, Cooler Refrigerant Suction, No.1[08.2001 - 12.2003] JKS175 |
88712-30150 |
US $256.26 |
||
|
91635B0616
|
91635B0616
91635-B0616 New Genuine Part |
91635-B0616 |
US $1.46 |
||
| replacement | |||||
|
91635B0616
|
91635B0616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
91635B0625
|
91635B0625
91635-B0625 New Genuine Part |
91635-B0625 |
US $1.46 |
||
| replacement | |||||
|
91635B0625
|
91635B0625
91631-B0625 BOLT W-WASHER |
91631-B0625 |
from US $0.65 |
||
|
8871850330
|
8871850330
88718-50330
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-50330 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.03 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.52 |
||
|
9011906459
|
9011906459
90119-06459 New Genuine Part |
90119-06459 |
US $1.51 |
||
|
9011906773
|
9011906773
90119-06773 Bolt |
90119-06773 |
US $1.08 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.78 |
||
|
9017906204
|
9017906204
90179-06204 NUT |
90179-06204 |
US $2.15 |
||
|
9163560632
|
9163560632
91635-60632 New Genuine Part |
91635-60632 |
US $1.75 |
||
| replacement | |||||
|
9163560632
|
9163560632
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
