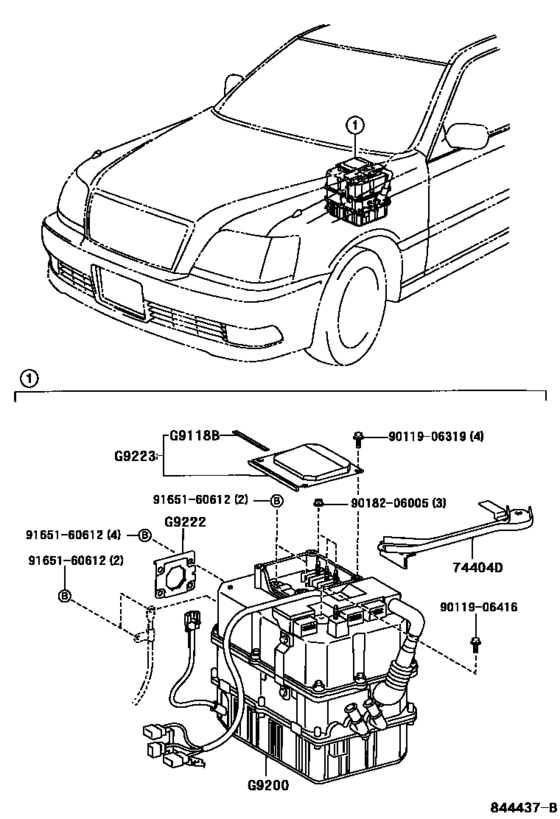

Hv Inverter ([08.2001 - ] (0108- )JKS175) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- JKS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404D
|
74404D
74404-30291 Clamp Sub-Assy, Inverter[08.2001 - 12.2003] JKS175 |
74404-30291 |
US $29.27 |
||
|
9011906319
|
9011906319
90119-06319 New Genuine Part |
90119-06319 |
US $1.60 |
||
| replacement | |||||
|
9011906319
|
9011906319
91611-F0612 New Genuine Part |
91611-F0612 |
US $1.60 |
||
|
9011906416
|
9011906416
90119-06416 New Genuine Part |
90119-06416 |
US $1.75 |
||
|
9018206005
|
9018206005
90182-06005 NUT W-WASHER |
90182-06005 |
US $1.61 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
|
G9118B
|
G9118B
G9118-30010 Label, Power Control Unit Caution[08.2001 - 12.2003] JKS175 |
G9118-30010 |
US $2.18 |
||
|
G9200
|
G9200
G9200-30020 Inverter Assy, W/converter[08.2001 - 12.2003] JKS175 |
G9200-30020 |
US $5,183.36 |
||
|
G9222
|
G9222
G9222-30011 Cover, Inverter Terminal, No.2[08.2001 - 12.2003] JKS175 |
G9222-30011 |
US $7.72 |
||
|
G9223
|
G9223
G9223-30012 Cover, Inverter Terminal[08.2001 - 12.2003] JKS175 |
G9223-30012 |
US $47.03 |
||
