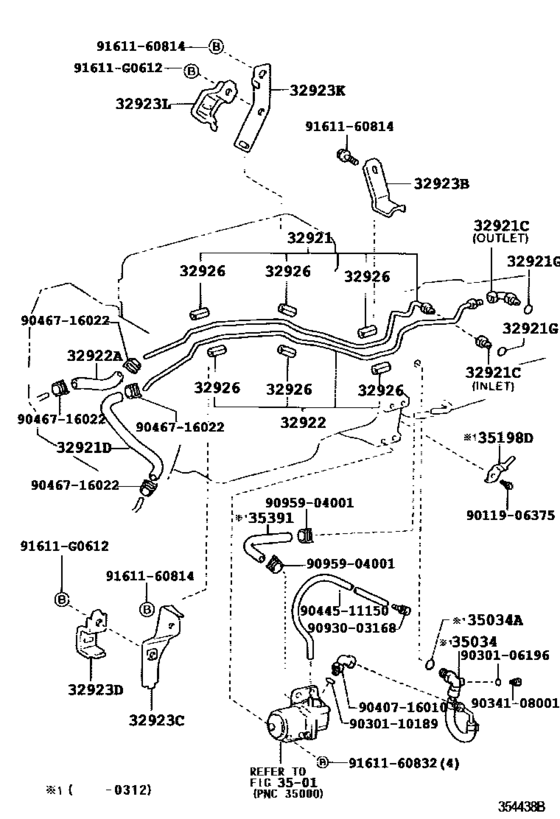

Oil Cooler & Tube (Atm) ([01.2002 - ] A650E (0201- )JKS175) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- JKS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-30710 Tube, Oil Cooler Inlet, No.1[08.2001 - 01.2002] JKS175 |
32921-30710 |
US $25.33 |
||
|
32921
|
32921
32921-30800 Tube, Oil Cooler Inlet, No.1[01.2002 - 12.2003] JKS175 |
32921-30800 |
US $25.33 |
||
|
32921C
|
32921C
90404-16029 Union(For Oil Cooler Tube)[08.2001 -] JKS175,JZS171,175,177,UZS17# インレット |
90404-16029 |
US $7.71 |
||
|
32921C
|
32921C
90407-16009 Union(For Oil Cooler Tube)[08.2001 -] JKS175,JZS17#,UZS17# アウトレット |
90407-16009 |
from US $6.99 |
||
|
32921D
|
32921D
90445-17095 Hose(For Oil Cooler Inlet)[08.2001 -] JKS175,JZS173,175,177,179 |
90445-17095 |
from US $10.91 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[08.2001 -] JZS173..ATH;JKS175,JZS171,175,177,UZS17# |
90301-11006 |
from US $2.43 |
||
|
32922
|
32922
32922-30800 Tube, Oil Cooler Outlet, No.1[01.2002 - 12.2003] JKS175 |
32922-30800 |
US $27.96 |
||
|
32922
|
32922
32922-30840 Tube, Oil Cooler Outlet, No.1[08.2001 - 01.2002] JKS175 |
32922-30840 |
US $27.96 |
||
|
32922A
|
32922A
90445-17106 Hose(For Oil Cooler Inlet)[08.2001 - 12.2003] JKS175 |
90445-17106 |
from US $16.26 |
||
|
32923B
|
32923B
32929-51010 Clamp, Automatic Transmission Oil Cooler Tube, No.1[08.2001 -] JKS175,JZS171,173,175,179..D4,TWC |
32929-51010 |
US $6.41 |
||
|
32923C
|
32923C
32924-30270 Clamp, Automatic Transmission Oil Cooler Tube, No.4[08.2001 - 12.2003] JKS175 |
32924-30270 |
US $8.01 |
||
|
32923D
|
32923D
32929-22050 Clamp, Automatic Transmission Oil Cooler Tube[08.2001 - 12.2003] JKS175 |
32929-22050 |
US $5.74 |
||
|
32923K
|
32923K
32923-30190 Clamp, Automatic Transmission Oil Cooler Tube, No.4[08.2001 -] JKS175,JZS171,175..D4 |
32923-30190 |
US $5.24 |
||
|
32923L
|
32923L
32929-50020 Clamp, Automatic Transmission Oil Cooler Tube, No.1[08.2001 -] JKS175,JZS175,177 |
32929-50020 |
US $3.49 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.2001 - 12.2003] JKS175 長さ＝３５，内径＝１０ |
32926-30020 |
US $3.05 |
||
|
35034
|
35034
35034-30010 Elbow Sub-Assy, Oil Pump Delivery W/hose[08.2001 - 08.2003] JKS175 |
35034-30010 |
US $109.20 |
||
| replacement | |||||
|
35034
|
35034
35034-30011 Elbow Sub-Assy, Oil Pump Delivery W/hose[08.2001 - 08.2003] JKS175 |
35034-30011 |
US $109.20 |
||
|
35034
|
35034
35034-30011 Elbow Sub-Assy, Oil Pump Delivery W/hose[08.2003 - 12.2003] JKS175 |
35034-30011 |
US $109.20 |
||
|
35034A
|
35034A
90301-15004 Ring, O(For Oil Cooler Tube Union)[08.2001 - 12.2003] JKS175 |
90301-15004 |
from US $1.52 |
||
|
35198D
|
35198D
35198-30160 Bracket, Wire Harness Clamp[08.2001 - 12.2003] JKS175 |
35198-30160 |
US $5.53 |
||
|
35391
|
35391
35391-30010 Hose, Oil Pump Suction[08.2001 - 12.2003] JKS175 |
35391-30010 |
US $18.64 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9011906375
|
9011906375
90119-06375 Bolt (For Transmission Housing & Case Setting) |
90119-06375 |
US $1.25 |
||
|
9030106196
|
9030106196
90301-06196 O Ring, Transaxle Case, No.1 |
90301-06196 |
from US $2.15 |
||
|
9030110189
|
9030110189
90301-10189 Ring, O(For Oil Cooler Tube Union) |
90301-10189 |
from US $2.57 |
||
|
9034108001
|
9034108001
90341-08001 Plug, Transaxle Case, No.1 |
90341-08001 |
from US $1.48 |
||
|
9040716010
|
9040716010
90407-16010 Union(For Oil Cooler Tube) |
90407-16010 |
US $9.50 |
||
|
9044511150
|
9044511150
90445-11150 New Genuine Part |
90445-11150 |
US $4.66 |
||
|
9046716022
|
9046716022
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.26 |
||
|
9093003168
|
9093003168
90930-03168 Plug, Breather, No.1 (Atm) |
90930-03168 |
US $6.45 |
||
|
9095904001
|
9095904001
90959-04001 Clip, Fuel Hose |
90959-04001 |
from US $4.30 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9161160832
|
9161160832
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.06 |
||
