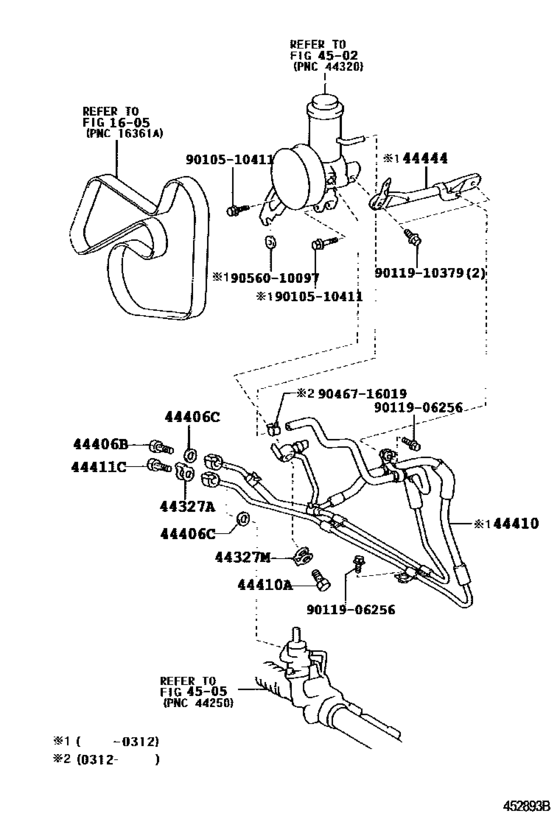

Power Steering Tube ([08.2001 - ] (0108- )JKS175) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- JKS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[08.2001 -] JKS175,JZS17# |
44327-30030 |
from US $1.90 |
||
|
44327M
|
44327M
44327-30040 Gasket, Pressure Port, No.1[08.2001 -] JKS175,JZS17# |
44327-30040 |
from US $1.88 |
||
|
44406B
|
44406B
90401-17005 Bolt, Union(For Return Tube)[08.2002 -] JZS171..TWT;JKS175,JZS173,175,177,179,UZS17# |
90401-17005 |
US $10.57 |
||
|
44406B
|
44406B
96341-11703 Bolt, Union(For Return Tube)[08.2001 - 08.2002] JZS171..TWT;JKS175,JZS173,175,177,179,UZS17# |
96341-11703 |
US $8.01 |
||
| replacement | |||||
|
44406B
|
44406B
90401-17005 Bolt, Union(For Return Tube)[08.2001 - 08.2002] JZS171..TWT;JKS175,JZS173,175,177,179,UZS17# |
90401-17005 |
US $10.57 |
||
|
44406C
|
44406C
90430-17007 Gasket(For Return Tube)[08.2001 -] JZS171..TWT;JKS175,JZS173,175,179 |
90430-17007 |
US $2.33 |
||
|
44410
|
44410
44410-30630 Tube Assy, Pressure Feed[08.2001 - 12.2003] JKS175 |
44410-30630 |
US $512.51 |
||
|
44410A
|
44410A
90401-16034 Bolt, Union(For Pressure Feed Tube)[08.2001 -] JKS175,JZS171,173,175,179 |
90401-16034 |
from US $6.81 |
||
|
44411C
|
44411C
96341-41603 Bolt, Union(For Rear Stabilizer Contorol Tube)[08.2001 -] JKS175,JZS171,173,175,179 |
96341-41603 |
US $5.56 |
||
|
44444
|
44444
44444-30170 Stay, Pump, Rear[08.2001 - 12.2003] JKS175 |
44444-30170 |
US $44.99 |
||
|
9010510411
|
9010510411
90105-10411 BOLT WASHER BASED |
90105-10411 |
US $2.51 |
||
|
9011906256
|
9011906256
90119-06256 BOLT |
90119-06256 |
US $1.79 |
||
|
9011910379
|
9011910379
90119-10379 Bolt, Hexagon(For Rear Caliper) |
90119-10379 |
from US $0.97 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.34 |
||
|
9056010097
|
9056010097
90560-10097 Washer, No.2 (For Center Support Bearing) |
90560-10097 |
US $1.89 |
||
