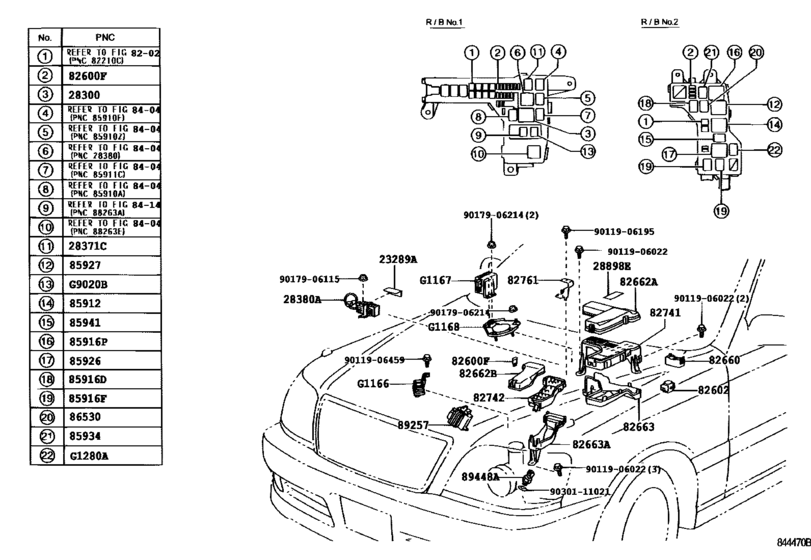

Switch & Relay & Computer ([08.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0108- )JKS175) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- JKS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23289A
|
23289A
23289-50020 Cover, Fuel Pump Resistor[08.2001 -] 1JZGTE,2JZ#,1UZFE..JKS175,JZS171,175,177,179,UZS17# |
23289-50020 |
US $11.36 |
||
|
28300
|
28300
28300-10020 Relay Assy, Starter[08.2001 -] 1GFE,1JZ#,2JZ#,1UZFE..GS171,JKS175,JZS17#,UZS17# |
28300-10020 |
from US $52.38 |
||
|
28371C
|
28371C
90987-02012 Relay, Ignition, No.1[08.2001 - 11.2003] 1JZFSE,1JZGE,2JZFSE..JZS171,173,175..SED;1GFE,1JZGTE,2JZ#..GS171,JKS175,JZS171,179 |
90987-02012 |
from US $25.86 |
||
|
28380A
|
28380A
23080-46100 Resister, Fuel Pump[08.2001 - 12.2003] 2JZFSE..JKS175 |
23080-46100 |
US $80.08 |
||
|
28898E
|
28898E
28898-46030 Label, Battery Information[08.2001 - 12.2003] 2JZFSE..JKS175 |
28898-46030 |
US $3.49 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[08.2001 - 06.2007] GS171,JKS175,JZS17#,UZS17# ５Ａ，ミニ ヒューズ |
90982-09007 |
from US $0.53 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.2001 - 06.2007] GS171,JKS175,JZS17#,UZS17# ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.2001 - 06.2007] GS171,JKS175,JZS17#,UZS17# １０Ａ，ミニ ヒューズ |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.2001 - 06.2007] GS171,JKS175,JZS17#,UZS17# １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $0.48 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.2001 - 06.2007] GS171,JKS175,JZS17#,UZS17# ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.91 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.2001 - 06.2007] GS171,JKS175,JZS17#,UZS17# ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.2001 - 06.2007] GS171,JKS175,JZS17#,UZS17# ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.91 |
||
|
82600F
|
82600F
90982-09018 Fuse, Fuse Block[08.2001 - 12.2003] JKS175 ５Ａ，ミニ ヒューズ,バッテリＪ／Ｂ |
90982-09018 |
US $1.60 |
||
|
82602
|
82602
82602-13010 Block Sub-Assy, Relay[08.2001 - 06.2007] GS171,JKS175,JZS17#,UZS17# |
82602-13010 |
US $16.16 |
||
|
82660
|
82660
82660-28190 Block Assy, Relay, Engine Room[08.2001 - 06.2007] GS171,JKS175,JZS171,175,179 |
82660-28190 |
from US $20.39 |
||
|
82662A
|
82662A
82662-30470 Cover, Relay Block, Upper, No.1[08.2001 - 11.2003] JZS171..TWT;JZS175..SED;GS171,JKS175,JZS179 |
82662-30470 |
US $43.53 |
||
|
82662B
|
82662B
82662-30490 Cover, Relay Block, Upper, No.2[08.2001 - 11.2003] JKS175 |
82662-30490 |
US $41.20 |
||
|
82663
|
82663
82663-30180 Cover, Relay Block, Lower[08.2001 - 06.2007] GS171,JKS175,JZS171,173,175,179 |
82663-30180 |
US $41.64 |
||
|
82663A
|
82663A
82663-30190 Cover, Relay Block, Lower, No.2[08.2001 - 06.2007] GS171,JKS175,JZS171,173,175,179 |
82663-30190 |
US $27.81 |
||
|
82741
|
82741
82741-30060 Block, Engine Room Relay[08.2001 - 06.2007] GS171,JKS175,JZS171,173,175,179 |
82741-30060 |
US $182 |
||
|
82742
|
82742
82742-30060 Block, Engine Room Relay, No.2[08.2001 - 06.2007] GS171,JKS175,JZS171,173,175,179 |
82742-30060 |
US $103.38 |
||
|
82761
|
82761
82761-30030 Bracket, Relay Block, No.1[08.2001 - 06.2007] GS171,JKS175,JZS171,173,175,179 |
82761-30030 |
US $10.19 |
||
|
85912
|
85912
90987-02025 Relay[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90987-02025 |
from US $48.62 |
||
|
85916D
|
85916D
90987-02012 Relay, Ignition, No.1[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90987-02012 |
from US $25.86 |
||
|
85916F
|
85916F
90987-02012 Relay, Ignition, No.1[08.2001 - 10.2005] GS171,JKS175,JZS17#,UZS17# |
90987-02012 |
from US $25.86 |
||
|
85916P
|
85916P
90987-02025 Relay[08.2001 -] GS171,JKS175,JZS171,173,175,179 |
90987-02025 |
from US $48.62 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[08.2001 -] GS171,JKS175,JZS171,173,175,179 |
90987-04010 |
from US $47.20 |
||
|
85927
|
85927
90987-02016
Relay Assy, Starter
[08.2001 - 06.2004] JZS171..TWT;JKS175,UZS17# |
90987-02016 |
— | ||
| replacement | |||||
|
85927
|
85927
90987-02025 Relay[08.2001 - 06.2004] JZS171..TWT;JKS175,UZS17# |
90987-02025 |
from US $48.62 |
||
|
85934
|
85934
90987-02012 Relay, Ignition, No.1[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90987-02012 |
from US $25.86 |
||
|
85941
|
85941
90987-02012 Relay, Ignition, No.1[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90987-02012 |
from US $25.86 |
||
|
86530
|
86530
90987-02012 Relay, Ignition, No.1[08.2001 -] GS171,JKS175,JZS17#,UZS17# |
90987-02012 |
from US $25.86 |
||
|
89257
|
89257
89257-48010 Computer, Cooling Fan[08.2001 - 12.2003] JKS175;JZS171..TWT |
89257-48010 |
US $284.79 |
||
|
89448A
|
89448A
89448-51010 Switch, Power Steering Oil Pressure[08.2001 - 06.2007] JKS175,JZS17# |
89448-51010 |
from US $152.46 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.33 |
||
|
9011906195
|
9011906195
90119-06195 New Genuine Part |
90119-06195 |
US $2.15 |
||
|
9011906459
|
9011906459
90119-06459 New Genuine Part |
90119-06459 |
US $1.51 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017906214
|
9017906214
90179-06214 NUT |
90179-06214 |
from US $0.89 |
||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.11 |
||
|
G1166
|
G1166
G1166-30010 Relay, Oil Pump Motor Controller[08.2001 - 12.2003] JKS175 |
G1166-30010 |
US $64.06 |
||
|
G1167
|
G1167
G1167-30010 Controller, Oil Pump Motor[08.2001 - 12.2003] JKS175 |
G1167-30010 |
US $260.62 |
||
|
G1168
|
G1168
G1168-30010 Bracket, Oil Pump Motor Controller[08.2001 - 12.2003] JKS175 |
G1168-30010 |
US $16.31 |
||
|
G1280A
|
G1280A
90987-02012 Relay, Ignition, No.1[08.2001 - 12.2003] JKS175 |
90987-02012 |
from US $25.86 |
||
|
G9020B
|
G9020B
90987-02022 Relay, Starter Cut[08.2001 - 09.2003] JKS175 |
90987-02022 |
from US $50.45 |
||
|
G9020B
|
G9020B
90987-02028 Relay, Water Pump[09.2003 - 12.2003] JKS175 |
90987-02028 |
from US $48.41 |
||
