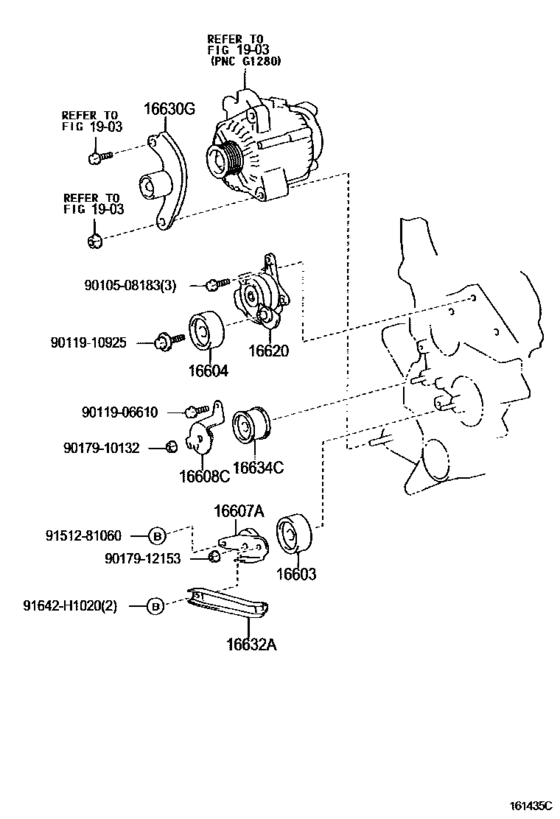

Water Pump ([08.2001 - 12.2003] (0108-0312)2JZFSE..JKS175) Diagram Toyota CROWN/ MAJESTA
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- JKS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2001
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16603
|
16603
16603-46010 Pulley Sub-Assy, Idler, No.1[08.2001 - 12.2003] 2JZFSE..JKS175 |
16603-46010 |
US $104.83 |
||
|
16604
|
16604
16604-46010 Pulley Sub-Assy, Idler, No.2[08.2001 - 12.2003] 2JZFSE..JKS175 |
16604-46010 |
US $123.76 |
||
|
16607A
|
16607A
16607-46010 Bracket Sub-Assy, Idler Pulley, No.1[08.2001 - 12.2003] 2JZFSE..JKS175 |
16607-46010 |
US $36.84 |
||
|
16608C
|
16608C
16608-46010 Bracket Sub-Assy, Idler Pulley, No.2[08.2001 - 12.2003] 2JZFSE..JKS175 |
16608-46010 |
US $19.66 |
||
|
16620
|
16620
16620-46050 Tensioner Assy, V-Ribbed Belt[08.2001 - 12.2003] 2JZFSE..JKS175 |
16620-46050 |
from US $326.34 |
||
|
16630G
|
16630G
16630-46010 Pulley Assy, Idler[08.2001 - 12.2003] 2JZFSE..JKS175 |
16630-46010 |
US $125.22 |
||
|
16632A
|
16632A
16632-46010 Bracket, Idler Pulley, No.2[08.2001 - 12.2003] 2JZFSE..JKS175 |
16632-46010 |
US $34.94 |
||
|
16634C
|
16634C
16634-46010 Collar, Idler Pulley[08.2001 - 12.2003] 2JZFSE..JKS175 |
16634-46010 |
US $91.73 |
||
|
91642H1020
|
91642H1020
91642-H1020
New Genuine Part
|
91642-H1020 |
— | ||
|
9010508183
|
9010508183
90105-08183
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
90105-08183 |
— | ||
| replacement | |||||
|
9010508183
|
9010508183
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9011910925
|
9011910925
90119-10925 New Genuine Part |
90119-10925 |
US $4.22 |
||
|
9017910132
|
9017910132
90179-10132 Nut |
90179-10132 |
from US $0.91 |
||
|
9017912153
|
9017912153
90179-12153 New Genuine Part |
90179-12153 |
US $3.94 |
||
|
9151281060
|
9151281060
91512-81060 New Genuine Part |
91512-81060 |
US $1.18 |
||
