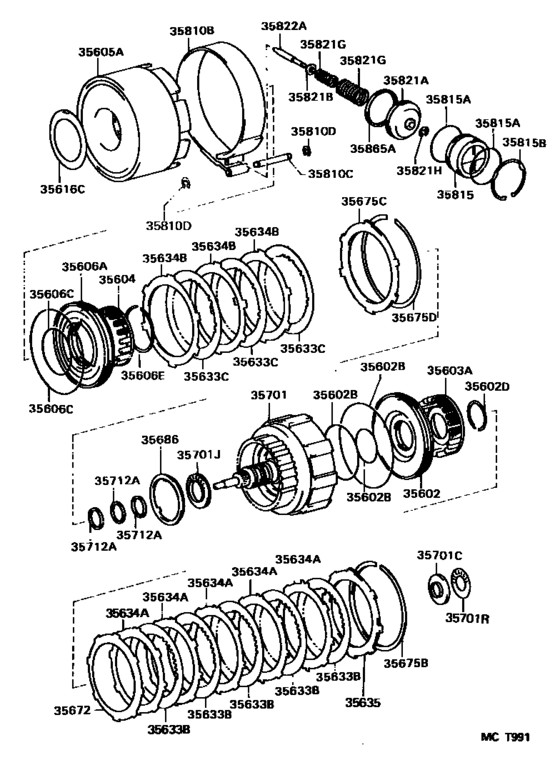

Brake Band & Multiple Disc Clutch (Atm) ([08.1995 - ] A340E,A340H,A341E (9508- )JZS151,153,LS151) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- JZS153
- grade
- ROYEX
- body
- HT
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 09.1999
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35602
|
35602
35602-30062 Piston Sub-Assy, Front Clutch[08.1995 -] JZS151,153,LS151 |
35602-30062 |
US $37.13 |
||
|
35602B
|
35602B
90301-39005 Ring, O (For Forward Clutch Piston)[08.1995 -] JZS15#,LS151,UZS15# 内側 |
90301-39005 |
US $2.97 |
||
|
35602B
|
35602B
90301-72003 Ring, O (For Forward Clutch Piston)[08.1995 -] JZS151,153,LS151 センタ |
90301-72003 |
US $5.59 |
||
|
35602B
|
35602B
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[08.1995 -] JZS15#,LS151,UZS15# 外側 |
90301-99058 |
US $3.58 |
||
|
35602D
|
35602D
90520-35001 Ring, Shaft Snap(For Forward Clutch Piston Return Spring)[08.1995 -] JZS15#,LS151,UZS15# |
90520-35001 |
US $1.46 |
||
|
35603A
|
35603A
35603-30011 Spring Sub-Assy, Forward Clutch Return[08.1995 -] JZS151,153,LS151 |
35603-30011 |
US $8.88 |
||
|
35604
|
35604
35604-35010 Spring Sub-Assy, Direct Clutch Return[08.1995 - 08.1998] JZS15#,LS151,UZS15#..4FC |
35604-35010 |
US $12.96 |
||
|
35605A
|
35605A
35605-35011 Drum Sub-Assy, Direct Clutch[08.1995 - 07.1997] JZS15#,LS151..4FC |
35605-35011 |
US $320.32 |
||
|
35606A
|
35606A
35606-35010 Piston Sub-Assy, Direct Clutch[08.1995 - 08.1998] JZS15#,LS151,UZS15#..4FC |
35606-35010 |
US $35.67 |
||
|
35606C
|
35606C
90301-65005 Ring, O (For Overdrive Direct Clutch Piston)[08.1995 - 01.1997] JZS151,153,LS151 内側 |
90301-65005 |
US $4.80 |
||
| replacement | |||||
|
35606C
|
35606C
90301-65006 Ring, O (For Overdrive Direct Clutch Piston)[08.1995 - 01.1997] JZS151,153,LS151 内側 |
90301-65006 |
US $5.38 |
||
|
35606C
|
35606C
90301-65006 Ring, O (For Overdrive Direct Clutch Piston)[01.1997 - 08.1998] JZS15#,LS151,UZS15# 内側 |
90301-65006 |
US $5.38 |
||
|
35606C
|
35606C
90301-99016 Ring, O (For Overdrive Direct Clutch Piston)[08.1995 - 01.1997] JZS151,153,LS151 外側 |
90301-99016 |
US $14.34 |
||
|
35606C
|
35606C
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[01.1997 - 08.1998] JZS15#,LS151,UZS15#..4FC 外側 |
90301-99058 |
US $3.58 |
||
|
35606E
|
35606E
90520-58001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)[08.1995 - 08.1998] JZS15#,LS151,UZS15# |
90520-58001 |
US $1.89 |
||
|
35616C
|
35616C
35616-30050 Washer, Clutch Drum Thrust (For Direct Clutch Drum)[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
35616-30050 |
US $3.64 |
||
|
35633B
|
35633B
35677-30170 Disc, Clutch (For Forward Multiple Disc Clutch)[08.1995 -] JZS151,153,LS151 |
35677-30170 |
from US $28.86 |
||
|
35633C
|
35633C
35667-30070 Disc, Clutch (For Direct Multiple Disc Clutch)[08.1995 - 08.1998] JZS151,153,LS151 |
35667-30070 |
US $35.47 |
||
|
35634A
|
35634A
35634-30110 Plate, Clutch (For Forward Multiple Disc Clutch)[08.1995 -] JZS15#,LS151 厚さ＝２．３ |
35634-30110 |
US $30.74 |
||
|
35634B
|
35634B
35647-30011 Plate, Clutch (For Direct Multiple Disc Clutch)[08.1995 - 08.1998] JZS151,153,LS151 厚さ＝２．３ |
35647-30011 |
US $32.18 |
||
|
35635
|
35635
35635-30020 Flange, Forward Clutch[08.1995 -] JZS151,153,LS151 厚さ＝４．２０，マーク ６３ |
35635-30020 |
US $54.16 |
||
| replacement | |||||
|
35635
|
35635
35635-30100 Flange, Forward Clutch[08.1995 -] JZS151,153,LS151 厚さ＝４．２０，マーク ６３ |
35635-30100 |
US $34.07 |
||
|
35635
|
35635
35635-30030 Flange, Forward Clutch[08.1995 -] JZS151,153,LS151 厚さ＝４．４０，マーク ６４ |
35635-30030 |
US $54.16 |
||
| replacement | |||||
|
35635
|
35635
35635-30110 Flange, Forward Clutch[08.1995 -] JZS151,153,LS151 厚さ＝４．４０，マーク ６４ |
35635-30110 |
US $34.07 |
||
|
35635
|
35635
35635-50010 Flange, Forward Clutch[08.1995 - 09.1999] JZS15#,LS151,UZS15# 厚さ＝４．００，マーク ４２ |
35635-50010 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30040 Flange, Forward Clutch[08.1995 - 09.1999] JZS15#,LS151,UZS15# 厚さ＝４．００，マーク ４２ |
35635-30040 |
US $26.38 |
||
|
35635
|
35635
35635-50020 Flange, Forward Clutch[08.1995 - 09.1999] JZS15#,LS151,UZS15# 厚さ＝３．８０，マーク ４４ |
35635-50020 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30050 Flange, Forward Clutch[08.1995 - 09.1999] JZS15#,LS151,UZS15# 厚さ＝３．８０，マーク ４４ |
35635-30050 |
US $27.08 |
||
|
35635
|
35635
35635-50030 Flange, Forward Clutch[08.1995 - 09.1999] JZS15#,LS151,UZS15# 厚さ＝３．６０，マーク ６２ |
35635-50030 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30060 Flange, Forward Clutch[08.1995 - 09.1999] JZS15#,LS151,UZS15# 厚さ＝３．６０，マーク ６２ |
35635-30060 |
US $31.45 |
||
|
35635
|
35635
35635-50040 Flange, Forward Clutch[08.1995 - 09.1999] JZS15#,LS151,UZS15# 厚さ＝３．４０，マーク ４５ |
35635-50040 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30070 Flange, Forward Clutch[08.1995 - 09.1999] JZS15#,LS151,UZS15# 厚さ＝３．４０，マーク ４５ |
35635-30070 |
US $27.08 |
||
|
35635
|
35635
35635-50050 Flange, Forward Clutch[08.1995 - 09.1999] JZS15#,LS151,UZS15# 厚さ＝３．２０，マーク ６０ |
35635-50050 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30080 Flange, Forward Clutch[08.1995 - 09.1999] JZS15#,LS151,UZS15# 厚さ＝３．２０，マーク ６０ |
35635-30080 |
US $27.08 |
||
|
35635
|
35635
35635-50060 Flange, Forward Clutch[08.1995 -] JZS15#,LS151,UZS15# 厚さ＝３．００，マーク ６１ |
35635-50060 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30090 Flange, Transfer Direct Clutch[08.1995 -] JZS15#,LS151,UZS15# 厚さ＝３．００，マーク ６１ |
35635-30090 |
US $27.08 |
||
|
35672
|
35672
35672-30010 Plate, Clutch Cushion[08.1995 -] JZS151,153,LS151 |
35672-30010 |
US $15.90 |
||
|
35675B
|
35675B
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[08.1995 -] JZS15#,LS151,UZS15# |
90521-99001 |
US $4.54 |
||
|
35675C
|
35675C
35675-30051 Flange, Direct Clutch[08.1995 - 07.1997] JZS15#,LS151,UZS15# 厚さ＝３．６ |
35675-30051 |
US $69.01 |
||
|
35675C
|
35675C
35675-30061 Flange, Direct Clutch[08.1995 - 07.1997] JZS15#,LS151,UZS15# 厚さ＝３．５ |
35675-30061 |
US $69.01 |
||
|
35675C
|
35675C
35675-30071 Flange, Direct Clutch[08.1995 - 07.1997] JZS15#,LS151,UZS15# 厚さ＝３．４ |
35675-30071 |
US $69.01 |
||
|
35675C
|
35675C
35675-30081 Flange, Direct Clutch[08.1995 - 07.1997] JZS15#,LS151,UZS15# 厚さ＝３．３ |
35675-30081 |
US $69.01 |
||
|
35675C
|
35675C
35675-30091 Flange, Direct Clutch[08.1995 - 07.1997] JZS15#,LS151,UZS15#..4FC 厚さ＝３．２ |
35675-30091 |
US $69.01 |
||
|
35675C
|
35675C
35675-30101 Flange, Direct Clutch[08.1995 - 07.1997] JZS15#,LS151,UZS155..4FC 厚さ＝３．１ |
35675-30101 |
US $69.01 |
||
|
35675C
|
35675C
35675-30111 Flange, Direct Clutch[08.1995 - 07.1997] JZS15#,LS151..4FC 厚さ＝３．０ |
35675-30111 |
US $69.01 |
||
|
35675C
|
35675C
35675-30120 Flange, Direct Clutch[08.1995 - 07.1997] JZS15#,LS151,UZS15# 厚さ＝３．７ |
35675-30120 |
US $69.01 |
||
|
35675C
|
35675C
35675-30130 Flange, Direct Clutch[09.1996 - 07.1997] JZS155..ROYT;JZS151,153,UZS15# 厚さ＝３．８ |
35675-30130 |
US $81.54 |
||
|
35675D
|
35675D
90521-99032 Ring, Hole Snap (For Direct Clutch Flange)[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
90521-99032 |
US $3.49 |
||
|
35686
|
35686
35686-30010 Washer, Clutch Drum Thrust (For Input Shaft)[08.1995 - 08.1998] JZS15#,LS151,UZS15# |
35686-30010 |
US $3.79 |
||
|
35701
|
35701
35701-22070 Shaft Sub-Assy, Input[12.1995 -] JZS153 |
35701-22070 |
US $407.68 |
||
|
35701C
|
35701C
35789-30110 Race, Thrust Bearing (For Input Shaft Rear)[08.1995 -] JZS151,153,155,LS151,UZS151,157..4FC |
35789-30110 |
US $7.72 |
||
|
35701J
|
35701J
90374-33001 Bearing, Thrust Needle Roller (For Input Shaft Front)[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
90374-33001 |
US $15.87 |
||
|
35701R
|
35701R
90374-25005 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[08.1995 -] JZS151,153,155,LS151,UZS151,157..4FC |
90374-25005 |
US $13.25 |
||
|
35712A
|
35712A
35712-30020 Ring, Input Shaft Oil Seal[08.1995 -] JZS15#,LS151,UZS15# |
35712-30020 |
US $5.59 |
||
|
35810B
|
35810B
35810-50010 Band Assy, 2Nd Coast Brake[12.1995 - 09.1996] JZS153 |
35810-50010 |
US $107.74 |
||
|
35810B
|
35810B
35810-50020 Band Assy, 2Nd Coast Brake[09.1996 - 07.1997] JZS151,153,LS151,UZS15# |
35810-50020 |
US $90.20 |
||
|
35810C
|
35810C
90249-07011 Pin (For 2Nd Coast Brake Band)[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
90249-07011 |
US $2.80 |
||
|
35810D
|
35810D
96160-00500 Ring, E(For Over Center Lever)[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
96160-00500 |
from US $0.84 |
||
|
35815
|
35815
35815-22010 Cover, 2Nd Coast Brake[07.1997 -] JZS155..ROYT;JZS151,153,UZS151,157 |
35815-22010 |
US $10.13 |
||
|
35815
|
35815
35815-30010 Cover, 2Nd Coast Brake[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
35815-30010 |
US $11.50 |
||
|
35815A
|
35815A
90301-48001 Ring, O (For 2Nd Coast Brake Cover)[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
90301-48001 |
US $4.66 |
||
|
35815B
|
35815B
90521-60003 Ring, Hole Snap (For 2Nd Coast Brake Cover)[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
90521-60003 |
from US $1.40 |
||
|
35821A
|
35821A
35821-22020 Piston, 2Nd Coast Brake[07.1997 -] JZS155..ROYT;JZS151,153,UZS151,157 |
35821-22020 |
US $12.41 |
||
|
35821A
|
35821A
35821-30020
Piston, 2Nd Coast Brake
[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
35821-30020 |
— | ||
|
35821B
|
35821B
90201-06557 Washer, Plate (For 2Nd Coast Brake Piston)[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
90201-06557 |
US $0.96 |
||
|
35821G
|
35821G
90501-26024 Spring, Compression (For 2Nd Coast Brake Piston)[08.1995 - 07.1997] JZS15#,LS151,UZS15# 外側 |
90501-26024 |
US $6.29 |
||
|
35821G
|
35821G
90501-27009
Spring, Compression (For 2Nd Coast Brake Piston)
[08.1995 - 07.1997] JZS15#,LS151,UZS15# 内側 |
90501-27009 |
— | ||
|
35821G
|
35821G
90501-32037 Spring, Compression (For 2Nd Coast Brake Piston)[07.1997 -] JZS155..ROYT;JZS151,153,UZS151,157 |
90501-32037 |
US $0.96 |
||
|
35821H
|
35821H
96160-00500 Ring, E(For Over Center Lever)[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
96160-00500 |
from US $0.84 |
||
|
35822A
|
35822A
35822-22010 Rod, 2Nd Coast Brake Piston[07.1997 -] JZS155..ROYT;JZS151,153,UZS151,157 長さ＝７８．４ |
35822-22010 |
US $3.35 |
||
|
35822A
|
35822A
35822-22020 Rod, 2Nd Coast Brake Piston[07.1997 -] JZS155..ROYT;JZS151,153,UZS151,157 長さ＝７９．９ |
35822-22020 |
US $3.35 |
||
|
35822A
|
35822A
35822-32010 Rod, 2Nd Coast Brake Piston[08.1995 - 07.1997] JZS15#,LS151,UZS15# 長さ＝７０．９ |
35822-32010 |
US $8.44 |
||
|
35822A
|
35822A
35822-32020 Rod, 2Nd Coast Brake Piston[08.1995 - 07.1997] JZS15#,LS151,UZS15#..4FC 長さ＝７２．４ |
35822-32020 |
US $8.44 |
||
|
35865A
|
35865A
35865-30010 Ring, 2Nd Coast Brake Piston Oil Seal[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
35865-30010 |
US $8.39 |
||
