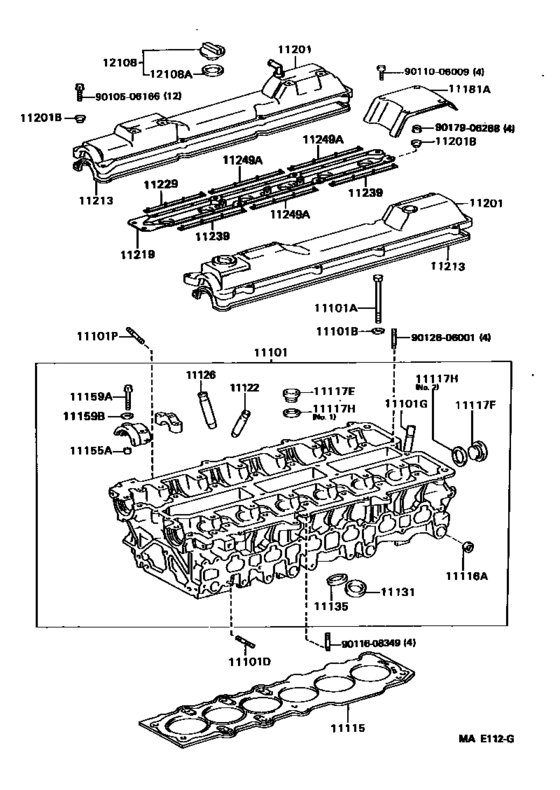

Cylinder Head ([08.1995 - 09.1996] (9508-9609)1JZGE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- JZS153
- grade
- ROYEX
- body
- HT
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 09.1999
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-49318 Head Sub-Assy, Cylinder[08.1995 - 09.1996] 1JZGE..JZS151,153 |
11101-49318 |
US $2,620.80 |
||
|
11101
|
11101
11101-49395 Head Sub-Assy, Cylinder[09.1996 - 09.1999] 1JZGE..JZS151,153 |
11101-49395 |
US $2,649.92 |
||
|
11101A
|
11101A
90910-02102 Bolt(For Cylinder Head Set)[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# |
90910-02102 |
from US $16.59 |
||
|
11101B
|
11101B
90201-11018
Washer, Plate(For Cylinder Head Set)
[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# |
90201-11018 |
— | ||
| replacement | |||||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# |
90201-11034 |
from US $0.90 |
||
|
11101D
|
11101D
90116-08348 Bolt, Stud(For Water Outlet)[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# |
90116-08348 |
from US $1.65 |
||
|
11101G
|
11101G
90406-17017 Union(For Cylinder Head)[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# |
90406-17017 |
US $5.07 |
||
|
11101P
|
11101P
90116-08348 Bolt, Stud(For Water Outlet)[08.1995 - 09.1996] 1JZGE..JZS151,153 |
90116-08348 |
from US $1.65 |
||
|
11115
|
11115
11115-46043
Gasket, Cylinder Head
[08.1995 - 09.1996] 1JZGE,2JZGE..JZS15# |
11115-46043 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-46045 Gasket, Cylinder Head[08.1995 - 09.1996] 1JZGE,2JZGE..JZS15# |
11115-46045 |
from US $83.81 |
||
|
11115
|
11115
11115-46044
Gasket, Cylinder Head
[09.1996 - 02.1999] 1JZGE,2JZGE..JZS15# |
11115-46044 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-46045 Gasket, Cylinder Head[09.1996 - 02.1999] 1JZGE,2JZGE..JZS15# |
11115-46045 |
from US $83.81 |
||
|
11115
|
11115
11115-46045 Gasket, Cylinder Head[02.1999 - 09.1999] 1JZGE,2JZGE..JZS15# |
11115-46045 |
from US $83.81 |
||
|
11116A
|
11116A
96411-42000 Plug, Tight, No.1[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# |
96411-42000 |
from US $2.73 |
||
|
11117E
|
11117E
90341-24010 Plug, W/head Taper Screw, No.1[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# |
90341-24010 |
US $4.72 |
||
|
11117F
|
11117F
90341-36001 Plug, W/head Taper Screw, No.1[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# |
90341-36001 |
US $6.27 |
||
|
11117H
|
11117H
90430-24010 Gasket(For Cylinder Head Screw Plug)[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# ＮＯ．１ |
90430-24010 |
US $3.58 |
||
|
11117H
|
11117H
90430-36003 Gasket(For Water Hole)[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# ＮＯ．２ |
90430-36003 |
US $2.33 |
||
|
11122
|
11122
11122-74030 Bush, Intake Valve Guide[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# ＳＴＤ |
11122-74030 |
US $9.86 |
||
|
11122
|
11122
11123-74030 Bush, Intake Valve Guide[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# Ｏ／Ｓ ０．０５ |
11123-74030 |
US $7.86 |
||
|
11126
|
11126
11122-16010
Bush, Intake Valve Guide
[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# ＳＴＤ |
11122-16010 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-16020 Bush, Intake Valve Guide[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# ＳＴＤ |
11122-16020 |
from US $10.26 |
||
|
11126
|
11126
11123-16010 Bush, Intake Valve Guide[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# Ｏ／Ｓ ０．０５ |
11123-16010 |
US $11.36 |
||
|
11131
|
11131
11131-46020
Seat, Intake Valve
[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# ＳＴＤ |
11131-46020 |
— | ||
| replacement | |||||
|
11131
|
11131
11131-46060 Seat, Intake Valve[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# ＳＴＤ |
11131-46060 |
US $36.34 |
||
|
11131
|
11131
11132-46020
Seat, Intake Valve
[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# Ｏ／Ｓ ０．０３ |
11132-46020 |
— | ||
| replacement | |||||
|
11131
|
11131
11132-46060 Seat, Intake Valve[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# Ｏ／Ｓ ０．０３ |
11132-46060 |
US $34.65 |
||
|
11135
|
11135
11135-46020 Seat, Exhaust Valve[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# ＳＴＤ |
11135-46020 |
US $28.54 |
||
|
11135
|
11135
11136-46020 Seat, Exhaust Valve[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# Ｏ／Ｓ ０．０３ |
11136-46020 |
US $28.54 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# |
90253-11021 |
from US $1.44 |
||
|
11159A
|
11159A
90119-08890 Bolt(For Head To Camshaft Bearing Cap)[09.1996 - 09.1999] 1JZGE,2JZGE..JZS15# |
90119-08890 |
US $2.87 |
||
|
11159B
|
11159B
90210-08033 Washer, Seal(For Head To Camshaft Bearing Cap)[08.1995 - 09.1999] 1JZGE,2JZGE..JZS15# |
90210-08033 |
US $5.02 |
||
|
11181A
|
11181A
11181-46022 Cover, Cylinder Head, Rear[08.1995 - 09.1996] 1JZGE..JZS151,153 |
11181-46022 |
US $20.79 |
||
|
11201
|
11201
11201-0W050 Cover Sub-Assy, Cylinder Head[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 900ｸﾞﾗﾑ),インテーク側 |
11201-0W050 |
US $591.14 |
||
| replacements | |||||
|
11201
|
11201
11201-46064 Cover Sub-Assy, Cylinder Head[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 900ｸﾞﾗﾑ),インテーク側 |
11201-46064 |
US $341.64 |
||
|
11201
|
11201
11202-46033 Cover Sub-Assy, Cylinder Head[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 900ｸﾞﾗﾑ),インテーク側 |
11202-46033 |
US $341.64 |
||
|
11201
|
11201
90126-06002 New Genuine Part[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 900ｸﾞﾗﾑ),インテーク側 |
90126-06002 |
US $2.69 |
||
|
11201
|
11201
90179-06288 NUT[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 900ｸﾞﾗﾑ),インテーク側 |
90179-06288 |
from US $0.86 |
||
|
11201
|
11201
91631-B0630 BOLT WWASHER[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 900ｸﾞﾗﾑ),インテーク側 |
91631-B0630 |
US $2.69 |
||
|
11201
|
11201
12204-46031 Valve Sub-Assy, Ventilation[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 900ｸﾞﾗﾑ),インテーク側 |
12204-46031 |
from US $23.15 |
||
|
11201
|
11201
11201-46030 Cover Sub-Assy, Cylinder Head[08.1995 - 09.1996] 1JZGE..JZS151,153 左側 |
11201-46030 |
US $294.11 |
||
| replacements | |||||
|
11201
|
11201
11201-46032 Cover Sub-Assy, Cylinder Head[08.1995 - 09.1996] 1JZGE..JZS151,153 左側 |
11201-46032 |
US $294.11 |
||
|
11201
|
11201
12204-46031 Valve Sub-Assy, Ventilation[08.1995 - 09.1996] 1JZGE..JZS151,153 左側 |
12204-46031 |
from US $23.15 |
||
|
11201
|
11201
11201-46062 Cover Sub-Assy, Cylinder Head[08.1999 - 01.2000] 1JZGE,2JZGE..JZS151,153,155 インテーク側 |
11201-46062 |
US $294.11 |
||
| replacements | |||||
|
11201
|
11201
11201-46064 Cover Sub-Assy, Cylinder Head[08.1999 - 01.2000] 1JZGE,2JZGE..JZS151,153,155 インテーク側 |
11201-46064 |
US $341.64 |
||
|
11201
|
11201
90126-06002 New Genuine Part[08.1999 - 01.2000] 1JZGE,2JZGE..JZS151,153,155 インテーク側 |
90126-06002 |
US $2.69 |
||
|
11201
|
11201
90179-06288 NUT[08.1999 - 01.2000] 1JZGE,2JZGE..JZS151,153,155 インテーク側 |
90179-06288 |
from US $0.86 |
||
|
11201
|
11201
91631-B0630 BOLT WWASHER[08.1999 - 01.2000] 1JZGE,2JZGE..JZS151,153,155 インテーク側 |
91631-B0630 |
US $2.69 |
||
|
11201
|
11201
12204-46031 Valve Sub-Assy, Ventilation[08.1999 - 01.2000] 1JZGE,2JZGE..JZS151,153,155 インテーク側 |
12204-46031 |
from US $23.15 |
||
|
11201
|
11201
11202-0W050 Cover Sub-Assy, Cylinder Head[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ),エキゾースト側 |
11202-0W050 |
US $591.14 |
||
| replacements | |||||
|
11201
|
11201
11201-46064 Cover Sub-Assy, Cylinder Head[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ),エキゾースト側 |
11201-46064 |
US $341.64 |
||
|
11201
|
11201
11202-46033 Cover Sub-Assy, Cylinder Head[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ),エキゾースト側 |
11202-46033 |
US $341.64 |
||
|
11201
|
11201
90126-06002 New Genuine Part[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ),エキゾースト側 |
90126-06002 |
US $2.69 |
||
|
11201
|
11201
90179-06288 NUT[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ),エキゾースト側 |
90179-06288 |
from US $0.86 |
||
|
11201
|
11201
91631-B0630 BOLT WWASHER[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ),エキゾースト側 |
91631-B0630 |
US $2.69 |
||
|
11201
|
11201
12204-46031 Valve Sub-Assy, Ventilation[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# (ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ),エキゾースト側 |
12204-46031 |
from US $23.15 |
||
|
11201
|
11201
11202-46010 Cover Sub-Assy, Cylinder Head[08.1995 - 09.1996] 1JZGE..JZS151,153 右側 |
11202-46010 |
US $294.11 |
||
|
11201
|
11201
11202-46032 Cover Sub-Assy, Cylinder Head[08.1999 - 01.2000] 1JZGE,2JZGE..JZS151,153,155 エキゾースト側 |
11202-46032 |
US $294.11 |
||
| replacements | |||||
|
11201
|
11201
11202-46033 Cover Sub-Assy, Cylinder Head[08.1999 - 01.2000] 1JZGE,2JZGE..JZS151,153,155 エキゾースト側 |
11202-46033 |
US $341.64 |
||
|
11201
|
11201
90126-06002 New Genuine Part[08.1999 - 01.2000] 1JZGE,2JZGE..JZS151,153,155 エキゾースト側 |
90126-06002 |
US $2.69 |
||
|
11201
|
11201
90179-06288 NUT[08.1999 - 01.2000] 1JZGE,2JZGE..JZS151,153,155 エキゾースト側 |
90179-06288 |
from US $0.86 |
||
|
11201
|
11201
91631-B0630 BOLT WWASHER[08.1999 - 01.2000] 1JZGE,2JZGE..JZS151,153,155 エキゾースト側 |
91631-B0630 |
US $2.69 |
||
|
11201B
|
11201B
90210-07001 Washer, Seal(For Cylinder Head Cover)[08.1995 - 09.1996] 1JZGE..JZS151,153 |
90210-07001 |
from US $2.03 |
||
|
11213
|
11213
11213-46020 Gasket, Cylinder Head Cover (Intake side)[08.1995 - 09.1996] 1JZGE..JZS151,153 インテーク側 |
11213-46020 |
from US $17.20 |
||
|
11213
|
11213
11213-46030 Gasket, Cylinder Head Cover (Intake side)[09.1996 - 08.1999] 1JZGE,2JZGE..JZS15# インテーク側 |
11213-46030 |
from US $14.84 |
||
|
11213
|
11213
11214-46011 Gasket, Cylinder Head Cover (Exhaust side)[08.1995 - 08.1999] 1JZGE,2JZGE..JZS15# エキゾースト側 |
11214-46011 |
from US $17.45 |
||
|
11219
|
11219
11219-46011 Cover, Cylinder Head, No.3[08.1995 - 09.1996] 1JZGE..JZS151,153 |
11219-46011 |
US $126.67 |
||
|
11229
|
11229
11229-46010 Gasket, Cylinder Head Cover, No.3[08.1995 - 09.1996] 1JZGE..JZS151,153 |
11229-46010 |
US $4.54 |
||
|
11239
|
11239
11239-46010 Gasket, Clinder Head Coner, No.4[08.1995 - 09.1996] 1JZGE..JZS151,153 |
11239-46010 |
from US $1.60 |
||
|
11249A
|
11249A
11249-46010 Gasket, Clinder Head Coner, No.5[08.1995 - 09.1996] 1JZGE..JZS151,153 |
11249-46010 |
from US $1.54 |
||
|
12108
|
12108
12180-20030 Cap Sub-Assy, Oil Filler[08.1996 - 09.1999] 1JZGE,2JZGE..JZS15# |
12180-20030 |
from US $14.47 |
||
|
12108
|
12108
12180-46010 Cap Sub-Assy, Oil Filler[08.1995 - 07.1996] 1JZGE,2JZGE..JZS15# |
12180-46010 |
from US $14.74 |
||
|
12108A
|
12108A
12195-20020 Gasket(For Oil Filler Cap)[08.1996 - 09.1999] 1JZGE,2JZGE..JZS15# |
12195-20020 |
from US $2.73 |
||
|
12108A
|
12108A
12195-46011 Gasket(For Oil Filler Cap)[08.1995 - 08.1996] 1JZGE,2JZGE..JZS15# |
12195-46011 |
from US $4.10 |
||
|
9010506166
|
9010506166
90105-06166 BOLT, WASHER BASED |
90105-06166 |
from US $1.01 |
||
|
9011006009
|
9011006009
90110-06009 Bolt |
90110-06009 |
from US $0.66 |
||
|
9011608349
|
9011608349
90116-08349 New Genuine Part |
90116-08349 |
US $0.61 |
||
|
9012606001
|
9012606001
90126-06001 STUD HEX LOBULAR |
90126-06001 |
US $2.87 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
from US $0.86 |
||
