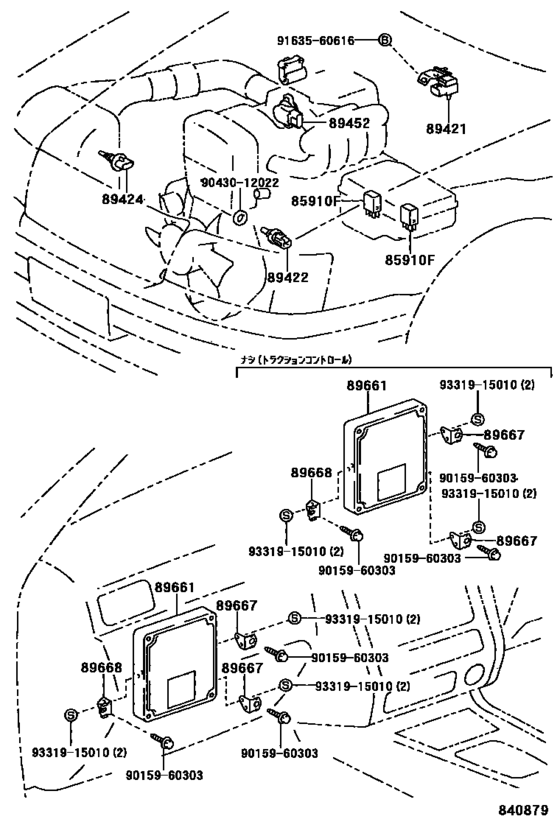

Electronic Fuel Injection System ([08.1995 - ] (9508- )JZS151,153) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- JZS153
- grade
- ROYEX
- body
- HT
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 09.1999
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[12.1995 -] JZS153 |
90987-02012 |
from US $26.54 |
||
|
89421
|
89421
89420-22200
Sensor Assy, Vacuum
[08.1995 - 09.1996] GS151,JZS151,153..HTWC,TWC |
89420-22200 |
— | ||
|
89421
|
89421
89421-30100
Sensor Assy, Vacuum
[09.1996 -] JZS15# |
89421-30100 |
— | ||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1995 - 08.1998] GS151,JZS15#,UZS15# |
89422-20010 |
from US $40.66 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[08.1995 -] GS151,JZS15# |
89424-12010 |
from US $57.97 |
||
|
89452
|
89452
89452-20130 Sensor, Throttle Position (For E.f.i.)[09.1996 -] JZS151,153 |
89452-20130 |
from US $64.68 |
||
|
89452
|
89452
89452-22090 Sensor, Throttle Position[08.1995 - 09.1996] JZS15#,UZS15# |
89452-22090 |
from US $131.47 |
||
|
89661
|
89661
89661-3A070 Computer, Engine Control[12.1995 - 09.1996] JZS153 |
89661-3A070 |
US $2,082.08 |
||
|
89661
|
89661
89661-3A220 Computer, Engine Control[09.1996 - 07.1997] JZS153 |
89661-3A220 |
US $2,213.12 |
||
|
89661
|
89661
89661-3A260 Computer, Engine Control[07.1997 - 08.1998] JZS153 |
89661-3A260 |
US $2,518.88 |
||
|
89661
|
89661
89661-3A261 Computer, Engine Control[08.1998 - 01.2001] JZS153 |
89661-3A261 |
US $2,518.88 |
||
|
89667
|
89667
89667-30200 Bracket, Engine Control Computer[08.1995 - 07.1997] JZS151,153 |
89667-30200 |
US $4.08 |
||
|
89667
|
89667
89667-30220 Bracket, Engine Control Computer[07.1997 - 08.1998] UZS151,157;JZS15#,UZS155..4FC |
89667-30220 |
US $4.51 |
||
|
89668
|
89668
89668-30170 Bracket, Engine Control Computer, No.2[08.1995 -] GS151,JZS151,153 |
89668-30170 |
US $4.66 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9043012022
|
9043012022
90430-12022 Gasket(For Manifold Plug) |
90430-12022 |
US $2.87 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
