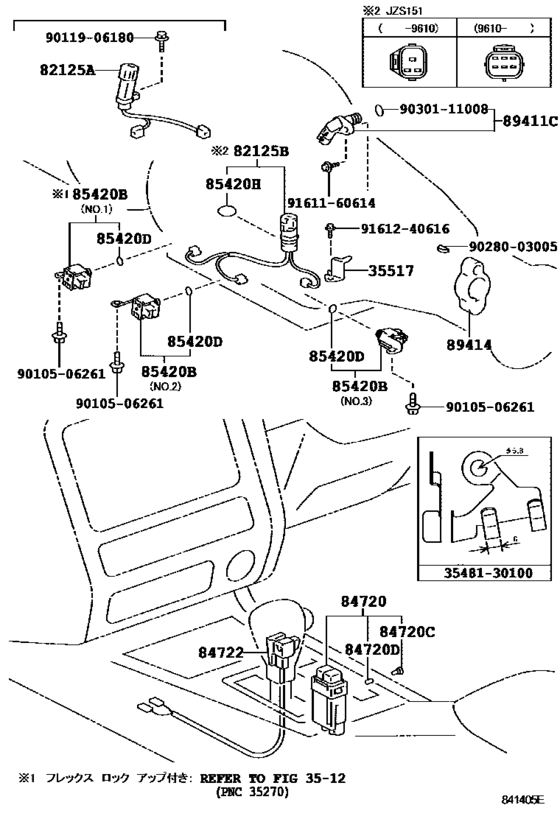

Overdrive & Electronic Controlled Transmission ([08.1995 - ] (9508- )JZS151,153,LS151) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- JZS153
- grade
- ROYEX
- body
- HT
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 09.1999
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35517
|
35517
35517-30010 Plate, Transmission Wire Lock[08.1995 - 09.1996] JZS151,153,LS151 |
35517-30010 |
US $4.37 |
||
|
82125A
|
82125A
82125-30440 Wire, Transmission[11.1995 -] JZS153,157,UZS155 |
82125-30440 |
US $7.57 |
||
|
82125B
|
82125B
82125-22240 Wire, Transmission[09.1996 -] JZS153 |
82125-22240 |
US $17.91 |
||
|
82125B
|
82125B
82125-30400 Wire, Transmission[08.1995 - 09.1996] JZS151,153,LS151 |
82125-30400 |
US $16.07 |
||
|
84720
|
84720
84720-22190 Switch Assy, Pattern Select[11.1995 -] JZS153,UZS155 |
84720-22190 |
US $47.76 |
||
|
84720C
|
84720C
84999-10710 Bulb, Throttle Position Switch[11.1995 -] JZS153,UZS155 |
84999-10710 |
from US $6.16 |
||
|
84720D
|
84720D
84998-10670 Cap, Throttle Position Switch Bulb[11.1995 -] JZS153,UZS155 |
84998-10670 |
US $4.12 |
||
|
84722
|
84722
84722-30190-B1 Switch, Transmission Control[08.1995 - 07.1997] GS151,JZS15#,LS151,UZS15#..ATM DK.BLUE GRAY,TRIM1# |
84722-30190-B1 |
US $42.22 |
||
|
84722
|
84722
84722-30190-E1 Switch, Transmission Control[08.1995 - 07.1997] GS151,JZS15#,LS151,UZS15#..ATM ANTELOPE,TRIM4# |
84722-30190-E1 |
US $42.22 |
||
| replacement | |||||
|
84722
|
84722
84722-30190-B1 Switch, Transmission Control[08.1995 - 07.1997] GS151,JZS15#,LS151,UZS15#..ATM ANTELOPE,TRIM4# |
84722-30190-B1 |
US $42.22 |
||
|
85420B
|
85420B
85420-22150 Solenoid Assy, Transmission[09.1998 - 08.2001] JZS151,153 ＮＯ．３ |
85420-22150 |
US $80.08 |
||
| replacement | |||||
|
85420B
|
85420B
35250-30050 Solenoid Assy, Transmission[09.1998 - 08.2001] JZS151,153 ＮＯ．３ |
35250-30050 |
from US $74.51 |
||
|
85420B
|
85420B
85420-22170 Solenoid Assy, Transmission[09.1998 - 08.2001] JZS151,153 ＮＯ．２ |
85420-22170 |
US $80.08 |
||
| replacement | |||||
|
85420B
|
85420B
35250-30070 Solenoid Assy, Transmission[09.1998 - 08.2001] JZS151,153 ＮＯ．２ |
35250-30070 |
from US $74.51 |
||
|
85420B
|
85420B
85420-24010 Solenoid Assy, Transmission[10.1996 - 09.1998] JZS151,153 ＮＯ．３，ＤＥＮＳＯ |
85420-24010 |
US $80.08 |
||
| replacement | |||||
|
85420B
|
85420B
35250-30050 Solenoid Assy, Transmission[10.1996 - 09.1998] JZS151,153 ＮＯ．３，ＤＥＮＳＯ |
35250-30050 |
from US $74.51 |
||
|
85420B
|
85420B
85420-24020 Solenoid Assy, Transmission[10.1996 - 09.1998] JZS151,153 ＮＯ．３，ＡＩＳＩＮ |
85420-24020 |
US $80.08 |
||
| replacement | |||||
|
85420B
|
85420B
35250-30050 Solenoid Assy, Transmission[10.1996 - 09.1998] JZS151,153 ＮＯ．３，ＡＩＳＩＮ |
35250-30050 |
from US $74.51 |
||
|
85420B
|
85420B
85420-24030 Solenoid Assy, Transmission[10.1996 - 09.1998] JZS151,153 ＮＯ．２，ＤＥＮＳＯ |
85420-24030 |
US $80.08 |
||
| replacement | |||||
|
85420B
|
85420B
35250-30070 Solenoid Assy, Transmission[10.1996 - 09.1998] JZS151,153 ＮＯ．２，ＤＥＮＳＯ |
35250-30070 |
from US $74.51 |
||
|
85420B
|
85420B
85420-24040 Solenoid Assy, Transmission[10.1996 - 09.1998] JZS151,153 ＮＯ．２，ＡＩＳＩＮ |
85420-24040 |
US $80.08 |
||
| replacement | |||||
|
85420B
|
85420B
35250-30070 Solenoid Assy, Transmission[10.1996 - 09.1998] JZS151,153 ＮＯ．２，ＡＩＳＩＮ |
35250-30070 |
from US $74.51 |
||
|
85420B
|
85420B
85420-30200 Solenoid Assy, Transmission[08.1995 - 10.1996] JZS151,153,LS151 ＮＯ．２，３ |
85420-30200 |
US $216.94 |
||
| replacement | |||||
|
85420B
|
85420B
85420-21090 Solenoid Assy, Transmission[08.1995 - 10.1996] JZS151,153,LS151 ＮＯ．２，３ |
85420-21090 |
from US $153.82 |
||
|
85420B
|
85420B
85420-30220 Solenoid Assy, Transmission[08.1995 - 10.1996] JZS151,153,LS151 ＮＯ．１ |
85420-30220 |
US $218.40 |
||
| replacement | |||||
|
85420B
|
85420B
35250-50030 Valve, Solenoid(S4)[08.1995 - 10.1996] JZS151,153,LS151 ＮＯ．１ |
35250-50030 |
from US $214.40 |
||
|
85420B
|
85420B
85420-30260
Valve, Solenoid(S4)
[09.1998 - 08.2001] JZS153,LS151 ＮＯ．１，ＤＥＮＳＯ |
85420-30260 |
— | ||
| replacement | |||||
|
85420B
|
85420B
35250-50030 Valve, Solenoid(S4)[09.1998 - 08.2001] JZS153,LS151 ＮＯ．１，ＤＥＮＳＯ |
35250-50030 |
from US $214.40 |
||
|
85420B
|
85420B
85420-30270
Valve, Solenoid(S4)
[09.1998 - 08.2001] JZS153,LS151 ＮＯ．１，ＡＩＳＩＮ |
85420-30270 |
— | ||
| replacement | |||||
|
85420B
|
85420B
35250-50030 Valve, Solenoid(S4)[09.1998 - 08.2001] JZS153,LS151 ＮＯ．１，ＡＩＳＩＮ |
35250-50030 |
from US $214.40 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[08.1995 - 10.1996] JZS155..ROYT;JZS151,153,LS151 |
90301-06004 |
from US $2.15 |
||
|
85420H
|
85420H
96721-24018 Ring, O[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
96721-24018 |
from US $3.78 |
||
|
3548130100
|
3548130100
35481-30100 Body, Governor |
35481-30100 |
US $7.72 |
||
|
9010506261
|
9010506261
90105-06261 Bolt(For Manual Detent Spring) |
90105-06261 |
US $0.73 |
||
|
9011906180
|
9011906180
90119-06180 Bolt (For Stator Shaft) |
90119-06180 |
US $1.02 |
||
|
9028003005
|
9028003005
90280-03005 Key, Oil Pump Drive Shaft |
90280-03005 |
US $1.05 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.90 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161240616
|
9161240616
91612-40616 Bolt, Hexagon(for Steering Column Bracket) |
91612-40616 |
US $2.91 |
||
| replacement | |||||
|
9161240616
|
9161240616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
