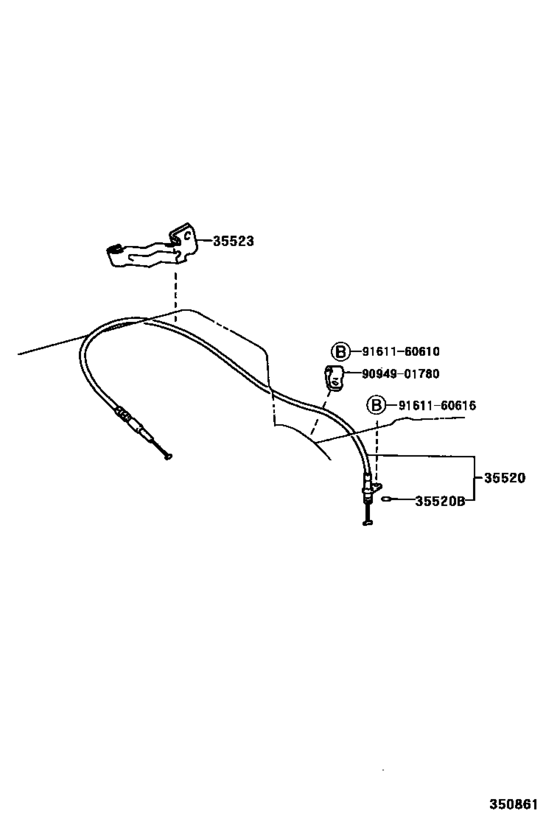

Throttle Link & Valve Lever (Atm) ([08.1995 - ] A340E,A340H (9508- )JZS151,153) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- JZS153
- grade
- ROYEX
- body
- HT
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 09.1999
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35520
|
35520
35520-22251
Cable Assy, Throttle
[08.1995 - 09.1996] JZS151,153 |
35520-22251 |
— | ||
|
35520
|
35520
35520-22290 Cable Assy, Throttle[09.1996 -] JZS151,153 |
35520-22290 |
US $53 |
||
|
35520B
|
35520B
90301-09012 Ring, O (For Automatic Transmission Case Plug)[08.1995 - 07.1997] GS151,JZS151,153,LS151,UZS15#..4FC |
90301-09012 |
US $3.94 |
||
|
35523
|
35523
35523-22100 Clamp, Throttle Cable[08.1995 -] JZS151,153 |
35523-22100 |
US $5.39 |
||
|
9094901780
|
9094901780
90949-01780 New Genuine Part |
90949-01780 |
US $3.20 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
