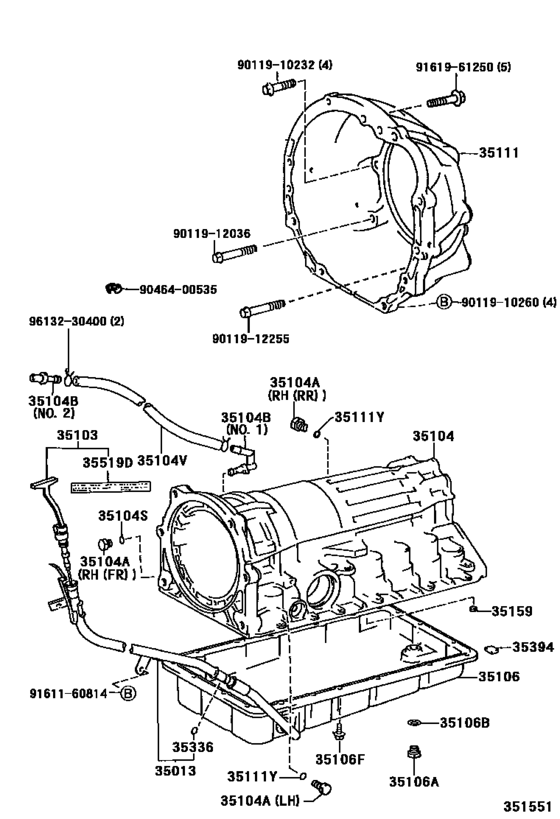

Transmission Case & Oil Pan (Atm) ([12.1995 - ] A340H (9512- )JZS153) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- JZS153
- grade
- ROYEX
- body
- HT
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 09.1999
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35013
|
35013
35013-22450 Tube Sub-Assy, Transmission Oil Filler[12.1995 - 05.1996] JZS153 |
35013-22450 |
US $42.81 |
||
|
35013
|
35013
35013-30440 Tube Sub-Assy, Transmission Oil Filler[05.1996 -] JZS153 |
35013-30440 |
US $40.91 |
||
|
35103
|
35103
35103-22311 Gage Sub-Assy, Transmission Oil Level[12.1995 - 09.1996] JZS153 |
35103-22311 |
US $18.64 |
||
|
35103
|
35103
35103-30540 Gage Sub-Assy, Transmission Oil Level[09.1996 - 05.1997] JZS153 |
35103-30540 |
US $18.35 |
||
| replacement | |||||
|
35103
|
35103
35103-30541 Gage Sub-Assy, Transmission Oil Level[09.1996 - 05.1997] JZS153 |
35103-30541 |
US $18.64 |
||
|
35103
|
35103
35103-30541 Gage Sub-Assy, Transmission Oil Level[05.1997 -] JZS153 |
35103-30541 |
US $18.64 |
||
|
35104
|
35104
35104-35011
Case Sub-Assy, Automatic Transmission
[12.1995 -] JZS153 |
35104-35011 |
— | ||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[12.1995 -] JZS153,157 右側（リア） 又は 左側 |
90341-08001 |
from US $1.52 |
||
|
35104A
|
35104A
90341-14011 Plug, Automatic Transmission Case[12.1995 -] JZS153,157 右側（フロント） |
90341-14011 |
from US $3.22 |
||
|
35104B
|
35104B
90930-03098 Plug, Breather, No.1 (Atm)[08.1995 - 09.1996] JZS153,155,LS151 ＮＯ．１ |
90930-03098 |
from US $7.20 |
||
|
35104B
|
35104B
90930-03099 Plug, Breather, No.1 (Atm)[08.1995 - 09.1996] JZS153,155,LS151 ＮＯ．２ |
90930-03099 |
US $7.86 |
||
|
35104S
|
35104S
90301-11006 O Ring, Transaxle Case Elbow[12.1995 -] JZS153,157 |
90301-11006 |
from US $2.50 |
||
|
35104V
|
35104V
90445-10020 Hose (For Breather Plug)[09.1996 -] JZS15#;UZS151,157..5FC |
90445-10020 |
US $4.54 |
||
|
35104V
|
35104V
90445-11118 Hose (For Breather Plug)[08.1995 - 09.1996] JZS153,LS151 |
90445-11118 |
US $4.89 |
||
|
35106
|
35106
35106-22081 Pan Sub-Assy, Automatic Transmission Oil[12.1995 -] JZS153,157 |
35106-22081 |
US $99.01 |
||
|
35106A
|
35106A
90341-10017
Plug Sub-Assy, Drain (Atm)
[08.1995 - 09.1996] JZS153,155,UZS155..4FC |
90341-10017 |
— | ||
| replacements | |||||
|
35106A
|
35106A
35178-30010 Drain Plug Gasket[08.1995 - 09.1996] JZS153,155,UZS155..4FC |
35178-30010 |
US $3.40 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.1995 - 09.1996] JZS153,155,UZS155..4FC |
90341-10011 |
from US $1.79 |
||
|
35106A
|
35106A
90341-10018
Plug Sub-Assy, Drain (Atm)
[07.1997 - 08.1998] JZS15#,UZS15# |
90341-10018 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[07.1997 - 08.1998] JZS15#,UZS15# |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-50010
Gasket, Drain Plug (Atm)
[08.1995 - 07.1997] JZS153,UZS15# |
35178-50010 |
— | ||
| replacement | |||||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.1995 - 07.1997] JZS153,UZS15# |
35178-30010 |
US $3.40 |
||
|
35106F
|
35106F
90119-06513 Bolt (For Automatic Transmission Oil Pan)[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
90119-06513 |
US $1.61 |
||
|
35111
|
35111
35111-22081 Housing, Automatic Transmission[08.1995 - 07.1998] JZS15# |
35111-22081 |
US $503.78 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[08.1995 - 07.1997] GS151,JZS15#,LS151,UZS15#..ATM |
90301-06196 |
from US $2.24 |
||
|
35159
|
35159
35159-30010 Gasket, Brake Drum[08.1995 - 07.1997] JZS15#,LS151,UZS15# |
35159-30010 |
US $13.26 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.1995 -] GS151,JZS15#,LS151..ATM |
90301-09173 |
from US $2.03 |
||
|
35394
|
35394
35394-30010 Magnet, Oil Cleaner (For Transmission)[09.1996 - 07.1997] JZS153 |
35394-30010 |
US $5.53 |
||
| replacement | |||||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[09.1996 - 07.1997] JZS153 |
35394-30011 |
from US $5.62 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[11.1995 - 09.1996] JZS153,UZS155 |
35394-30011 |
from US $5.62 |
||
|
35519D
|
35519D
35519-20020 Label, Automatic Transmission Information[08.1995 - 08.1996] JZS153,155,UZS155 |
35519-20020 |
US $6.70 |
||
| replacement | |||||
|
35519D
|
35519D
35519-30010 Label, Automatic Transmission Information[08.1995 - 08.1996] JZS153,155,UZS155 |
35519-30010 |
US $5.42 |
||
|
35519D
|
35519D
35519-30010 Label, Automatic Transmission Information[05.1997 - 08.1998] JZS15#,UZS155;UZS151,157..5FC |
35519-30010 |
US $5.42 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910260
|
9011910260
90119-10260 Bolt (For Transmission Housing & Engine Setting) |
90119-10260 |
from US $2.11 |
||
|
9011912036
|
9011912036
90119-12036 Bolt (For Transmission Housing & Case Setting) |
90119-12036 |
US $1.89 |
||
|
9011912255
|
9011912255
90119-12255 Bolt (For Transmission Housing & Case Setting) |
90119-12255 |
US $2.04 |
||
|
9046400535
|
9046400535
90464-00535 Clamp, Throttle Cable, No.1 |
90464-00535 |
US $2.15 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
