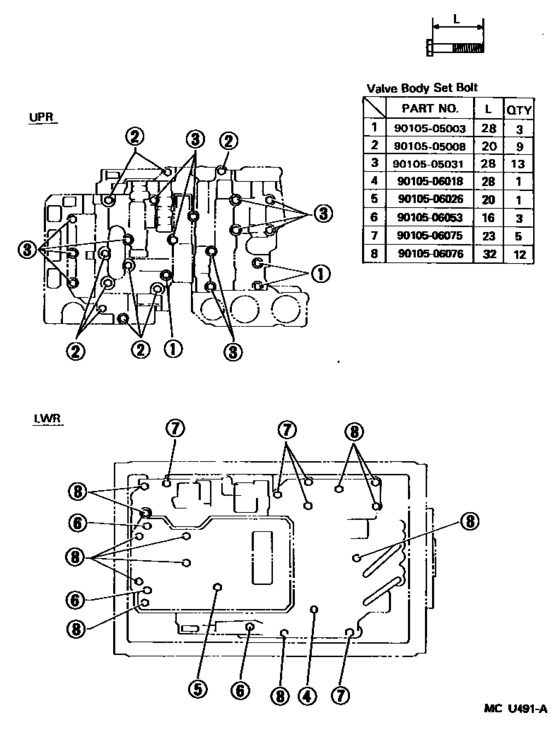

Valve Body & Oil Strainer (Atm) ([12.1995 - 09.1996] A340H (9512-9609)JZS153) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- JZS153
- grade
- ROYEX
- body
- HT
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 09.1999
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9010505003
|
9010505003
90105-05003 Bolt (For Pressure Regulator Valve No.2) |
90105-05003 |
US $1.75 |
||
| replacement | |||||
|
9010505003
|
9010505003
90119-05035
Bolt (For Pressure Regulator Valve No.2)
|
90119-05035 |
— | ||
|
9010505008
|
9010505008
90105-05008 New Genuine Part |
90105-05008 |
US $1.02 |
||
|
9010505031
|
9010505031
90105-05031 New Genuine Part |
90105-05031 |
US $0.87 |
||
|
9010506018
|
9010506018
90105-06018 Bolt (For Throttle Valve Cam Set) |
90105-06018 |
US $0.96 |
||
|
9010506026
|
9010506026
90105-06026 Bolt (For Transaxle Case Upper Cover) |
90105-06026 |
US $1.60 |
||
| replacement | |||||
|
9010506026
|
9010506026
91511-H0620 Bolt (For Transaxle Case Upper Cover) |
91511-H0620 |
US $1.97 |
||
|
9010506053
|
9010506053
90105-06053 Bolt(For Sensor Rotor Adapter) |
90105-06053 |
US $1.25 |
||
|
9010506075
|
9010506075
90105-06075 New Genuine Part |
90105-06075 |
US $1.60 |
||
| replacement | |||||
|
9010506075
|
9010506075
91511-C0622 Strainer Bolt |
91511-C0622 |
US $1.08 |
||
|
9010506076
|
9010506076
90105-06076 Bolt (For Throttle Valve Cam Set) |
90105-06076 |
US $1.31 |
||
