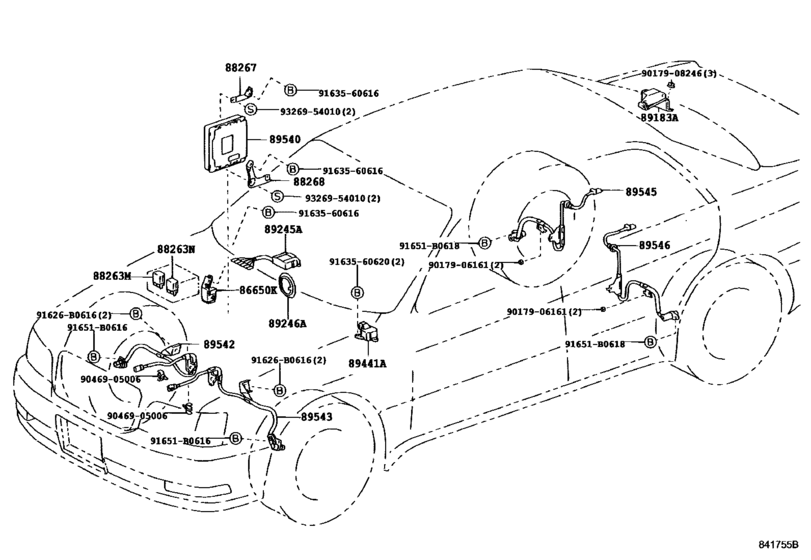

Abs & Vsc ([07.1997 - ] (9707- )JZS155..ROY,ROYG,ROYT) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 2001
- Sales region
- Japan
- Frame
- JZS155
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 08.2001
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86650K
|
86650K
86650-30190 Buzzer Assy, Skid Control[07.1997 -] JZS155,UZS15# |
86650-30190 |
US $39.60 |
||
|
88263M
|
88263M
88263-24030 Relay, Skid Control[08.1995 -] GS151,JZS15#,LS151,UZS15# |
88263-24030 |
from US $48.40 |
||
|
88263N
|
88263N
88263-24020 Relay, Skid Control[08.1995 -] GS151,JZS15#,LS151,UZS15# |
88263-24020 |
from US $45.98 |
||
|
88267
|
88267
88267-30160 Bracket, Skid Control Computer, No.1[08.1995 - 02.1996] GS151,JZS15#,LS151,UZS15# |
88267-30160 |
US $10.92 |
||
|
88267
|
88267
88267-30170 Bracket, Skid Control Computer, No.1[02.1996 - 07.1997] JZS151,155 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
88267-30170 |
US $10.92 |
||
|
88267
|
88267
88267-30180 Bracket, Skid Control Computer, No.1[07.1997 -] JZS155..ROY,ROYG,ROYT |
88267-30180 |
US $6.70 |
||
|
88268
|
88268
88268-30160 Bracket, Skid Control Computer, No.2[07.1997 -] JZS155..ROY,ROYG,ROYT |
88268-30160 |
US $12.23 |
||
|
89183A
|
89183A
89180-30040 Sensor, Yawrate[07.1997 -] JZS155..ROY,ROYG,ROYT |
89180-30040 |
US $1,616.16 |
||
|
89245A
|
89245A
89245-30020 Sensor, Steering[07.1997 - 05.1999] JZS155,UZS151,157..C,F,ROY,ROYG,ROYT |
89245-30020 |
US $315.95 |
||
|
89245A
|
89245A
89245-50010 Sensor, Steering[05.1999 -] JZS155,UZS151,157..C,F,ROY,ROYG,ROYT |
89245-50010 |
US $313.04 |
||
|
89246A
|
89246A
89246-30010 Disc, Sensor Steering[07.1997 - 05.1999] JZS155,UZS151,157..C,F,ROY,ROYG,ROYT |
89246-30010 |
US $117.94 |
||
|
89246A
|
89246A
89246-50010 Disc, Sensor Steering[05.1999 -] JZS155,UZS151,157..C,F,ROY,ROYG,ROYT |
89246-50010 |
from US $92 |
||
|
89441A
|
89441A
89441-30050 Sensor, Deceleration[07.1997 -] JZS155,UZS151,157..C,F,ROY,ROYG,ROYT |
89441-30050 |
from US $768.77 |
||
|
89540
|
89540
89540-30290
Computer Assy, Skid Control
[09.1996 - 07.1997] GS151,JZS151,155 |
89540-30290 |
— | ||
|
89540
|
89540
89541-30090
Computer Assy, Skid Control
[08.1995 - 09.1996] GS151,JZS151,155 |
89541-30090 |
— | ||
|
89540
|
89540
89541-30110
Computer Assy, Skid Control
[08.1995 - 09.1996] JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
89541-30110 |
— | ||
|
89540
|
89540
89541-30220
Computer Assy, Skid Control
[07.1997 -] JZS155..ROY,ROYG,ROYT |
89541-30220 |
— | ||
|
89542
|
89542
89542-22100
Sensor, Speed, Front Rh
[09.1996 -] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
89542-22100 |
— | ||
| replacement | |||||
|
89542
|
89542
89542-22120
Sensor, Speed, Front Rh
[09.1996 -] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
89542-22120 |
— | ||
|
89542
|
89542
89542-30190 Sensor, Speed, Front Rh[08.1995 - 09.1996] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
89542-30190 |
US $292.66 |
||
| replacement | |||||
|
89542
|
89542
89542-22120
Sensor, Speed, Front Rh
[08.1995 - 09.1996] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
89542-22120 |
— | ||
|
89543
|
89543
89543-22100
Sensor, Speed, Front Lh
[09.1996 -] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
89543-22100 |
— | ||
| replacement | |||||
|
89543
|
89543
89543-22120 Sensor, Speed, Front Lh[09.1996 -] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
89543-22120 |
US $193.58 |
||
|
89543
|
89543
89543-30190 Sensor, Speed, Front Lh[08.1995 - 09.1996] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
89543-30190 |
US $292.66 |
||
| replacement | |||||
|
89543
|
89543
89543-22120 Sensor, Speed, Front Lh[08.1995 - 09.1996] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
89543-22120 |
US $193.58 |
||
|
89545
|
89545
89545-30040 Sensor, Speed, Rear Rh[08.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
89545-30040 |
US $284.79 |
||
|
89546
|
89546
89546-30040
Sensor, Speed, Rear Lh
[08.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
89546-30040 |
— | ||
|
91626B0616
|
91626B0616
91626-B0616 BOLT WWASHER |
91626-B0616 |
US $0.87 |
||
| replacement | |||||
|
91626B0616
|
91626B0616
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.86 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9017908246
|
9017908246
90179-08246
NUT
|
90179-08246 |
— | ||
| replacement | |||||
|
9017908246
|
9017908246
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9046905006
|
9046905006
90469-05006 Clamp(For Resistive Cord) |
90469-05006 |
from US $1.42 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9163560620
|
9163560620
91635-60620
New Genuine Part
|
91635-60620 |
— | ||
| replacement | |||||
|
9163560620
|
9163560620
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.70 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $0.96 |
||
