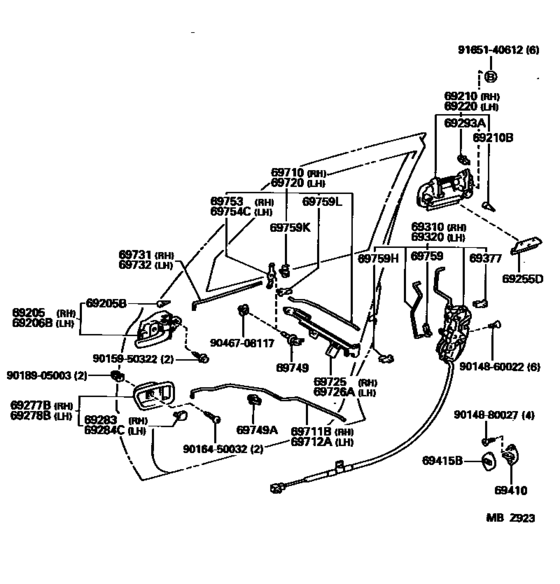

Front Door Lock & Handle ([12.1995 - 07.1997] (9512-9707)SED) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 2001
- Sales region
- Japan
- Frame
- JZS155
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 08.2001
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-30120-B0 Handle Sub-Assy, Front Door Inside, Rh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69205-30120-B0 |
US $41.06 |
||
| replacement | |||||
|
69205
|
69205
69205-30120-B1 Handle Sub-Assy, Front Door Inside, Rh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69205-30120-B1 |
US $41.06 |
||
|
69205
|
69205
69205-30120-E0 Handle Sub-Assy, Front Door Inside, Rh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69205-30120-E0 |
US $41.06 |
||
| replacement | |||||
|
69205
|
69205
69205-30120-B1 Handle Sub-Assy, Front Door Inside, Rh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69205-30120-B1 |
US $41.06 |
||
|
69205
|
69205
69205-30150-B0 Handle Sub-Assy, Front Door Inside, Rh[07.1997 - 08.1998] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69205-30150-B0 |
US $40.91 |
||
| replacement | |||||
|
69205
|
69205
69205-30150-B6 Handle Sub-Assy, Front Door Inside, Rh[07.1997 - 08.1998] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69205-30150-B6 |
US $33.20 |
||
|
69205
|
69205
69205-30150-B4 Handle Sub-Assy, Front Door Inside, Rh[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED SHADOW GRAY,TRIM1# |
69205-30150-B4 |
US $25.77 |
||
|
69205
|
69205
69205-30150-E0 Handle Sub-Assy, Front Door Inside, Rh[07.1997 - 08.1998] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69205-30150-E0 |
US $40.91 |
||
|
69205
|
69205
69205-30150-E1 Handle Sub-Assy, Front Door Inside, Rh[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED ORCHID BROWN,TRIM4# |
69205-30150-E1 |
US $25.77 |
||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[08.1995 - 08.2001] GS151,JZS15#,LS151,UZS15# |
90541-04014 |
from US $1.60 |
||
|
69206B
|
69206B
69206-30120-B0 Handle Sub-Assy, Front Door Inside, Lh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69206-30120-B0 |
US $41.06 |
||
| replacement | |||||
|
69206B
|
69206B
69206-30120-C0 Handle Sub-Assy, Front Door Inside, Lh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69206-30120-C0 |
US $41.06 |
||
|
69206B
|
69206B
69206-30120-E0 Handle Sub-Assy, Front Door Inside, Lh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69206-30120-E0 |
US $41.06 |
||
| replacement | |||||
|
69206B
|
69206B
69206-30120-C0 Handle Sub-Assy, Front Door Inside, Lh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69206-30120-C0 |
US $41.06 |
||
|
69206B
|
69206B
69206-30150-B0 Handle Sub-Assy, Front Door Inside, Lh[07.1997 - 08.1998] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69206-30150-B0 |
US $40.91 |
||
|
69206B
|
69206B
69206-30150-B4 Handle Sub-Assy, Front Door Inside, Lh[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED SHADOW GRAY,TRIM1# |
69206-30150-B4 |
US $40.91 |
||
|
69206B
|
69206B
69206-30150-E0 Handle Sub-Assy, Front Door Inside, Lh[07.1997 - 08.1998] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69206-30150-E0 |
US $40.91 |
||
|
69206B
|
69206B
69206-30150-E1 Handle Sub-Assy, Front Door Inside, Lh[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED ORCHID BROWN,TRIM4# |
69206-30150-E1 |
US $40.91 |
||
|
69210
|
69210
69210-30240 Handle Assy, Front Door, Outside Rh[12.1995 - 09.1996] GS151,JZS15#,LS151..SED |
69210-30240 |
US $115.02 |
||
|
69210
|
69210
69210-30260 Handle Assy, Front Door, Outside Rh[09.1996 - 08.2001] GS151,JZS151,153,155,LS151..SED |
69210-30260 |
US $114.14 |
||
| replacement | |||||
|
69210
|
69210
69210-30261 Handle Assy, Front Door, Outside Rh[09.1996 - 08.2001] GS151,JZS151,153,155,LS151..SED |
69210-30261 |
from US $85.80 |
||
|
69210B
|
69210B
90541-04018 Cushion(For Front Door Inside Handle)[12.1995 - 08.2001] GS151,JZS151,153,155,LS151..SED |
90541-04018 |
US $2.56 |
||
|
69220
|
69220
69220-30220 Handle Assy, Front Door Outside, Lh[12.1995 - 09.1996] GS151,JZS15#,LS151..SED |
69220-30220 |
US $115.02 |
||
|
69220
|
69220
69220-30240 Handle Assy, Front Door Outside, Lh[09.1996 - 08.2001] GS151,JZS151,153,155,LS151..SED |
69220-30240 |
US $114.14 |
||
| replacement | |||||
|
69220
|
69220
69220-30241 Handle Assy, Front Door Outside, Lh[09.1996 - 08.2001] GS151,JZS151,153,155,LS151..SED |
69220-30241 |
from US $85.80 |
||
|
69255D
|
69255D
69255-30030 Protector, Door Outside Handle[12.1995 - 08.2001] GS151,JZS151,153,155,LS151..SED |
69255-30030 |
US $3.49 |
||
|
69277B
|
69277B
69277-30150-B0 Bezel, Front Door Inside Handle, Rh[12.1995 - 08.1998] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69277-30150-B0 |
US $13.10 |
||
| replacement | |||||
|
69277B
|
69277B
69277-30150-B1 Bezel, Front Door Inside Handle, Rh[12.1995 - 08.1998] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69277-30150-B1 |
US $8.15 |
||
|
69277B
|
69277B
69277-30150-B1 Bezel, Front Door Inside Handle, Rh[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED SHADOW GRAY,TRIM1# |
69277-30150-B1 |
US $8.15 |
||
|
69277B
|
69277B
69277-30150-E0 Bezel, Front Door Inside Handle, Rh[12.1995 - 08.1998] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69277-30150-E0 |
US $13.10 |
||
|
69277B
|
69277B
69277-30150-E3 Bezel, Front Door Inside Handle, Rh[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED ORCHID BROWN,TRIM4# |
69277-30150-E3 |
US $8.15 |
||
|
69278B
|
69278B
69278-30080-B0 Bezel, Front Door Inside Handle, Lh[12.1995 - 08.1998] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69278-30080-B0 |
US $13.10 |
||
| replacement | |||||
|
69278B
|
69278B
69278-30080-B1 Bezel, Front Door Inside Handle, Lh[12.1995 - 08.1998] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69278-30080-B1 |
US $12.58 |
||
|
69278B
|
69278B
69278-30080-B1 Bezel, Front Door Inside Handle, Lh[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED SHADOW GRAY,TRIM1# |
69278-30080-B1 |
US $12.58 |
||
|
69278B
|
69278B
69278-30080-E0 Bezel, Front Door Inside Handle, Lh[12.1995 - 08.1998] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69278-30080-E0 |
US $13.10 |
||
| replacement | |||||
|
69278B
|
69278B
69278-30080-B1 Bezel, Front Door Inside Handle, Lh[12.1995 - 08.1998] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69278-30080-B1 |
US $12.58 |
||
|
69278B
|
69278B
69278-30080-E3 Bezel, Front Door Inside Handle, Lh[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED ORCHID BROWN,TRIM4# |
69278-30080-E3 |
US $8.15 |
||
|
69283
|
69283
69283-30040-B0
Plug, Front Door Inside Handle Bezel, Rh
[12.1995 - 08.1998] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69283-30040-B0 |
— | ||
| replacement | |||||
|
69283
|
69283
69283-30040-P0 Plug, Front Door Inside Handle Bezel (DK.GRAY)[12.1995 - 08.1998] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69283-30040-P0 |
US $2.27 |
||
|
69283
|
69283
69283-30040-B1 Plug, Front Door Inside Handle Bezel, Rh[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED SHADOW GRAY,TRIM1# |
69283-30040-B1 |
US $2.62 |
||
| replacement | |||||
|
69283
|
69283
69283-30040-P0 Plug, Front Door Inside Handle Bezel (DK.GRAY)[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED SHADOW GRAY,TRIM1# |
69283-30040-P0 |
US $2.27 |
||
|
69283
|
69283
69283-30040-E0 Plug, Front Door Inside Handle Bezel, Rh[12.1995 - 08.1998] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69283-30040-E0 |
US $2.48 |
||
| replacement | |||||
|
69283
|
69283
69283-30040-E1 Plug, Front Door Inside Handle Bezel, Rh[12.1995 - 08.1998] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69283-30040-E1 |
US $2.62 |
||
|
69283
|
69283
69283-30040-E1 Plug, Front Door Inside Handle Bezel, Rh[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED ORCHID BROWN,TRIM4# |
69283-30040-E1 |
US $2.62 |
||
|
69284C
|
69284C
69284-30040-B0
Plug, Front Door Inside Handle Bezel, Lh
[12.1995 - 08.1998] GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
69284-30040-B0 |
— | ||
|
69284C
|
69284C
69284-30040-B1
Plug, Front Door Inside Handle Bezel, Lh
[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED SHADOW GRAY,TRIM1# |
69284-30040-B1 |
— | ||
|
69284C
|
69284C
69284-30040-E0 Plug, Front Door Inside Handle Bezel, Lh[12.1995 - 08.1998] GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
69284-30040-E0 |
US $2.48 |
||
|
69284C
|
69284C
69284-30040-E1 Plug, Front Door Inside Handle Bezel, Lh[08.1998 - 08.2001] GS151,JZS151,153,155,LS151..SED ORCHID BROWN,TRIM4# |
69284-30040-E1 |
US $2.33 |
||
|
69293A
|
69293A
69293-12050 Snap, Front Door Outside Handle[08.1995 - 08.2001] GS151,JZS15#,LS151,UZS15# 右側 |
69293-12050 |
US $3.20 |
||
|
69293A
|
69293A
69293-12060 Snap, Front Door Outside Handle[08.1995 - 08.2001] GS151,JZS15#,LS151,UZS15# 左側 |
69293-12060 |
US $3.20 |
||
|
69310
|
69310
69030-30820 Lock Assy, Front Door, Rh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69030-30820 |
US $254.80 |
||
|
69310
|
69310
69030-30890 Lock Assy, Front Door, Rh[07.1997 - 09.1999] GS151,JZS151,153,155,LS151..SED |
69030-30890 |
US $256.26 |
||
| replacement | |||||
|
69310
|
69310
69030-3A070 Lock Assy, Front Door, Rh[07.1997 - 09.1999] GS151,JZS151,153,155,LS151..SED |
69030-3A070 |
US $256.26 |
||
|
69310
|
69310
69030-3A070 Lock Assy, Front Door, Rh[09.1999 - 08.2001] GS151,JZS15# |
69030-3A070 |
US $256.26 |
||
|
69320
|
69320
69040-30780 Lock Assy, Front Door, Lh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69040-30780 |
US $211.12 |
||
|
69320
|
69320
69040-30850 Lock Assy, Front Door, Lh[07.1997 - 09.1999] GS151,JZS151,153,155,LS151..SED |
69040-30850 |
US $215.49 |
||
| replacement | |||||
|
69320
|
69320
69040-3A030 Lock Assy, Front Door, Lh[07.1997 - 09.1999] GS151,JZS151,153,155,LS151..SED |
69040-3A030 |
US $215.49 |
||
|
69320
|
69320
69040-3A030 Lock Assy, Front Door, Lh[09.1999 - 08.2001] GS151,JZS15# |
69040-3A030 |
US $215.49 |
||
|
69377
|
69377
69759-24060 Snap(For Rear Door Lock)[12.1995 - 07.1997] GS151,JZS15#,LS151..SED GRAY |
69759-24060 |
from US $4.64 |
||
|
69377
|
69377
69759-24070 Snap(For Rear Door Inside Handle)[12.1995 - 07.1997] GS151,JZS15#,LS151..SED イエロー |
69759-24070 |
US $2.88 |
||
|
69410
|
69410
69410-50010 Plate Assy, Front Door Lock Striker[08.1995 - 08.2001] GS151,JZS15#,LS151,UZS15# |
69410-50010 |
US $12.23 |
||
|
69415B
|
69415B
69415-50010 Cover, Door Lock Striker, Front[08.1995 - 08.2001] GS151,JZS15#,LS151,UZS15# |
69415-50010 |
US $5.28 |
||
|
69710
|
69710
69710-30130 Link Assy, Front Door Open Control, Rh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69710-30130 |
US $11.79 |
||
|
69711B
|
69711B
69711-30130 Link, Front Door Lock Remote Control, Rh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69711-30130 |
US $9.03 |
||
|
69712A
|
69712A
69712-30140 Link, Front Door Lock Remote Control, Lh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69712-30140 |
US $9.03 |
||
|
69720
|
69720
69720-30050 Link Assy, Front Door Open Control, Lh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69720-30050 |
US $11.79 |
||
|
69725
|
69725
69725-30030 Protector, Front Door Inside Locking Link, Rh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69725-30030 |
US $17.33 |
||
|
69726A
|
69726A
69726-30040 Protecter, Front Door Inside Locking Link, Lh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69726-30040 |
US $17.33 |
||
|
69731
|
69731
69731-30030 Link, Front Door Inside Locking, No.1 Rh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69731-30030 |
US $9.03 |
||
|
69732
|
69732
69732-30030 Link, Front Door Inside Locking, No.1 Lh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69732-30030 |
US $9.03 |
||
|
69749
|
69749
69749-30050 Clamp, Front Door Lock Link[07.1997 - 08.2001] GS151,JZS15#,LS151,UZS15# |
69749-30050 |
US $3.20 |
||
|
69749
|
69749
69749-32030 Clamp, Front Door Lock Link[08.1995 - 07.1997] GS151,JZS15#,LS151,UZS15# |
69749-32030 |
US $1.60 |
||
|
69749A
|
69749A
69749-50010 Clamp, Front Door Lock Link[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69749-50010 |
US $2.45 |
||
|
69753
|
69753
69753-30050 Bellcrank, Door Lock Control, Rh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69753-30050 |
US $4.22 |
||
|
69754C
|
69754C
69754-30060 Bellcrank, Door Lock Control, Lh[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69754-30060 |
US $4.22 |
||
|
69759
|
69759
69759-24010 Snap(For Rear Door Inside Handle)[08.1995 - 07.1997] GS151,JZS15#,LS151,UZS15# 右側 |
69759-24010 |
from US $2.22 |
||
|
69759
|
69759
69759-24020 Snap(For Rear Door Inside Handle)[08.1995 - 07.1997] GS151,JZS15#,LS151,UZS15# 左側 |
69759-24020 |
from US $2.88 |
||
|
69759H
|
69759H
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69759-24050 |
from US $3.84 |
||
|
69759K
|
69759K
69759-24010 Snap(For Rear Door Inside Handle)[12.1995 - 07.1997] GS151,JZS15#,LS151..SED 左側 |
69759-24010 |
from US $2.22 |
||
|
69759K
|
69759K
69759-24020 Snap(For Rear Door Inside Handle)[12.1995 - 07.1997] GS151,JZS15#,LS151..SED 右側 |
69759-24020 |
from US $2.88 |
||
|
69759L
|
69759L
69759-20410 Snap, Front Door Lock Control Rod[12.1995 - 07.1997] GS151,JZS15#,LS151..SED |
69759-20410 |
US $3.93 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.74 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.44 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $1.44 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
