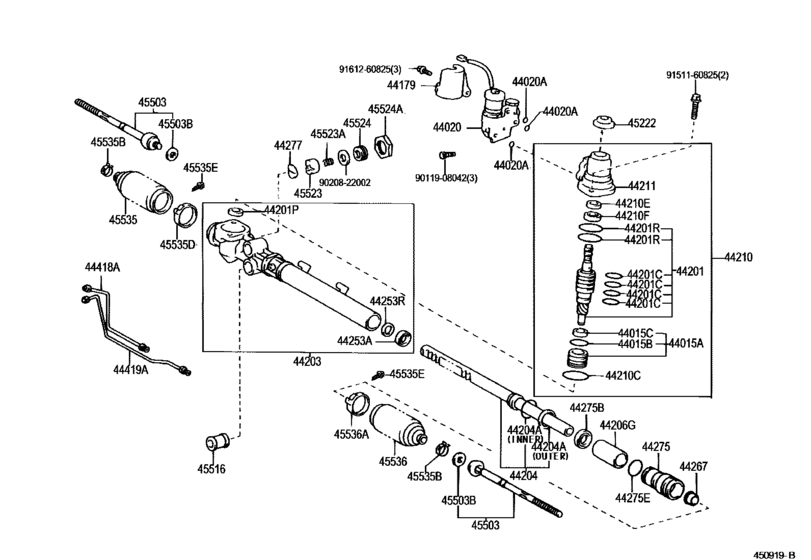

Front Steering Gear & Link ([08.1995 - ] (9508- )JZS155..ROY,ROYG,ROYT) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 2001
- Sales region
- Japan
- Frame
- JZS155
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 08.2001
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44015A
|
44015A
44015-22030
Nut Sub-Assy, Bearing Guide
[08.1995 -] JZS153,155,157,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
44015-22030 |
— | ||
|
44015B
|
44015B
90301-53181 Ring, O(For Bearing Guide Nut)[08.1995 -] JZS153,155,157,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
90301-53181 |
US $3.99 |
||
|
44015C
|
44015C
90311-30008 Seal, Oil(For Bearing Guide Nut)[08.1995 - 07.1996] JZS153,155,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
90311-30008 |
US $3.20 |
||
| replacement | |||||
|
44015C
|
44015C
90311-30016 Seal, Oil(For Bearing Guide Nut)[08.1995 - 07.1996] JZS153,155,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
90311-30016 |
from US $3.52 |
||
|
44015C
|
44015C
90311-30016 Seal, Oil(For Bearing Guide Nut)[07.1996 -] JZS153,155,157,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
90311-30016 |
from US $3.52 |
||
|
44020
|
44020
44020-22052 Valve Assy, Pressure Control W/solenoid Valve[07.1997 -] JZS155..ROY,ROYG,ROYT |
44020-22052 |
US $640.64 |
||
|
44020
|
44020
44020-30070 Valve Assy, Pressure Control W/solenoid Valve[08.1995 - 07.1997] JZS155..ROY,ROYG,ROYT |
44020-30070 |
US $639.18 |
||
|
44020A
|
44020A
96711-19014 O-Ring[08.1995 - 07.1997] JZS153,155,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
96711-19014 |
from US $2.34 |
||
|
44179
|
44179
44179-22020 Insulator, Solenoid Valve Heat[08.1995 - 07.1997] JZS155..ROY,ROYG,ROYT |
44179-22020 |
US $4.08 |
||
|
44179
|
44179
44179-22040 Insulator, Solenoid Valve Heat[07.1997 -] JZS155..ROY,ROYG,ROYT |
44179-22040 |
US $10.05 |
||
|
44201
|
44201
44201-22220 Valve Sub-Assy, Power Steering Control[07.1997 -] JZS153,155,157..ROY,ROYEX,ROYG,ROYT,SALEX |
44201-22220 |
US $294.11 |
||
|
44201
|
44201
44201-30070 Valve Sub-Assy, Power Steering Control[08.1995 - 07.1997] JZS153,155..ROY,ROYEX,ROYG,ROYT,SALEX |
44201-30070 |
US $294.11 |
||
|
44201C
|
44201C
90562-33007 Ring(For Power Steering Control Valve)[08.1995 -] GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90562-33007 |
US $1.76 |
||
|
44201P
|
44201P
90364-13005 Bearing(For Power Steering Control Valve Lower)[07.1997 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90364-13005 |
US $8.04 |
||
|
44201R
|
44201R
90562-49002 Ring(For Power Steering Control Valve)[08.1995 -] JZS153,155,157,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
90562-49002 |
US $1.75 |
||
|
44203
|
44203
44203-30080 Housing Sub-Assy, Power Steering Rack[08.1995 - 11.2000] JZS155..ROY,ROYG,ROYT |
44203-30080 |
US $524.16 |
||
|
44203
|
44203
44203-30081 Housing Sub-Assy, Power Steering Rack[11.2000 -] JZS155 |
44203-30081 |
US $524.16 |
||
|
44204
|
44204
44204-30060 Rack Sub-Assy, Power Steering[08.1995 -] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
44204-30060 |
US $221.31 |
||
|
44204A
|
44204A
90301-37007 Ring(For Rack Steering Piston)[08.1995 -] GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 内側 |
90301-37007 |
US $3.84 |
||
|
44204A
|
44204A
90562-41001 Ring(For Rack Steering Piston)[08.1995 -] GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 外側 |
90562-41001 |
from US $2.08 |
||
|
44206G
|
44206G
90561-30004 Spacer, No.1(For Power Steering Cylinder Tube)[08.1995 -] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90561-30004 |
US $23.94 |
||
|
44210
|
44210
44210-30090 Valve Assy, Power Steering Control[08.1995 - 07.1997] JZS155..ROY,ROYG,ROYT |
44210-30090 |
US $563.47 |
||
|
44210
|
44210
44210-30131 Valve Assy, Power Steering Control[07.1997 -] JZS155..ROY,ROYG,ROYT |
44210-30131 |
US $563.47 |
||
|
44210C
|
44210C
90301-62005 Ring, O(For Power Steering Control Valve)[08.1995 -] JZS153,155,157,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
90301-62005 |
US $3.49 |
||
|
44210E
|
44210E
90311-19002 Seal, Oil(For Adjuster Plug)[08.1995 - 06.1996] GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90311-19002 |
from US $3.04 |
||
|
44210E
|
44210E
90311-19013 Seal, Oil(For Power Steering Control Valve)[07.1996 -] GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90311-19013 |
US $3.20 |
||
|
44210F
|
44210F
90363-19003 Bearing(For Rear Steering Control Valve Housing)[08.1995 -] GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90363-19003 |
US $18.85 |
||
|
44211
|
44211
44211-22110 Housing, Control Valve[07.1997 -] JZS155..ROY,ROYG,ROYT |
44211-22110 |
US $193.65 |
||
|
44211
|
44211
44211-30040 Housing, Control Valve[08.1995 - 07.1997] JZS155..ROY,ROYG,ROYT |
44211-30040 |
US $193.65 |
||
|
44253A
|
44253A
90310-26018 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1995 - 04.1996] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90310-26018 |
from US $4.32 |
||
|
44253A
|
44253A
90310-26020 Seal, Oil(For Power Steering Rack Housing)[07.1996 - 03.1998] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90310-26020 |
US $2.77 |
||
| replacement | |||||
|
44253A
|
44253A
90310-26023 Seal, Oil(For Power Steering Rack Housing)[07.1996 - 03.1998] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90310-26023 |
from US $3.04 |
||
|
44253A
|
44253A
90310-26023 Seal, Oil(For Power Steering Rack Housing)[03.1998 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90310-26023 |
from US $3.04 |
||
|
44253R
|
44253R
90560-27013 Spacer, No.1(For Power Steering Cylinder Tube)[08.1995 - 08.1998] GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90560-27013 |
US $3.03 |
||
|
44267
|
44267
44267-22030 Guide, Rack End[08.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
44267-22030 |
from US $3.45 |
||
|
44275
|
44275
44275-22020
Stopper, Cylinder End
[08.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
44275-22020 |
— | ||
|
44275B
|
44275B
90310-26019 Seal, Oil, No.2(For Power Steering Cylinder Tube)[08.1995 - 04.1996] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90310-26019 |
US $3.93 |
||
| replacement | |||||
|
44275B
|
44275B
90310-26023 Seal, Oil(For Power Steering Rack Housing)[08.1995 - 04.1996] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90310-26023 |
from US $3.04 |
||
|
44275B
|
44275B
90310-26023 Seal, Oil(For Power Steering Rack Housing)[07.1996 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90310-26023 |
from US $3.04 |
||
|
44275E
|
44275E
90301-40004 Ring, O(For Rack End Guide)[08.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90301-40004 |
US $3.20 |
||
|
44277
|
44277
44277-22020 Seat, Rack Guide[08.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
44277-22020 |
from US $4.89 |
||
|
44418A
|
44418A
44418-30050 Tube, Steering Right Turn Pressure[08.1995 -] JZS155..ROY,ROYG,ROYT |
44418-30050 |
US $15.87 |
||
|
44419A
|
44419A
44419-30050 Tube, Steering Left Turn Pressure[08.1995 -] JZS155..ROY,ROYG,ROYT |
44419-30050 |
US $19.66 |
||
|
45222
|
45222
45222-22040
Cover, Steering Gear Dust
[08.1995 -] JZS153,155,157,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
45222-22040 |
— | ||
| replacement | |||||
|
45222
|
45222
45222-51010 Cover, Dust(For Power Steering Gear)[08.1995 -] JZS153,155,157,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
45222-51010 |
US $6.12 |
||
|
45503
|
45503
45503-29785 End Sub-Assy, Steering Rack[10.2000 -] GS151,JZS151,155 |
45503-29785 |
from US $99.16 |
||
|
45503
|
45503
45503-39105
End Sub-Assy, Steering Rack
[08.1995 - 10.2000] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
45503-39105 |
— | ||
| replacement | |||||
|
45503
|
45503
45503-29785 End Sub-Assy, Steering Rack[08.1995 - 10.2000] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
45503-29785 |
from US $99.16 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[08.1995 - 10.2000] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 外径＝３７ |
90214-14002 |
from US $1.33 |
||
|
45503B
|
45503B
90214-14007 Washer, Claw(For Power Steering Rack End)[10.2000 -] GS151,JZS15# 外径＝３８ |
90214-14007 |
from US $1.66 |
||
|
45516
|
45516
45516-30020 Grommet, Steering Rack Housing, No.1[08.1995 -] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
45516-30020 |
US $14.24 |
||
|
45523
|
45523
45523-22040 Guide, Rack(For Steering Gear)[08.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
45523-22040 |
US $15.72 |
||
|
45523A
|
45523A
90501-26074 Spring(For Power Steering Rack Guide)[08.1995 -] GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90501-26074 |
US $1.40 |
||
|
45524
|
45524
45524-20040 Cap, Rack Guide Spring(For Power Steering)[08.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
45524-20040 |
US $11.01 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[08.1995 -] GS151,JZS15#,LS151,UZS15# |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-30010 Boot, Steering Rack, No.1[08.1995 -] GS151,JZS15#,LS151,UZS15# |
45535-30010 |
US $19.46 |
||
|
45535B
|
45535B
90467-19012
Clip
[08.1995 - 04.1996] GS151,JZS15#,LS151,UZS151,157 |
90467-19012 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19019 Clip[08.1995 - 04.1996] GS151,JZS15#,LS151,UZS151,157 |
90467-19019 |
from US $4.41 |
||
|
45535D
|
45535D
90460-49004 Clamp(For Steering Rack Boot No.1)[12.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90460-49004 |
US $4 |
||
|
45536
|
45536
45535-30010 Boot, Steering Rack, No.1[08.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
45535-30010 |
US $19.46 |
||
|
45536A
|
45536A
90460-49004 Clamp(For Steering Rack Boot No.1)[12.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
90460-49004 |
US $4 |
||
|
9011908042
|
9011908042
90119-08042 Bolt(For Power Steering Pressure Control Valve) |
90119-08042 |
US $1.40 |
||
|
9020822002
|
9020822002
90208-22002 LEXWASHERCONE SPRG |
90208-22002 |
US $1.75 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
9161260825
|
9161260825
91612-60825 Bolt(For Clutch Release Cylinder Setting) |
91612-60825 |
US $1.75 |
||
| replacement | |||||
|
9161260825
|
9161260825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
