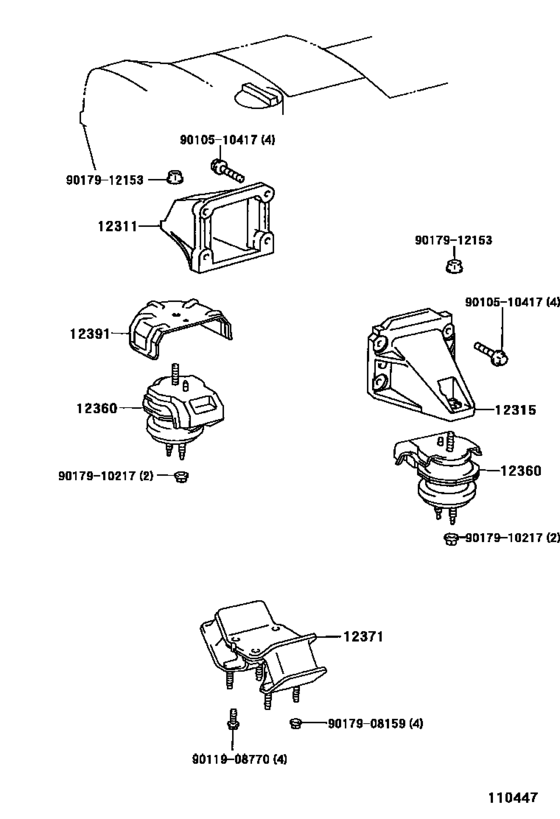

Mounting ([08.1995 - ] (9508- )1JZGE,2JZGE..JZS151,155..ROY,ROYEX,RO YG,ROYT,SALEX) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 2001
- Sales region
- Japan
- Frame
- JZS155
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 08.2001
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-46060 Bracket, Engine Mounting, Front No.1 Rh[08.1995 - 09.1996] 1JZGE,2JZGE..JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
12311-46060 |
US $70.91 |
||
|
12311
|
12311
12311-46110
Bracket, Engine Mounting, Front No.1 Rh
[09.1996 - 09.1999] 1JZGE,2JZGE..JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
12311-46110 |
— | ||
|
12315
|
12315
12315-46060
Bracket, Engine Mounting, Front No.1 Lh
[09.1996 - 09.1999] 1JZGE,2JZGE..JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
12315-46060 |
— | ||
|
12315
|
12315
12315-46080
Bracket, Engine Mounting, Front No.1 Lh
[08.1995 - 09.1996] 1JZGE,2JZGE..JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
12315-46080 |
— | ||
|
12360
|
12360
12360-46121
Insulator Assy, Engine Mounting, Front
[08.1995 - 01.1999] 1JZGE,2JZGE..JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
12360-46121 |
— | ||
| replacement | |||||
|
12360
|
12360
12360-46122 Insulator Assy, Engine Mounting, Front[08.1995 - 01.1999] 1JZGE,2JZGE..JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
12360-46122 |
from US $181.12 |
||
|
12360
|
12360
12360-46122 Insulator Assy, Engine Mounting, Front[01.1999 - 09.1999] 1JZGE,2JZGE..JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
12360-46122 |
from US $181.12 |
||
|
12371
|
12371
12371-46140 Insulator, Engine Mounting, Rear No.1[08.1995 -] 1JZGE,2JZGE..JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
12371-46140 |
US $86.31 |
||
|
12391
|
12391
12391-46020 Insulator, Engine Mounting Front, Heat, Rh[08.1995 - 09.1999] 2JZGE..JZS155 |
12391-46020 |
US $20.44 |
||
|
12391
|
12391
12391-46040 Insulator, Engine Mounting Front, Heat, Rh[03.2001 -] 2JZGE..JZS155 |
12391-46040 |
US $21.14 |
||
|
9010510417
|
9010510417
90105-10417 Bolt (For Front Differential Carrier Cover Setting) |
90105-10417 |
US $2.72 |
||
|
9011908770
|
9011908770
90119-08770 Bolt, W/washer(For Repair Actuator Set) |
90119-08770 |
US $2.40 |
||
|
9017908159
|
9017908159
90179-08159 Nut, Cap(For Cylinder Head Cover) |
90179-08159 |
US $2.40 |
||
|
9017910217
|
9017910217
90179-10217 New Genuine Part |
90179-10217 |
US $3.68 |
||
|
9017912153
|
9017912153
90179-12153 New Genuine Part |
90179-12153 |
US $3.52 |
||
