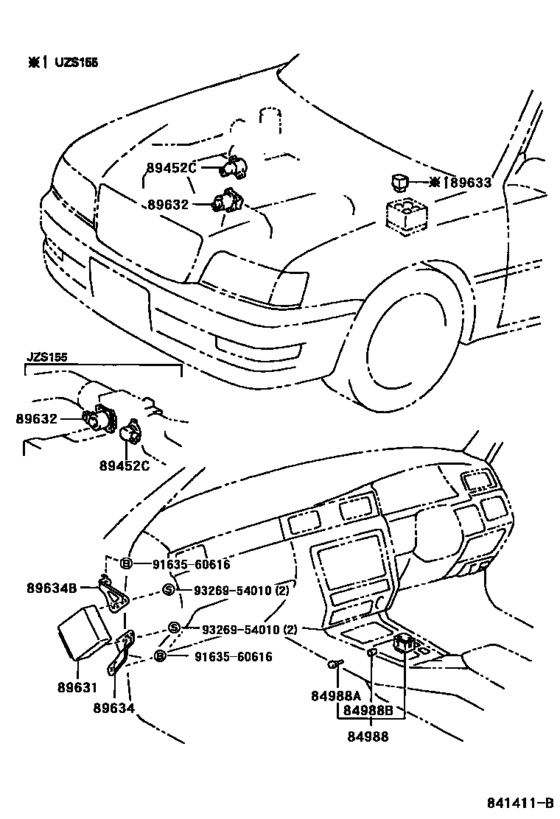

Traction Control ([08.1995 - ] (9508- )JZS151,155,LS151,UZS15#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 2001
- Sales region
- Japan
- Frame
- JZS155
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 08.2001
- Gear Shift Type
- 4FC
- Body Shape
- WIB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84988
|
84988
84988-22010 Switch, Traction Control[08.1995 - 07.1997] JZS151,155,LS151,UZS151,157 |
84988-22010 |
US $39.75 |
||
|
84988A
|
84988A
84999-10310 Bulb, Air Conditioner Control[08.1995 - 11.1999] JZS151,155,LS151,UZS151,157 １４Ｖ ０．９１Ｗ |
84999-10310 |
from US $2.96 |
||
|
84988A
|
84988A
90010-01039 Blub, Center Cluster Module Switch[11.1999 -] JZS151,155 １４Ｖ０．９１Ｗ，グリーン キャップ付き |
90010-01039 |
from US $3.43 |
||
|
84988B
|
84988B
84998-10740 Cap, Fog Lamp Bulb[08.1995 - 11.1999] JZS151,155,LS151,UZS151,157 |
84998-10740 |
US $3.20 |
||
|
89452C
|
89452C
89452-22090 Sensor, Throttle Position[08.1995 - 07.1997] JZS151,155 |
89452-22090 |
from US $138.98 |
||
|
89631
|
89631
89631-50020 Computer, Traction Control[08.1995 - 10.1996] JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
89631-50020 |
US $1,383.20 |
||
|
89632
|
89632
89632-50020
Motor, Traction Throttle Valve
[08.1995 - 07.1997] JZS155,UZS15# |
89632-50020 |
— | ||
|
89634
|
89634
89634-30100 Bracket, Traction Control Computer[08.1995 - 10.1996] JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
89634-30100 |
US $10.77 |
||
|
89634B
|
89634B
89634-30120 Bracket, Traction Control Computer, No.2[08.1995 - 10.1996] JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX |
89634-30120 |
US $9.03 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $0.96 |
||
