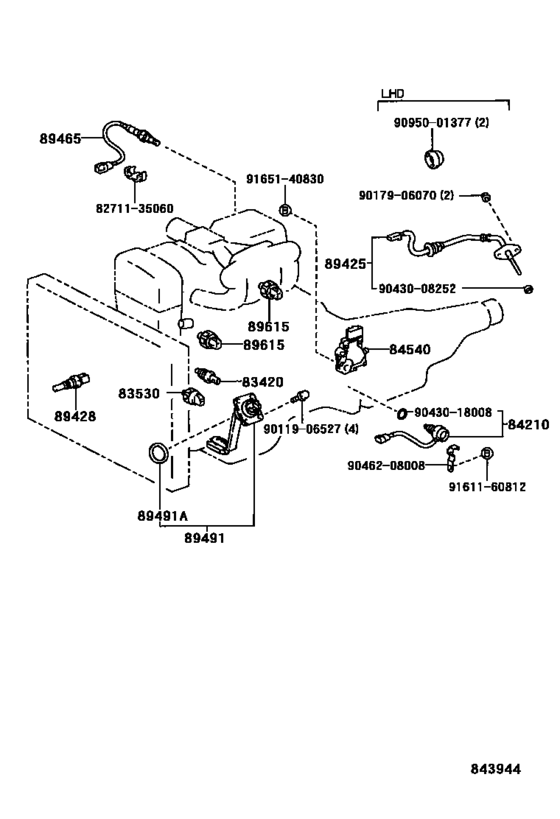

Switch & Relay & Computer ([12.1995 - ] ENGINE & TRANSMISSION (9512- )JZS155) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- JZS155
- grade
- SPSAL
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 12.1995
- To
- 09.1999
- Gear Shift Type
- 5F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[12.1995 -] GS151,JZS155 |
83420-16040 |
from US $30.71 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.1998 -] GS151,JZS155 DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] GS151,JZS155 DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.1998 -] GS151,JZS155 DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[12.1995 - 12.1997] GS151,JZS155 |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.1995 - 12.1997] GS151,JZS155 |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.1997 - 03.1998] JZS155 |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-30060 Switch Assy, Back-Up Lamp[12.1995 -] JZS155..5F |
84210-30060 |
from US $38.08 |
||
|
89428
|
89428
89428-24010 Sensor, Water Temperature[12.1995 -] JZS155 |
89428-24010 |
from US $56.24 |
||
|
89491
|
89491
89491-30010
Sensor, Engine Oil Level
[12.1995 - 09.1999] JZS155..LHD |
89491-30010 |
— | ||
|
89491A
|
89491A
90430-27001 Gasket, Engine Oil Level Sensor[12.1995 - 09.1999] JZS155..LHD |
90430-27001 |
from US $1.09 |
||
|
89615
|
89615
89615-22030 Sensor, Knock Control[12.1995 - 09.1996] JZS155..LHD MATSUSHITA |
89615-22030 |
from US $139.11 |
||
|
89615
|
89615
89615-22040 Sensor, Knock Control[12.1995 - 09.1996] JZS155..LHD DENSO |
89615-22040 |
from US $132.91 |
||
|
8271135060
|
8271135060
82711-35060 Clamp, Wiring Harness |
82711-35060 |
from US $3.84 |
||
|
9011906527
|
9011906527
90119-06527 BOLT WWASHER |
90119-06527 |
from US $0.88 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9095001377
|
9095001377
90950-01377 New Genuine Part |
90950-01377 |
US $4.66 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
