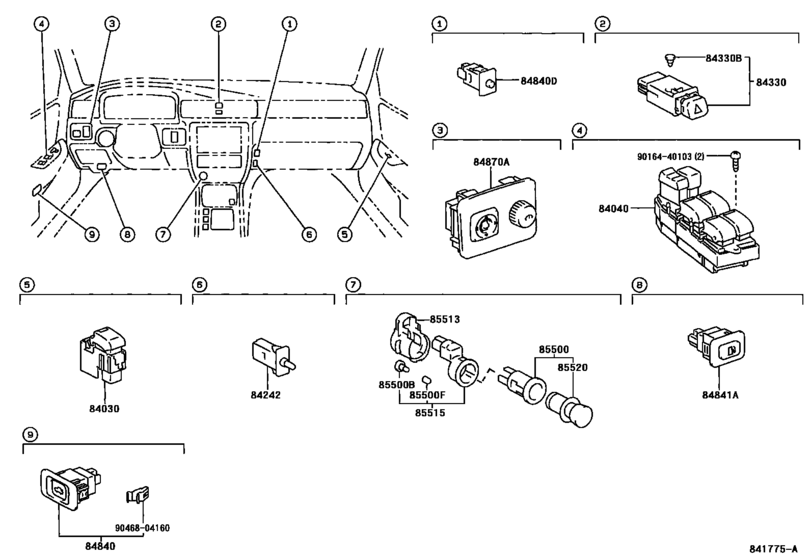

Switch & Relay & Computer ([12.1995 - ] INSTRUMENT PANEL SW (9512- )LHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- JZS155
- grade
- SPSAL
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 12.1995
- To
- 09.1999
- Gear Shift Type
- 5F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84030
|
84030
84030-30010 Switch Assy,multiplex Network[12.1995 -] GS151,JZS155 |
84030-30010 |
US $65.67 |
||
|
84040
|
84040
84040-30020 Master Switch Assy,multiplex NetworkMULTIPLEX NETWORK [12.1995 -] JZS155..LHD |
84040-30020 |
US $320.32 |
||
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[12.1995 -] GS151,JZS155 |
84242-20030 |
US $18.35 |
||
|
84330
|
84330
84332-30270 Switch Assy, Hazard Warning Signal[12.1995 -] GS151,JZS155 |
84332-30270 |
US $57.51 |
||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[12.1995 -] GS151,JZS155 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84840
|
84840
84840-30160-B0 Switch Assy, Luggage Compartment Door Opening[12.1995 - 08.2001] JZS155..LHD DK.BLUE GRAY,TRIM1# |
84840-30160-B0 |
US $49.50 |
||
| replacement | |||||
|
84840
|
84840
84840-30140-C0 Switch Assy, Luggage Compartment Door Opening[12.1995 - 08.2001] JZS155..LHD DK.BLUE GRAY,TRIM1# |
84840-30140-C0 |
US $46.51 |
||
|
84840
|
84840
84840-30160-E0 Switch Assy, Luggage Compartment Door Opening[12.1995 - 08.2001] JZS155..LHD ANTELOPE,TRIM4# |
84840-30160-E0 |
US $49.50 |
||
| replacement | |||||
|
84840
|
84840
84840-30140-C0 Switch Assy, Luggage Compartment Door Opening[12.1995 - 08.2001] JZS155..LHD ANTELOPE,TRIM4# |
84840-30140-C0 |
US $46.51 |
||
|
84840D
|
84840D
84840-30170 Switch Assy, Luggage Door Opening[12.1995 -] GS151,JZS155 |
84840-30170 |
US $41.93 |
||
|
84841A
|
84841A
84841-30040-B0 Switch, Fuel Lid Opener[12.1995 - 08.2001] GS151,JZS155 DK.BLUE GRAY,TRIM1# |
84841-30040-B0 |
US $49.50 |
||
| replacement | |||||
|
84841A
|
84841A
84841-30040-C0 Switch, Fuel Lid Opener[12.1995 - 08.2001] GS151,JZS155 DK.BLUE GRAY,TRIM1# |
84841-30040-C0 |
US $49.65 |
||
|
84841A
|
84841A
84841-30040-E1 Switch, Fuel Lid Opener[12.1995 - 08.2001] GS151,JZS155 ANTELOPE,TRIM4# |
84841-30040-E1 |
US $49.50 |
||
| replacement | |||||
|
84841A
|
84841A
84841-30040-C0 Switch, Fuel Lid Opener[12.1995 - 08.2001] GS151,JZS155 ANTELOPE,TRIM4# |
84841-30040-C0 |
US $49.65 |
||
|
84870A
|
84870A
84870-30200-B0 Switch Assy, Outer MirrorOUTER MIRROR [12.1995 - 08.2001] JZS155..LHD DK.BLUE GRAY,TRIM1# |
84870-30200-B0 |
US $94.64 |
||
|
84870A
|
84870A
84870-30200-E0 Switch Assy, Outer MirrorOUTER MIRROR [12.1995 - 08.2001] JZS155..LHD ANTELOPE,TRIM4# |
84870-30200-E0 |
US $94.64 |
||
|
85500
|
85500
85500-17040
Lighter Assy, Cigarette
[12.1995 - 08.2001] GS151,JZS155 |
85500-17040 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-17060 Lighter Assy, Cigarette[12.1995 - 08.2001] GS151,JZS155 |
85500-17060 |
from US $34.24 |
||
|
85500B
|
85500B
84999-10250 Bulb, Key Cylinder Lamp[12.1995 -] GS151,JZS155 14V 1.4W |
84999-10250 |
from US $4.82 |
||
|
85500F
|
85500F
85533-30090
Cap, Cigarette Lighter Bulb
[12.1995 -] GS151,JZS155 |
85533-30090 |
— | ||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[12.1995 - 08.2001] GS151,JZS155 |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-30040 Stay, Cigarette Lighter Bezel[12.1995 - 08.2001] GS151,JZS155 |
85515-30040 |
US $14.71 |
||
|
85520
|
85520
85520-20080 Knob And Element Assy, Cigarette Lighter[12.1995 - 08.2001] GS151,JZS155 |
85520-20080 |
US $31.45 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.96 |
||
