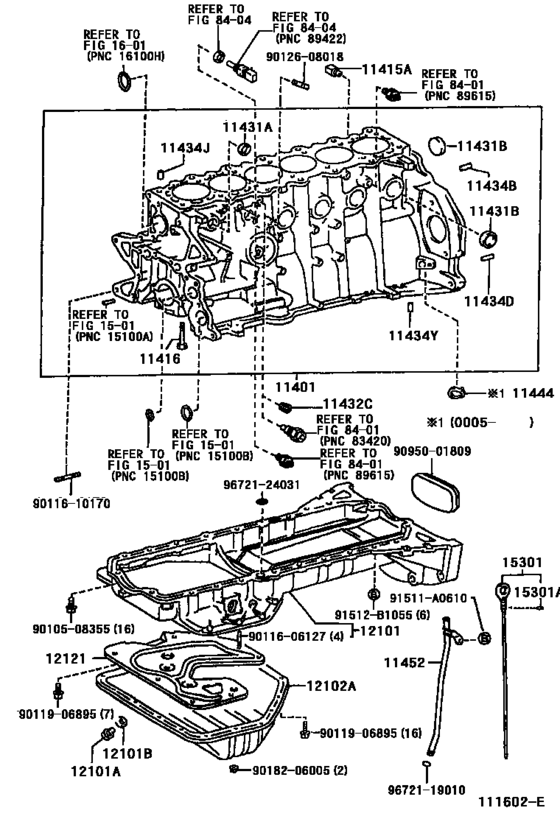

Cylinder Block ([09.1999 - 08.2001] (9909-0108)1JZGE..JZS171) Diagram Toyota CROWN/ MAJESTA
- Year
- 2000 - 2001
- Sales region
- Japan
- Frame
- JZS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2000
- To
- 08.2001
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-49648 Block Sub-Assy, Cylinder[06.2000 - 03.2001] 1JZGE..JZS171 |
11401-49648 |
US $2,999.36 |
||
| replacement | |||||
|
11401
|
11401
11401-49726 Block Sub-Assy, Cylinder[06.2000 - 03.2001] 1JZGE..JZS171 |
11401-49726 |
US $3,013.92 |
||
|
11401
|
11401
11401-49725 Block Sub-Assy, Cylinder[03.2001 - 08.2001] 1JZGE..JZS171 |
11401-49725 |
US $3,013.92 |
||
| replacement | |||||
|
11401
|
11401
11401-49726 Block Sub-Assy, Cylinder[03.2001 - 08.2001] 1JZGE..JZS171 |
11401-49726 |
US $3,013.92 |
||
|
11415A
|
11415A
90910-09102 Plug, Water Drain Cock(For Cylinder Block)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90910-09102 |
US $8.21 |
||
|
11416
|
11416
90910-02104 Bolt(For Crankshaft Bearing Cap Set)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90910-02104 |
US $5.56 |
||
|
11431A
|
11431A
96411-42500 Plug, Tight, No.1[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
96411-42500 |
from US $2.95 |
||
|
11431B
|
11431B
96411-43500 Plug, Tight, No.1[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
96411-43500 |
from US $3.48 |
||
|
11432C
|
11432C
90344-53015 Plug, W/head Taper Screw, No.1[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 |
90344-53015 |
US $5.38 |
||
|
11434B
|
11434B
90250-10192 Pin, Straight(For Timing Gear Cover Set)[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# 長さ＝２２，外径＝１０ |
90250-10192 |
from US $0.97 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[09.1999 - 08.2001] 1UZFE..UZS17# 長さ＝１４，外径＝６; 1JZGE,2JZ#..JZS17# 長さ＝１４，外径＝６ |
90250-06003 |
US $1.61 |
||
|
11434J
|
11434J
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90253-14003 |
from US $1.27 |
||
|
11434Y
|
11434Y
90250-10192 Pin, Straight(For Timing Gear Cover Set)[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
90250-10192 |
from US $0.97 |
||
|
11444
|
11444
11444-46010 Plug, Hole[05.2000 - 03.2001] 1JZGE..JZS171 |
11444-46010 |
US $5.24 |
||
|
11452
|
11452
11452-46010
Guide, Oil Level Gage
[09.1999 - 08.2001] 1JZGE,2JZFSE..JZS171,175,177 |
11452-46010 |
— | ||
|
12101
|
12101
12111-46062 Pan Sub-Assy, Oil[09.1999 - 08.2001] 1JZGE,2JZFSE..JZS171,175,177 |
12111-46062 |
US $767.31 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90341-12012 |
from US $2.87 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[09.1999 - 08.2001] 1UZFE..UZS17#; 1JZ#,2JZ#..JZS17# |
90430-12031 |
from US $0.82 |
||
|
12102A
|
12102A
12102-46040 Pan Sub-Assy, Oil, No.2[09.1999 - 08.2001] 1JZ#,2JZFSE..JZS171,175,177 |
12102-46040 |
from US $148.64 |
||
|
12121
|
12121
12121-46010 Plate, Oil Pan Baffle, No.1[09.1999 - 08.2001] 1JZ#,2JZFSE..JZS171,175,177 |
12121-46010 |
US $68.04 |
||
|
15301
|
15301
15301-46023 Gage Sub-Assy, Oil Level[09.1999 - 08.2001] 1JZGE,2JZFSE..JZS171,175,177 |
15301-46023 |
from US $12.60 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[09.1999 - 08.2001] 1JZ#,2JZFSE..JZS171,175,177 |
96741-19005 |
from US $2.36 |
||
|
91511A0610
|
91511A0610
91511-A0610
Bolt (For Propeller Shaft Heat Insulator)
|
91511-A0610 |
— | ||
| replacement | |||||
|
91511A0610
|
91511A0610
91531-A0610 Bolt (For Propeller Shaft Heat Insulator) |
91531-A0610 |
US $0.96 |
||
|
91512B1055
|
91512B1055
91512-B1055 BOLT FLANGE |
91512-B1055 |
from US $3.62 |
||
|
9010508355
|
9010508355
90105-08355
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
90105-08355 |
— | ||
| replacement | |||||
|
9010508355
|
9010508355
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.91 |
||
|
9011610170
|
9011610170
90116-10170 BOLT STUD |
90116-10170 |
US $7.35 |
||
|
9011906895
|
9011906895
90119-06895
BOLT WWASHER
|
90119-06895 |
— | ||
| replacement | |||||
|
9011906895
|
9011906895
90119-06755 BOLT WWASHER |
90119-06755 |
US $1.25 |
||
|
9012608018
|
9012608018
90126-08018 Bolt, Stud(For Egr Valve) |
90126-08018 |
US $7.16 |
||
|
9018206005
|
9018206005
90182-06005 NUT W-WASHER |
90182-06005 |
US $1.61 |
||
|
9095001809
|
9095001809
90950-01809 Plug, Semi Circular(For Chain Cover No.2) |
90950-01809 |
from US $9.32 |
||
|
9672119010
|
9672119010
96721-19010 Ring, O(For Oil Level Gage Guide) |
96721-19010 |
from US $1.56 |
||
|
9672124031
|
9672124031
96721-24031 Ring, O |
96721-24031 |
from US $2.19 |
||
| replacement | |||||
|
9672124031
|
9672124031
90301-A0032 Ring, O(For Oil Strainer) |
90301-A0032 |
US $7.32 |
||
